Reitz MSE 025-016030-00

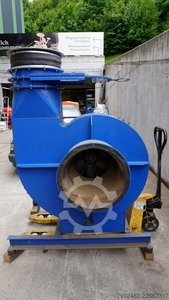

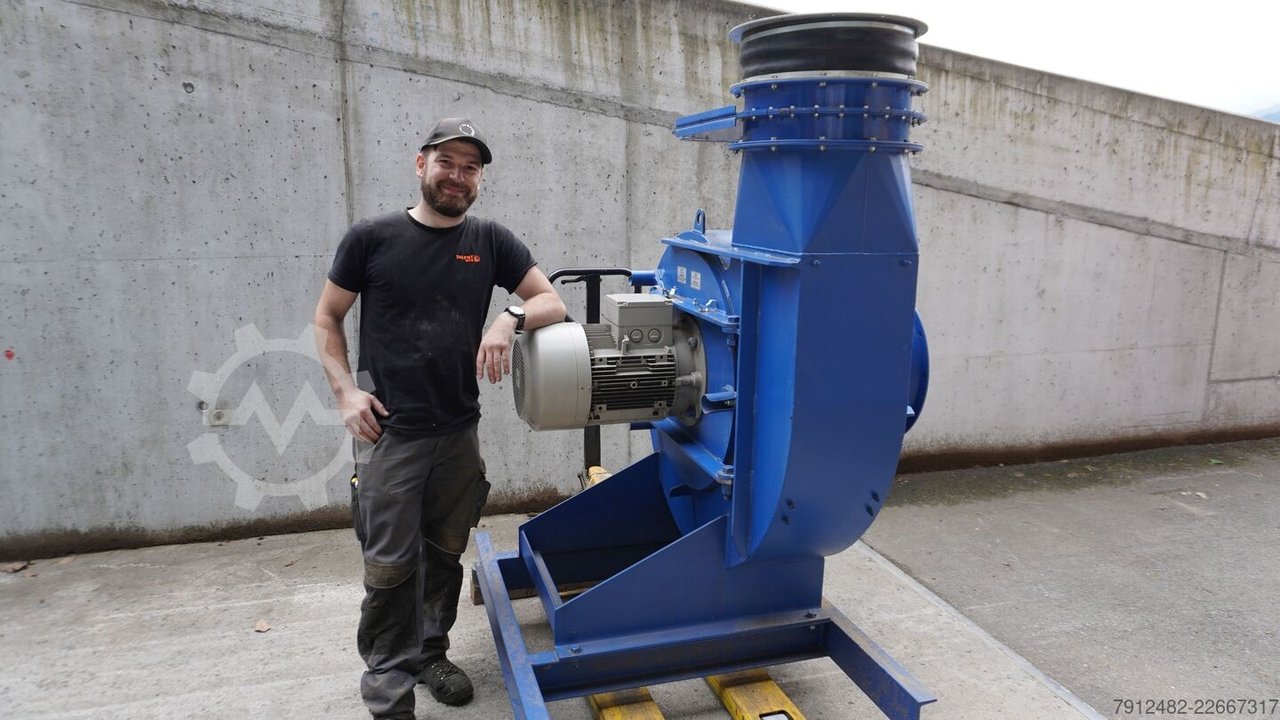

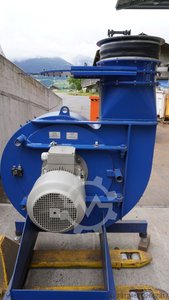

Move grain, pellets, biomass or other dry bulk material pneumatically with a heavy-duty industrial fan, where lightweight extraction fans are not enough. This Reitz Umwelttechnik fan ran pneumatic material conveying at our own facility and is fully functional. Approx. 9,600-10,000 m³/h, direct drive, 700 kg welded steel construction on a mobile, liftable base frame. Nameplate photos and technical documentation available, inspection welcome. Only one unit available - once sold, it's gone. Pickup and transport slots are limited; loading a 700 kg unit must be scheduled. Best for: pneumatic conveying of dry bulk material, high-volume industrial ventilation and process air where lightweight extraction fans stall. Not suitable for: wet or sticky material, air above 80°C, or applications requiring formal ATEX certification unless independently verified. What the specs mean in practice:
• 160-167 m³/min (~9,600-10,000 m³/h) - moves enough air to convey material through piping, not just extract dust
• 223-250 daPa total pressure increase - keeps material moving over distance and through bends
• Direct-driven 24.5/28 kW motor - no belts to tension, align or replace
• 700 kg welded steel housing, backward-curved impeller - built for continuous industrial duty
• Mobile, liftable base frame - can be forklifted or craned into position
• Max. 80°C, up to 3100 rpm - covers ambient and moderately warm process air
What you get: the complete fan unit with backward-curved impeller, motorenmaier 24.5/28 kW three-phase motor (IP55, 400/690V) and welded base frame, ready to connect. Note: the safety plate references explosion-protection instructions - whether formal ATEX certification applies should be independently checked if relevant to your use. Technical data (from nameplate):
Manufacturer: Reitz Umwelttechnik | Type: MSE 025-016030-00 | Serial/Year: 567856 / 2009
Volume flow: 160-167 m³/min (~9,600-10,000 m³/h) | Total pressure increase: 223-250 daPa | Shaft power: 8.7-11 kW
Speed: 2915-2925 rpm (max. 3100) | Max. temperature: 80°C

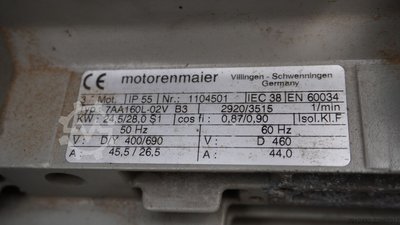

Drive motor: motorenmaier gmbh, Type 7AA160L-02V, 24.5/28kW, 2-pole, IP55, 400/690V | Weight: 700 kg
Condition: Used, functional, used for pneumatic material conveying. Location: Stanserstrasse 50, 6064 Kerns (self pick-up, transport by arrangement). Buy with confidence: built 2009 (serial 567856) from a known German manufacturer, used at our own facility, fully functional with a running test possible before pickup. Nameplate photos and technical documentation available; in-person inspection in Kerns OW by appointment. You may verify identity, condition and operation before paying. Why buy now: single used machine, not stock - once sold, this configuration is gone; a 700 kg fan on a base frame is not something we restock. First-buyer bonus: free loading with our forklift at no extra cost. Valid until Sept 9, 2026, or until sold. Action: send your intended application, required capacity and destination - we'll confirm suitability and a transport estimate.
