SCHUTTE AF 32-8 AC Multispindle automatic lathe

SCHUTTE AF 32-8 AC Multispindle automatic lathe
Verified seller
Price on request
View price
Manufacturer
SCHUTTE
Model
AF 32-8 AC
Year
1985
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P240410156
Buy this machine
Language
Language
Многошпинделен автоматичен струг SCHUTTE AF 32-8 AC
Multivřetenový automatický soustruh SCHUTTE AF 32-8 AC
SCHUTTE AF 32-8 AC Multispindlet automatisk drejebænk
SCHUTTE AF 32-8 AC Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων SCHUTTE AF 32-8 AC
SCHUTTE AF 32-8 AC Multispindle automatic lathe
Torno multihusillos automático SCHUTTE AF 32-8 AC
Tour multibroche SCHUTTE AF 32-8 AC
Viševreteni automatski strug SCHUTTE AF 32-8 AC
SCHUTTE AF 32-8 AC Többorsós automata eszterga
Tornio multimandrino SCHUTTE AF 32-8 AC
Daugialypės automatinės tekinimo staklės SCHUTTE AF 32-8 AC
SCHUTTE AF 32-8 AC Meerassige automatische draaibank
Wielowrzecionowy automat tokarski SCHUTTE AF 32-8 AC
Torno automático multifuso SCHUTTE AF 32-8 AC
Strung automat cu mai multe arbori SCHUTTE AF 32-8 AC
SCHUTTE AF 32-8 AC Многошпиндельный токарный станок
Automatski strug sa više vretena SCHUTTE AF 32-8 AC
SCHUTTE AF 32-8 AC Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı SCHUTTE AF 32-8 AC
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
32 mm
Nbr of spindles
8
Max. length
125 mm
Type of CNC
Spindle speed
3150 rpm
Spindle power
22 kW
-------------------
Length x width x height
4130.0
× 1588.0
× 2250.0
Weight
11200 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This Schütte AF 32-8 AC is a robust multispindle automatic lathe designed for efficient machining operations. Manufactured in 1985, it features 8 spindles capable of handling bar diameters up to 32 mm. The machine supports bar feed lengths of up to 125 mm as standard, with special configurations allowing up to 315 mm. Its longitudinal slide travel includes a total travel of 125 mm with a working travel of 100 mm under normal conditions, and special configurations offer 160 mm total and 125 mm working travel. The cross slides provide precise movements with upper, central upper, central lower, and lower slides offering total/working travels of 40/25 mm, 40/25 mm, 40/25 mm, and 50/30 mm respectively.
The spindle speed ranges from 450 to 3150 rpm in range I and 200 to 1400 rpm in range II, powered by a 22 kW drive motor running at 1465 rpm. Working times vary from 0.63 to 200 seconds depending on the mode, with idle times between 1.0 and 2.5 seconds depending on indexing angles. The machine includes a threading device located in the 7° position and a pick-up device in the 8° position. It comes equipped with a hydraulic box and AC motors.

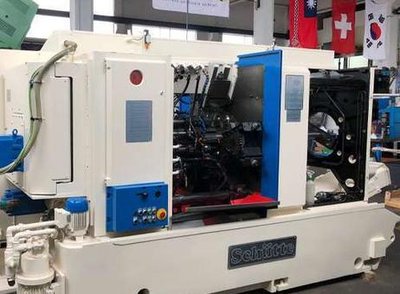

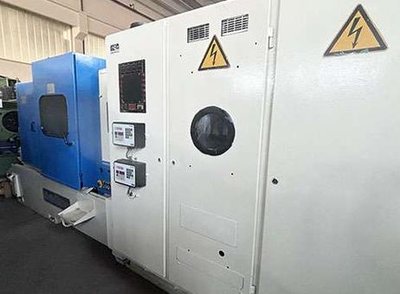

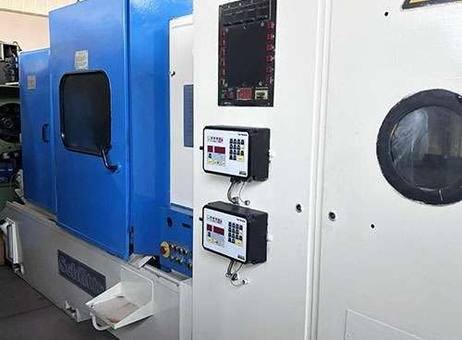

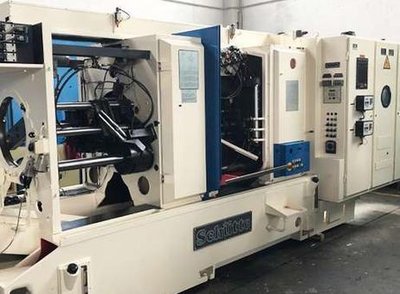

The lathe is mounted on a white base displaying the Schütte brand name and features blue and white panels with two digital control panels and a larger central control panel for operation. Safety is addressed with visible high voltage warning signs on the white panel. The machine's internal components, including hydraulic and mechanical parts, spindles, shafts, and tooling areas with multiple hoses and coolant nozzles, appear clean, well-maintained, and free of visible damage or corrosion. The overall structure is intact and the surfaces are clean, indicating good upkeep. The machine's dimensions are approximately 4130 mm in length, 1588 mm in width, and 2250 mm in height, with a total weight of 11,200 kg. Various tool holders and accessories are included, and the total length with tubes and stand is 6516 mm.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
8 spindles
Bar size diameter 32 mm
Bar feed standard/special up to 125/315 mm
Longitudin. slide travel (tot. Travel/working travel) normal 125/100 mm, special 160/125 mm
Cross slides travel (tot. Travel/working travel): Upper slide 40/25 mm, Central upper slide 40/25 mm, Central lower slide 40/25, Lower slide 50/30 mm
N.49 spindles speed
Working times min.-max 0,63-200 sec, standard 1,12-125 sec, reduced 0,63-71 sec, Increased 1,8-200 sec
Idle times: with indexing 45 ° 1,0-1,8 sec, with indexing 90 ° 1,4-2,5 sec
Spindle speed: range I 450-3150 rpm, range II 200-1400 rpm
Drive motor power 22 kw
Drive motor speed 1465 rpm
Pick up in 8° position. Threading device in 7° pos. Hydraulic box. A.C. motors. Tubes and stand. Various tool-holders and accessories. Length with tubes/stand 6516 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2013
Offers online
98
Last activity
May 6, 2026
ALMA SRL
Verified seller
ALMA SRL is a distinguished Italian company renowned for its innovative solutions in the field of industrial automation and technology. With a commitment to excellence and a passion for engineering, ALMA has established itself as a leader in providing cutting-edge machinery and systems that enhance productivity and efficiency across various sectors. Founded with the vision of transforming traditional manufacturing processes, ALMA SRL specializes in the design and production of advanced equipment tailored to meet the unique needs of its clients. Their extensive product range includes state-of-the-art cutting systems, automation solutions, and software applications that streamline operations and optimize performance. What sets ALMA apart is its unwavering dedication to quality and customer satisfaction. The company prides itself on its ability to deliver customized solutions that not only meet but exceed client expectations. With a team of highly skilled professionals and a robust research and development department, ALMA continuously pushes the boundaries of technology to provide innovative solutions that drive success. As a trusted partner in the industrial sector, ALMA SRL is committed to fostering long-term relationships with its clients, ensuring they receive the support and expertise needed to thrive in a competitive market. Whether you are looking to enhance your production capabilities or implement the latest automation technologies, ALMA SRL is your go-to partner for excellence in industrial solutions.
Seller's description
8 spindles
Bar size diameter 32 mm
Bar feed standard/special up to 125/315 mm
Longitudin. slide travel (tot. Travel/working travel) normal 125/100 mm, special 160/125 mm
Cross slides travel (tot. Travel/working travel): Upper slide 40/25 mm, Central upper slide 40/25 mm, Central lower slide 40/25, Lower slide 50/30 mm
N.49 spindles speed
Working times min.-max 0,63-200 sec, standard 1,12-125 sec, reduced 0,63-71 sec, Increased 1,8-200 sec
Idle times: with indexing 45 ° 1,0-1,8 sec, with indexing 90 ° 1,4-2,5 sec
Spindle speed: range I 450-3150 rpm, range II 200-1400 rpm
Drive motor power 22 kw
Drive motor speed 1465 rpm
Pick up in 8° position. Threading device in 7° pos. Hydraulic box. A.C. motors. Tubes and stand. Various tool-holders and accessories. Length with tubes/stand 6516 mm
