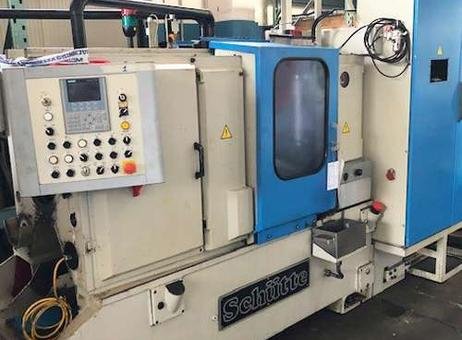

SCHUTTE SF20-6 Multispindle automatic lathe

SCHUTTE SF20-6 Multispindle automatic lathe
Verified seller
Price on request
View price
Manufacturer
SCHUTTE
Model
SF20-6
Year
1981
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P240326306
Buy this machine
Language
Language
Многошпинделен автоматичен струг SCHUTTE SF20-6
Multivřetenový automatický soustruh SCHUTTE SF20-6
SCHUTTE SF20-6 Multispindlet automatisk drejebænk
SCHUTTE SF20-6 Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων SCHUTTE SF20-6
SCHUTTE SF20-6 Multispindle automatic lathe
Torno multihusillos automático SCHUTTE SF20-6
Tour multibroche SCHUTTE SF20-6
Viševreteni automatski strug SCHUTTE SF20-6
SCHUTTE SF20-6 Többorsós automata eszterga
Tornio multimandrino SCHUTTE SF20-6
Daugialypės automatinės tekinimo staklės SCHUTTE SF20-6
SCHUTTE SF20-6 Meerassige automatische draaibank
Wielowrzecionowy automat tokarski SCHUTTE SF20-6
Torno automático multifuso SCHUTTE SF20-6
Strung automat cu mai multe arbori SCHUTTE SF20-6
SCHUTTE SF20-6 Многошпиндельный токарный станок
Automatski strug sa više vretena SCHUTTE SF20-6
SCHUTTE SF20-6 Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı SCHUTTE SF20-6
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
20 mm
Nbr of spindles
6
Max. length
160 mm
Type of CNC
Spindle speed
5000 rpm
Spindle power
15 kW
-------------------
Length x width x height
3125.0
× 1030.0
× 2200.0
Weight
4300 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
The SCHUTTE SF20-6 is a multispindle automatic lathe manufactured in 1981, designed for efficient bar machining with six spindles. It can handle a maximum bar diameter of 20 mm and a maximum bar feeding length of up to 160 mm with special feeding configurations. The spindle speed ranges from a minimum of 355 rpm to a maximum of 5000 rpm, powered by a 15 kW motor, enabling a variety of machining speeds suitable for different production needs.
The machine features a spindle axis diameter spacing of 224 mm, facilitating simultaneous multi-point machining. Longitudinal slide travel is available in two variations: normal travel of 63 mm and 39.6 mm, and a special travel option of 100 mm and 63 mm. Cross slide travel includes upper and central slides with 32 mm and 20 mm travel respectively, and a lower slide with 40 mm and 25 mm travel. This versatility allows for precise control over machining operations.
The machine's cycle times vary with a minimum working time of 0.36 seconds to a maximum of 95 seconds, and idle times between 0.36 and 0.56 seconds, supporting efficient production cycles.

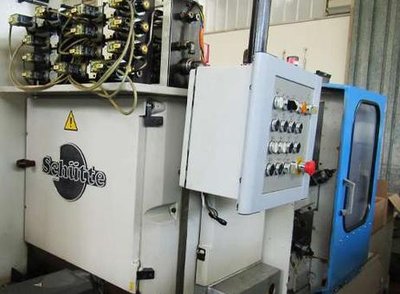

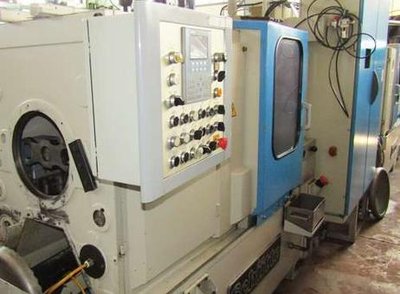

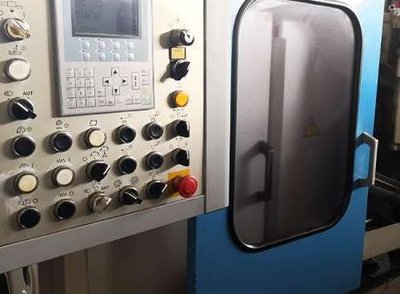

Physically, the lathe measures 3125 mm in length, 1030 mm in width, and 2200 mm in height, with a total weight of approximately 4300 kg. It is equipped with a protective enclosure featuring a blue door with a window for safe operation and visibility inside the machine. The control panel includes multiple buttons, knobs, and a display screen, along with an emergency stop button for safety. The machine housing is painted white and blue and shows visible signs of use but appears clean and intact.
Included with the machine are a tube and stand, along with various accessories to support its operation. This SCHUTTE SF20-6 multispindle lathe is suitable for industrial workshop settings where multi-spindle automatic machining is required.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
6 spindles
Bar size diameter 20 mm
Diameter between spindles axis 224 mm
Max bar feeding: normal 80 mm, special feeding 80 mm, special 160 mm
Longitudinal slide: normal travel 63/39,6 mm, special 100/63 mm
Cross slide travel: upper 32/20 mm, central slide 32/20 mm, lower 40/25 mm
No. spindle speed 47
Spindles speed: min. 355, max 5000 rpm,
Working time: min. 0,36 sec, max 95 sec
Idle time: minimum 0,36 sec, max 0,56 sec.
Motor power 15 kw.
Tube and stand. Various accessories.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Frequently Asked Questions (AI-Generated)
When was this SCHUTTE SF20-6 lathe manufactured?
This SCHUTTE SF20-6 lathe was manufactured in 1981.
Is this SCHUTTE SF20-6 lathe an automatic multi-spindle machine?
This SCHUTTE SF20-6 lathe is an automatic multi-spindle machine.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Client type
Machinery dealer
Active since
2013
Offers online
98
Last activity
May 4, 2026
ALMA SRL
Verified seller
ALMA SRL is a distinguished Italian company renowned for its innovative solutions in the field of industrial automation and technology. With a commitment to excellence and a passion for engineering, ALMA has established itself as a leader in providing cutting-edge machinery and systems that enhance productivity and efficiency across various sectors. Founded with the vision of transforming traditional manufacturing processes, ALMA SRL specializes in the design and production of advanced equipment tailored to meet the unique needs of its clients. Their extensive product range includes state-of-the-art cutting systems, automation solutions, and software applications that streamline operations and optimize performance. What sets ALMA apart is its unwavering dedication to quality and customer satisfaction. The company prides itself on its ability to deliver customized solutions that not only meet but exceed client expectations. With a team of highly skilled professionals and a robust research and development department, ALMA continuously pushes the boundaries of technology to provide innovative solutions that drive success. As a trusted partner in the industrial sector, ALMA SRL is committed to fostering long-term relationships with its clients, ensuring they receive the support and expertise needed to thrive in a competitive market. Whether you are looking to enhance your production capabilities or implement the latest automation technologies, ALMA SRL is your go-to partner for excellence in industrial solutions.
Seller's description
6 spindles
Bar size diameter 20 mm
Diameter between spindles axis 224 mm
Max bar feeding: normal 80 mm, special feeding 80 mm, special 160 mm
Longitudinal slide: normal travel 63/39,6 mm, special 100/63 mm
Cross slide travel: upper 32/20 mm, central slide 32/20 mm, lower 40/25 mm
No. spindle speed 47
Spindles speed: min. 355, max 5000 rpm,
Working time: min. 0,36 sec, max 95 sec
Idle time: minimum 0,36 sec, max 0,56 sec.
Motor power 15 kw.
Tube and stand. Various accessories.
