SF26 / 6 DNT Tokarka automatyczna wielowrzecionowa
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | Siemens |
| Rok produkcji | 1986 |
| Manufacturer | SCHÜTTE |
| Model | SF26/6 DNT |
| Year | 1986 |
| Location | Italy |
| Category | Lathes - CNC multi-spindle lathes |
| Product id | P241211370Buy this machine |
| Max. Ø | 26 mm |
| Spindle speed | 10000 rpm |
| Spindle power | 15 kW |
| Length x width x height | 3125.0 × 1030.0 × 2150.0 |
| Weight | 4050 kg |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible |
| Last availability date | 04/05/2026 |
| Client type | Machinery dealer |
| Active since | 2013 |
| Offers online | 98 |
| Last activity | May 4, 2026 |
| Max. length | 100 mm |
| Nbr of spindles | 6 |
| Type of CNC | Siemens 840C |
| Type | CNC |
Opis

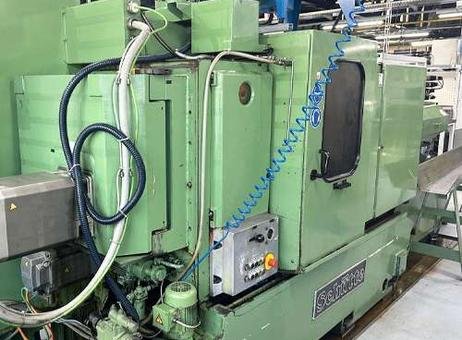

SCHÜTTE SF26/6 DNT Multispindle automatic lathe
View price
SCHÜTTE
SF26/6 DNT
1986
Italy
Lathes - CNC multi-spindle lathes
P241211370
+39 3 51…
Max. Ø
26 mm
Type of CNC
Spindle speed
3000 rpm
Spindle power
15 kW
Length x width x height
3125.0 × 1030.0 × 2150.0
Weight
4050 kg
as-is, where-is
visible
04/05/2026
This SCHÜTTE SF26/6 DNT is an automatic multispindle lathe designed for efficient and precise machining operations. Manufactured in 1986, the machine features six spindles and is capable of handling bar diameters up to 26 mm. The spindle speed ranges from 425 to 3000 rpm, powered by a 15 kW motor. The lathe offers a longitudinal slide with normal travel distances of 63 mm and 39.6 mm, as well as special travel options of 100 mm and 63 mm, allowing for versatile machining capabilities. The machine's dimensions are 3125 mm in length, 1030 mm in width, and 2150 mm in height, with a total weight of 4050 kg. It includes a bar feeding system with a maximum capacity of 80 mm and a special feed option of 160 mm. The spindle axis distance measures 224 mm, optimizing the machine for multispindle operations. Equipped with various accessories, this lathe includes a tube and stand with a hydraulic system, a conveyor belt device, a pick-up mechanism, a recessing device, and multiple tool holders to accommodate diverse tooling needs. Additionally, it features a Donaldson Torit DCE smoke aspirator to help manage dust and fumes during operation. The machine exterior is painted green and appears clean with minor signs of use and wear. It has a windowed door for access to the internal work area, allowing for easy monitoring and maintenance. The control panel is equipped with multiple push buttons, switches, and an emergency stop button, showing minor wear but remaining intact and functional. Visible components include hydraulic and pneumatic lines connected to the spindle assembly and tooling mechanisms, which appear well-maintained and lubricated. A ventilation ducting system is attached to the top of the machine, and a blue metal dust collection or ventilation unit is mounted above, showing minor surface scratches without visible damage. Additionally, a white air conditioning or cooling unit is mounted on the side of the machine. Electrical and control wiring are visible on the machine's side, accompanied by high voltage warning labels to ensure operator safety. This SCHÜTTE multispindle lathe is suitable for precision machining tasks requiring multiple simultaneous operations, supported by its robust construction and comprehensive accessory set. Automatic multispindle lathe
No. 6 spindles
Bar size diameter: 26 mm
Diameter between spindles axis: 224 mm
Max bar feeding: 80 mm
Special feed the bar: 160 mm
Longitudinal slide normal travel: 63/39,6 mm
Longitudinal slide special travel: 100/63 mm
No. of spindles speed 8. Spindle speed: 425-3000 rpm. Working time: min. 1,00 sec – max 125 sec
Idle time 0,36 sec
Motor power 15 kw

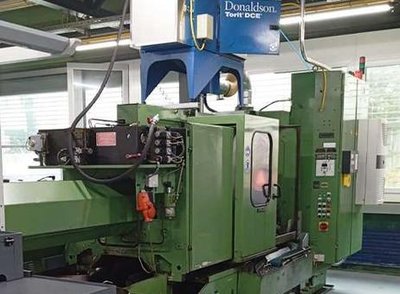

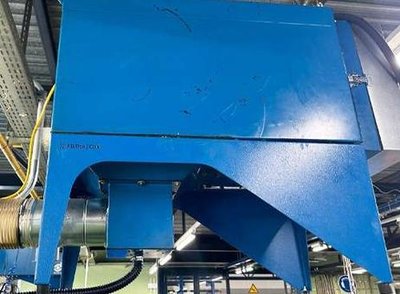

Devices and Accessories: Tube + stand with hydraulic system – Device with conveyor belt – pick-up – recessing device – various tool holders – Smoke aspirator DONALDSON TORIT DCE
