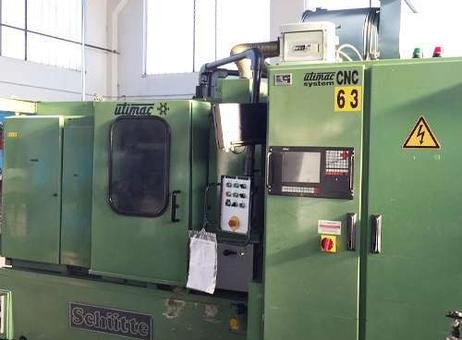

SCHUTTE SF26-6 Multispindle automatic lathe

SCHUTTE SF26-6 Multispindle automatic lathe
Verified seller
Price on request
Make an offer
Manufacturer
SCHUTTE
Model
SF26-6
Year
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P240410159
Buy this machine
Language
Language
Многошпинделен автоматичен струг SCHUTTE SF26-6
Multivřetenový automatický soustruh SCHUTTE SF26-6
SCHUTTE SF26-6 Multispindlet automatisk drejebænk
SCHUTTE SF26-6 Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων SCHUTTE SF26-6
SCHUTTE SF26-6 Multispindle automatic lathe
Torno multihusillos automático SCHUTTE SF26-6
Tour multibroche SCHUTTE SF26-6
Viševreteni automatski strug SCHUTTE SF26-6
SCHUTTE SF26-6 Többorsós automata eszterga
Tornio multimandrino SCHUTTE SF26-6
Daugialypės automatinės tekinimo staklės SCHUTTE SF26-6
SCHUTTE SF26-6 Meerassige automatische draaibank
Wielowrzecionowy automat tokarski SCHUTTE SF26-6
Torno automático multifuso SCHUTTE SF26-6
Strung automat cu mai multe arbori SCHUTTE SF26-6
SCHUTTE SF26-6 Многошпиндельный токарный станок
Automatski strug sa više vretena SCHUTTE SF26-6
SCHUTTE SF26-6 Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı SCHUTTE SF26-6
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
26 mm
Nbr of spindles
6
Type of CNC
Spindle speed
3000 rpm
Spindle power
15 kW
-------------------
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This SCHUTTE SF26-6 is a CNC multispindle automatic lathe designed for efficient bar machining. It features 6 spindles with a maximum bar diameter capacity of 26 mm and a spindle speed of up to 3000 rpm. The spindle power is rated at 15 kW, providing substantial motor power for various machining operations. The machine length, including tubes and stand, measures 5983 mm.
The lathe offers a diameter between spindle axes of 224 mm and supports a maximum bar feeding size of 80 mm, with a special feed capability of 160 mm. The longitudinal slide has a normal travel range of 63/39.6 mm and a special travel range of 100/63 mm, allowing for precise and versatile machining movements.
This model is equipped with advanced features such as a pick-up sub spindle, threading device with tap and die capability, and a milling thread/polygonal device. The drive system utilizes A.C. motors with controlled drive for reliable performance.
Additional components include an electric cabinet, hydraulic box, and a smoke exhauster for operational safety and efficiency. The machine comes with a protective enclosure and a control panel featuring buttons and an emergency stop button for operator safety. An electrical hazard warning sign is present on the right side panel.
A ventilation or extraction system is attached on top of the machine to manage fumes and maintain a safe working environment. The machine appears to be in good condition with minor surface wear and scratches, indicating careful use. This SCHUTTE SF26-6 lathe is suitable for precision multispindle machining tasks in industrial settings.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
6 spindles
Bar size diameter 26 mm
Diameter between spindles axis 224 mm
Max bar feeding 80mm
Special feed the bar 160 mm
Longitudinal slide normal travel 63/39,6 mm
Longitudinal slide special travel 100/63 mm
No. of spindles speed 8. Spindle speed 425-3000 rpm.
Working time: min. 1,00 sec, max 125 sec
Idle time 0,36 sec
Motor power 15 kw
Pick up sub spindle. Threading device tap and die. Milling thread / poligonal device.

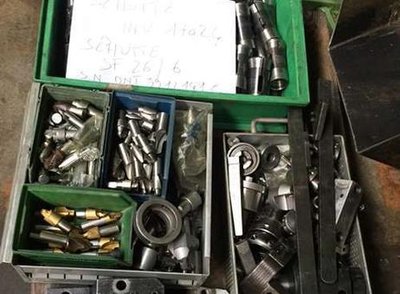

A.C. motors in controlled drive. Equipped with sample pieces. Length with tubes/stand 5983 mm. The machine dimension including the eletric cabinet. Hydraulic box. Smoke exhauster. Accessories.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2013
Offers online
98
Last activity
May 6, 2026
ALMA SRL
Verified seller
ALMA SRL is a distinguished Italian company renowned for its innovative solutions in the field of industrial automation and technology. With a commitment to excellence and a passion for engineering, ALMA has established itself as a leader in providing cutting-edge machinery and systems that enhance productivity and efficiency across various sectors. Founded with the vision of transforming traditional manufacturing processes, ALMA SRL specializes in the design and production of advanced equipment tailored to meet the unique needs of its clients. Their extensive product range includes state-of-the-art cutting systems, automation solutions, and software applications that streamline operations and optimize performance. What sets ALMA apart is its unwavering dedication to quality and customer satisfaction. The company prides itself on its ability to deliver customized solutions that not only meet but exceed client expectations. With a team of highly skilled professionals and a robust research and development department, ALMA continuously pushes the boundaries of technology to provide innovative solutions that drive success. As a trusted partner in the industrial sector, ALMA SRL is committed to fostering long-term relationships with its clients, ensuring they receive the support and expertise needed to thrive in a competitive market. Whether you are looking to enhance your production capabilities or implement the latest automation technologies, ALMA SRL is your go-to partner for excellence in industrial solutions.
Seller's description
6 spindles
Bar size diameter 26 mm
Diameter between spindles axis 224 mm
Max bar feeding 80mm
Special feed the bar 160 mm
Longitudinal slide normal travel 63/39,6 mm
Longitudinal slide special travel 100/63 mm
No. of spindles speed 8. Spindle speed 425-3000 rpm.
Working time: min. 1,00 sec, max 125 sec
Idle time 0,36 sec
Motor power 15 kw
Pick up sub spindle. Threading device tap and die. Milling thread / poligonal device.
A.C. motors in controlled drive. Equipped with sample pieces. Length with tubes/stand 5983 mm. The machine dimension including the eletric cabinet. Hydraulic box. Smoke exhauster. Accessories.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
