SF26 DNT Tokarka automatyczna wielowrzecionowa
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | Siemens |
| Rok produkcji | 1986 |
| Manufacturer | SCHÜTTE |
| Model | SF26 DNT |
| Year | 1986 |
| Location | Italy |
| Category | Lathes - CNC multi-spindle lathes |
| Product id | P250209115Buy this machine |
| Max. Ø | 18 mm |
| Nbr of spindles | 8 |
| Spindle speed | 5000 rpm |
| Spindle power | 11 kW |
| Length x width x height | 3125.0 × 1030.0 × 2150.0 |
| Weight | 4050 kg |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible |
| Last availability date | 04/05/2026 |
| Client type | Machinery dealer |
| Active since | 2013 |
| Offers online | 98 |
| Last activity | May 6, 2026 |
| Max. length | 63 mm |
| Type of CNC | Siemens 840C |
| Number of tools | 6 |
Opis

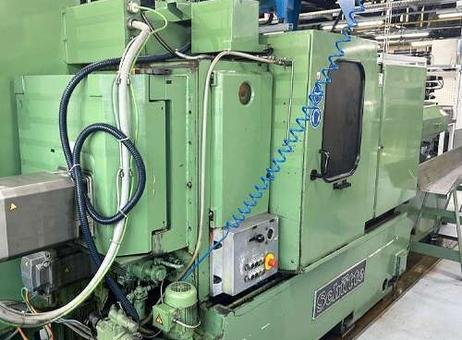

SCHÜTTE SF26 DNT Multispindle automatic lathe
View price
SCHÜTTE
SF26 DNT
1986
Italy
Lathes - CNC multi-spindle lathes
P250209115
+39 3 51…
Max. Ø
26 mm
Nbr of spindles
6
Type of CNC
Spindle speed
3000 rpm
Spindle power
15 kW
Length x width x height
3125.0 × 1030.0 × 2150.0
Weight
4050 kg
as-is, where-is
visible
04/05/2026
This SCHÜTTE SF26 DNT is a multispindle automatic lathe designed for efficient and precise machining tasks. Manufactured in 1986, the machine features six spindles capable of handling bar stock with a maximum diameter of 26 mm. The spindle speed ranges from 425 to 3000 rpm, powered by a 15 kW motor, enabling a variety of machining operations with adjustable speeds to suit different materials and requirements. The lathe's dimensions are approximately 3125 mm in length, 1030 mm in width, and 2150 mm in height, with a total weight of 4050 kg. The spindle axes are spaced 224 mm apart, accommodating bar feeding up to 80 mm, with a special feed option extending to 160 mm. The longitudinal slide offers normal travel distances of 63 mm and 39.6 mm, with special travel options of 100 mm and 63 mm, allowing for flexible tool positioning. Cycle times include a minimum working time of 1.00 second and a maximum of 125 seconds, with an idle time of 0.36 seconds, supporting high productivity in automated operations. The machine is equipped with several accessories and devices such as a tube and stand with a hydraulic system, a conveyor belt device, a pick-up mechanism, and a recessing device. Various tool holders are included for versatile tooling setups. Additional features observed include an enclosed green housing for safety and protection, a control panel with an emergency stop button and other operational controls on the side, and a flexible blue coiled hose attached to the machine. Ventilation ducting and piping are installed on top of the machine to assist with airflow. The SCHÜTTE brand name plate is visible on the side, confirming the manufacturer. This lathe also includes a smoke aspirator from DONALDSON TORIT DCE, an electrical drawing, an accessories box, and a hydraulic box, enhancing its operational capabilities and maintenance convenience. This comprehensive setup makes the SCHÜTTE SF26 DNT suitable for demanding multispindle turning applications in industrial environments. Automatic multispindle lathe
No. 6 spindles
Bar size diameter: 26 mm
Diameter between spindles axis: 224 mm
Max bar feeding: 80 mm
Special feed the bar: 160 mm
Longitudinal slide normal travel: 63/39,6 mm
Longitudinal slide special travel: 100/63 mm
No. of spindles speed 8. Spindle speed: 425-3000 rpm. Working time: min. 1,00 sec – max 125 sec
Idle time 0,36 sec
Motor power 15 kw

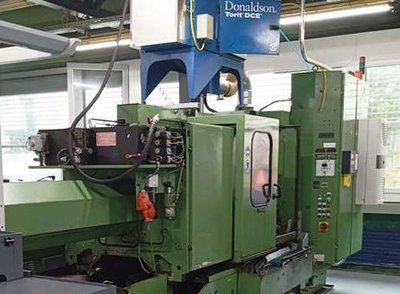

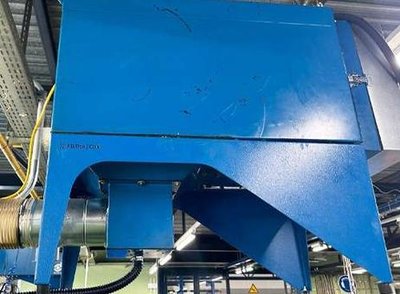

Devices and Accessories: Tube + stand with hydraulic system – Device with conveyor belt – pick-up – recessing device – various tool holders – Smoke aspirator DONALDSON TORIT DCE – electrical drawing – Accessories box – Hydraulic box
