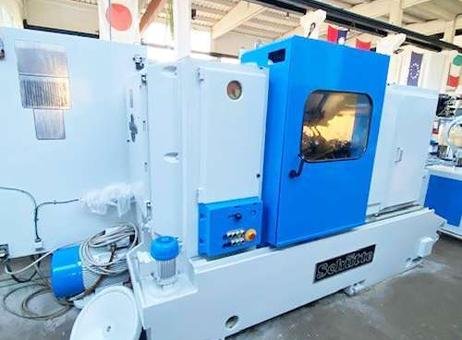

SCHUTTE SF32 Multispindle automatic lathe

SCHUTTE SF32 Multispindle automatic lathe
Verified seller
Price on request
View price
Manufacturer
SCHUTTE
Model
SF32
Year
1987
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P240326297
Buy this machine
Language
Language
Многошпинделен автоматичен струг SCHUTTE SF32
Multivřetenový automatický soustruh SCHUTTE SF32
SCHUTTE SF32 Multispindlet automatisk drejebænk
SCHUTTE SF32 Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων SCHUTTE SF32
SCHUTTE SF32 Multispindle automatic lathe
Torno multihusillos automático SCHUTTE SF32
Tour multibroche SCHUTTE SF32
Viševreteni automatski strug SCHUTTE SF32
SCHUTTE SF32 Többorsós automata eszterga
Tornio multimandrino SCHUTTE SF32
Daugialypės automatinės tekinimo staklės SCHUTTE SF32
SCHUTTE SF32 Meerassige automatische draaibank
Wielowrzecionowy automat tokarski SCHUTTE SF32
Torno automático multifuso SCHUTTE SF32
Strung automat cu mai multe arbori SCHUTTE SF32
SCHUTTE SF32 Многошпиндельный токарный станок
Automatski strug sa više vretena SCHUTTE SF32
SCHUTTE SF32 Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı SCHUTTE SF32
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
32 mm
Nbr of spindles
6
Max. length
125 mm
Type of CNC
Spindle power
18.5 kW
-------------------
Length x width x height
4400.0
× 1700.0
× 2300.0
Weight
10000 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This SCHUTTE SF32 is a manual multispindle lathe machine manufactured in 1987, designed for precision bar machining. It features 6 spindles with a maximum bar diameter capacity of 32 mm and a spindle axis distance of 300 mm. The machine accommodates bar feed lengths of 125 mm under normal conditions, with a special feed option extending up to 290 mm. The longitudinal slide offers a normal travel range of 100/80 mm, while the cross slides provide travel distances of 50/33 mm (upper), 50/30 mm (central), and 60/37.5 mm (lower). Spindle speeds range from a minimum of 200 rpm to a maximum of 3150 rpm, supporting working times between 0.7 and 1.25 seconds, with cycle times varying from 0.63 to 200 seconds. The spindle power is rated at 18.5 kW.
The machine measures 4400 mm in length, 1700 mm in width, and 2300 mm in height, weighing approximately 10,000 kg. When equipped with the loader and electric panel, the overall length extends to 6410 mm. Included with the lathe are several accessories such as a pick-up device, threading device, turning carriage, various tool holders, a hydraulic box, and a chip conveyor. The package also comes with a tube and stand, as well as electrical drawings.

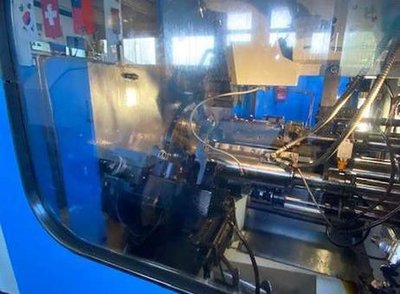

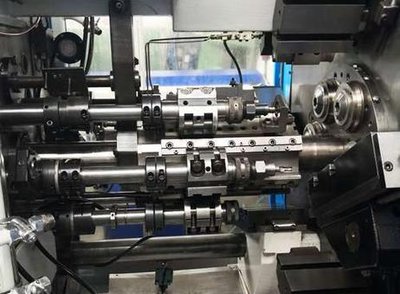

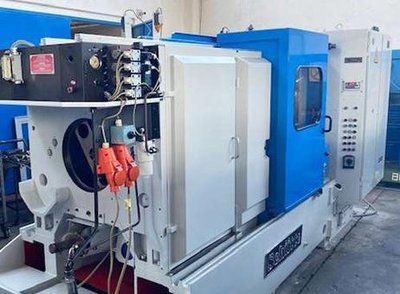

The lathe is housed in a blue and white painted enclosure featuring a window for internal operation viewing. The exterior shows no visible signs of rust or damage and appears well-maintained. Electrical connections and hydraulic components are accessible on the machine's rear side, with multiple cables and connectors securely attached. Interior tooling and spindle assemblies are clean and intact, indicating careful upkeep. Overall, this SCHUTTE SF32 multispindle lathe offers a robust and comprehensive setup suitable for various bar machining applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
6 spindles.
Bar size diameter 32 mm.
Diameter between spindles axis 300 mm.
Bar feed: normal 125 mm, special 290 mm.
Normal travel of the longitudinal slide 100/80 mm.
Cross slides travel: upper 50/33 mm, central 50/30 mm, lower 60/37,5.
Spindles speed: min. 200 giri/min, max 3150 giri/min.
Tempi di lavoro: min. 0,63 sec, max 200 sec.
Working time: min. 0,7 sec. max 1,25 sec.
Power 18,5 kW.
Dimensions of the machine with loader 6410 mm. With electric panel. Pick-up. Threading device. turning carriage. Various tool-holder and accessories. Hydraulic box and Chips conveyor. Tube + stand. Electric drawings . The dimension of machine including electric panel
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2013
Offers online
98
Last activity
May 4, 2026
ALMA SRL
Verified seller
ALMA SRL is a distinguished Italian company renowned for its innovative solutions in the field of industrial automation and technology. With a commitment to excellence and a passion for engineering, ALMA has established itself as a leader in providing cutting-edge machinery and systems that enhance productivity and efficiency across various sectors. Founded with the vision of transforming traditional manufacturing processes, ALMA SRL specializes in the design and production of advanced equipment tailored to meet the unique needs of its clients. Their extensive product range includes state-of-the-art cutting systems, automation solutions, and software applications that streamline operations and optimize performance. What sets ALMA apart is its unwavering dedication to quality and customer satisfaction. The company prides itself on its ability to deliver customized solutions that not only meet but exceed client expectations. With a team of highly skilled professionals and a robust research and development department, ALMA continuously pushes the boundaries of technology to provide innovative solutions that drive success. As a trusted partner in the industrial sector, ALMA SRL is committed to fostering long-term relationships with its clients, ensuring they receive the support and expertise needed to thrive in a competitive market. Whether you are looking to enhance your production capabilities or implement the latest automation technologies, ALMA SRL is your go-to partner for excellence in industrial solutions.
Seller's description
6 spindles.
Bar size diameter 32 mm.
Diameter between spindles axis 300 mm.
Bar feed: normal 125 mm, special 290 mm.
Normal travel of the longitudinal slide 100/80 mm.
Cross slides travel: upper 50/33 mm, central 50/30 mm, lower 60/37,5.
Spindles speed: min. 200 giri/min, max 3150 giri/min.
Tempi di lavoro: min. 0,63 sec, max 200 sec.
Working time: min. 0,7 sec. max 1,25 sec.
Power 18,5 kW.
Dimensions of the machine with loader 6410 mm. With electric panel. Pick-up. Threading device. turning carriage. Various tool-holder and accessories. Hydraulic box and Chips conveyor. Tube + stand. Electric drawings . The dimension of machine including electric panel
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
