SCHUTTE SF32 Multispindle automatic lathe

SCHUTTE SF32 Multispindle automatic lathe
Verified seller
Price on request
Make an offer
Manufacturer
SCHUTTE
Model
SF32
Year
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P240326294
Buy this machine
Language
Language
Многошпинделен автоматичен струг SCHUTTE SF32
Multivřetenový automatický soustruh SCHUTTE SF32
SCHUTTE SF32 Multispindlet automatisk drejebænk
SCHUTTE SF32 Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων SCHUTTE SF32
SCHUTTE SF32 Multispindle automatic lathe
Torno multihusillos automático SCHUTTE SF32
Tour multibroche SCHUTTE SF32
Viševreteni automatski strug SCHUTTE SF32
SCHUTTE SF32 Többorsós automata eszterga
Tornio multimandrino SCHUTTE SF32
Daugialypės automatinės tekinimo staklės SCHUTTE SF32
SCHUTTE SF32 Meerassige automatische draaibank
Wielowrzecionowy automat tokarski SCHUTTE SF32
Torno automático multifuso SCHUTTE SF32
Strung automat cu mai multe arbori SCHUTTE SF32
SCHUTTE SF32 Многошпиндельный токарный станок
Automatski strug sa više vretena SCHUTTE SF32
SCHUTTE SF32 Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı SCHUTTE SF32
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
32 mm
Nbr of spindles
6
Type of CNC
Spindle speed
3150 rpm
-------------------
Length x width x height
3850.0
× 1390.0
× 2200.0
Weight
8500 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This listing is for a Schütte SF32 multispindle automatic lathe, designed for high-precision machining tasks. It features six spindles, accommodating bar stock up to 32 mm in diameter. The distance between spindle axes is 300 mm, providing ample space for simultaneous operations. Bar feed options include a normal feed of 125 mm, a special feed of 290 mm, and longitudinal feeds of 100 mm and 80 mm. The machine offers cross slides travel with the upper slide moving 50/33 mm, the central slide 50/30 mm, and the lower slide 60/37.5 mm, allowing for versatile machining adjustments.
Spindle speed ranges from a minimum of 200 rpm to a maximum of 3150 rpm, with 49 selectable speed settings. The working time varies between 0.63 seconds and 200 seconds, while idle time ranges from 0.7 to 1.25 seconds. The machine includes a hydraulic unit, tube stand, and tube cover case, along with two tanks and a high-pressure system. It is equipped with a bar holder trolley and a Siemens PLC control system without a display. Various tool holders are also provided for flexible tooling setups.
The machine measures 3850 mm in length, 1390 mm in width, and 2200 mm in height, weighing approximately 8500 kg. The dimensions include the electrical cabinet, with a total machine length including the bar guide of 6410 mm.

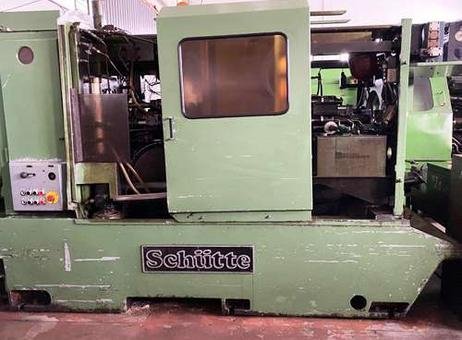

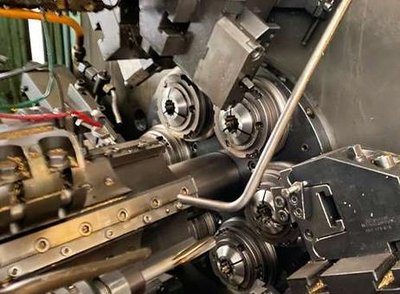

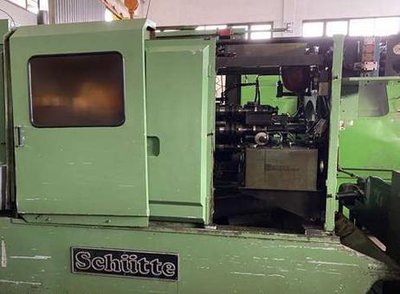

The exterior is painted green and features an enclosed cabin with windows. The condition shows visible signs of wear, including paint chipping and scratches on the exterior surfaces. The control panel with buttons and switches is located on the left side of the machine. A sliding door on the side provides access to the internal mechanical components, which appear used but intact. The machining area includes a multispindle chuck and tooling setup designed for efficient automatic lathe operations.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
6 spindles
Bar size diameter 32 mm
Diam. Between spindle axes 300 mm
Bar feed: normal 125 mm, special 290 mm, longitudinal 100/80 mm.
Cross slides travel: upper slide 50/33 mm, central slide .50/30 mm, lower slide 60/37.5 mm.
No. spindle speed 49
Spindle speed min 200/min, max 3150/min
Working time: min 0.63 sec, max 200 sec
Idle time: min. 0.7 sec, max 1.25 sec
Hydraulic unit.Tube, stand and tube cover case,. Nr. 02 tanks. High pressure system. Bar holder trolley. PLC SIEMENS without display. Various tool holders.
The dimension includi electrical cabinet. Machine lenght with bars guide 6410 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2013
Offers online
98
Last activity
May 4, 2026
ALMA SRL
Verified seller
ALMA SRL is a distinguished Italian company renowned for its innovative solutions in the field of industrial automation and technology. With a commitment to excellence and a passion for engineering, ALMA has established itself as a leader in providing cutting-edge machinery and systems that enhance productivity and efficiency across various sectors. Founded with the vision of transforming traditional manufacturing processes, ALMA SRL specializes in the design and production of advanced equipment tailored to meet the unique needs of its clients. Their extensive product range includes state-of-the-art cutting systems, automation solutions, and software applications that streamline operations and optimize performance. What sets ALMA apart is its unwavering dedication to quality and customer satisfaction. The company prides itself on its ability to deliver customized solutions that not only meet but exceed client expectations. With a team of highly skilled professionals and a robust research and development department, ALMA continuously pushes the boundaries of technology to provide innovative solutions that drive success. As a trusted partner in the industrial sector, ALMA SRL is committed to fostering long-term relationships with its clients, ensuring they receive the support and expertise needed to thrive in a competitive market. Whether you are looking to enhance your production capabilities or implement the latest automation technologies, ALMA SRL is your go-to partner for excellence in industrial solutions.
Seller's description
6 spindles
Bar size diameter 32 mm
Diam. Between spindle axes 300 mm
Bar feed: normal 125 mm, special 290 mm, longitudinal 100/80 mm.
Cross slides travel: upper slide 50/33 mm, central slide .50/30 mm, lower slide 60/37.5 mm.
No. spindle speed 49
Spindle speed min 200/min, max 3150/min
Working time: min 0.63 sec, max 200 sec
Idle time: min. 0.7 sec, max 1.25 sec
Hydraulic unit.Tube, stand and tube cover case,. Nr. 02 tanks. High pressure system. Bar holder trolley. PLC SIEMENS without display. Various tool holders.
The dimension includi electrical cabinet. Machine lenght with bars guide 6410 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Specifications
Max. Ø
32 mm
Nbr of spindles
6
Type of CNC
Spindle speed
3150 rpm
-------------------
Length x width x height
3850.0
× 1390.0
× 2200.0
Weight
8500 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This listing is for a Schütte SF32 multispindle automatic lathe, designed for high-precision machining tasks. It features six spindles, accommodating bar stock up to 32 mm in diameter. The distance between spindle axes is 300 mm, providing ample space for simultaneous operations. Bar feed options include a normal feed of 125 mm, a special feed of 290 mm, and longitudinal feeds of 100 mm and 80 mm. The machine offers cross slides travel with the upper slide moving 50/33 mm, the central slide 50/30 mm, and the lower slide 60/37.5 mm, allowing for versatile machining adjustments.
Spindle speed ranges from a minimum of 200 rpm to a maximum of 3150 rpm, with 49 selectable speed settings. The working time varies between 0.63 seconds and 200 seconds, while idle time ranges from 0.7 to 1.25 seconds. The machine includes a hydraulic unit, tube stand, and tube cover case, along with two tanks and a high-pressure system. It is equipped with a bar holder trolley and a Siemens PLC control system without a display. Various tool holders are also provided for flexible tooling setups.
The machine measures 3850 mm in length, 1390 mm in width, and 2200 mm in height, weighing approximately 8500 kg. The dimensions include the electrical cabinet, with a total machine length including the bar guide of 6410 mm.
The exterior is painted green and features an enclosed cabin with windows. The condition shows visible signs of wear, including paint chipping and scratches on the exterior surfaces. The control panel with buttons and switches is located on the left side of the machine. A sliding door on the side provides access to the internal mechanical components, which appear used but intact. The machining area includes a multispindle chuck and tooling setup designed for efficient automatic lathe operations.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
