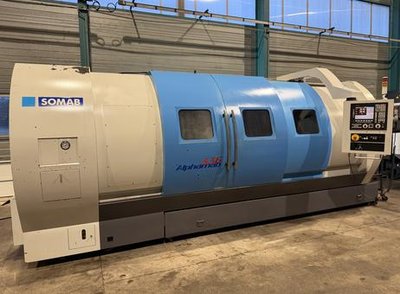

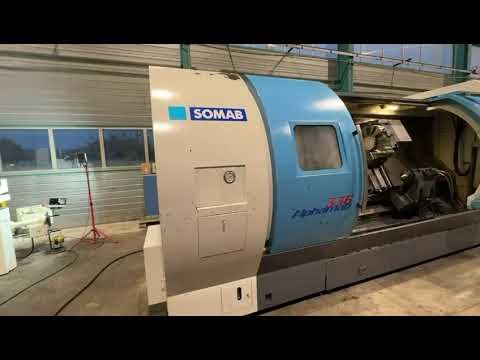

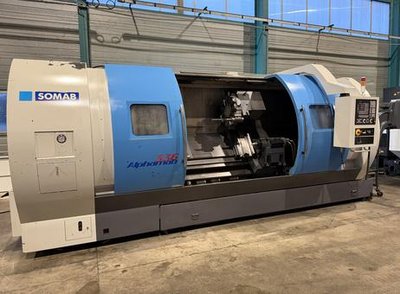

SOMAB ALPHAMAB 356 cnc lathe

Problems viewing the video? Watch on YouTube.
SOMAB ALPHAMAB 356 cnc lathe
Top seller
Price on request
View price
Manufacturer
SOMAB
Model
ALPHAMAB 356
Year
2012
Location
France
Category
Lathes - CNC lathes
Product id
P260125041
Buy this machine
Language
Language
cnc струг SOMAB ALPHAMAB 356
Soustruh cnc SOMAB ALPHAMAB 356
SOMAB ALPHAMAB 356 cnc drejebænk
SOMAB ALPHAMAB 356 Drehmaschine CNC
cnc τόρνος SOMAB ALPHAMAB 356
SOMAB ALPHAMAB 356 cnc lathe
Torno cnc SOMAB ALPHAMAB 356
Tour CNC 2 axes SOMAB ALPHAMAB 356 Ø800 x 2200 mm
cnc tokarski stroj SOMAB ALPHAMAB 356
SOMAB ALPHAMAB 356 cnc eszterga
Tornio cnc SOMAB ALPHAMAB 356
cnc tekinimo staklės SOMAB ALPHAMAB 356
SOMAB ALPHAMAB 356 cnc-draaibank
Tokarka CNC SOMAB ALPHAMAB 356
Torno CNC SOMAB ALPHAMAB 356
strung cnc SOMAB ALPHAMAB 356
SOMAB ALPHAMAB 356 Токарный станок с ЧПУ
cnc strug SOMAB ALPHAMAB 356
SOMAB ALPHAMAB 356 cnc svarv
Cnc torna SOMAB ALPHAMAB 356
Get price & details
Details
About this seller
Specifications
Turning length
2090 mm
Turning Ø
800 mm
Ø above the bed
800 mm
Ø above transversing slide
630 mm
Length between centers
2200 mm
Type of CNC
FAGOR 8055
X-axis
2090 mm
Z-axis
350 mm
Max workpiece weight
3500 kg
Spindle taper
A2-11"
Spindle bore
131 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
0
Turning speed
2100 rpm
Spindle motor power
42 kW
Tailstock
yes
Bar feeder
no
-------------------
Length x width x height
5995.0
× 2100.0
× 2400.0
Weight
12000 kg
worked hours
6800
hours
hours under power
10500
hours
state
excellent
At local norms
yes
status
under power
Datasheet
Somab ALPHAMAB 356
Last availability date
05/05/2026
Show more
Automatic description (AI-Generated)
This SOMAB ALPHAMAB 356 CNC lathe, manufactured in 2012, offers robust capabilities for precision turning tasks. It features a maximum diameter capacity over the bed of 800 mm and over the carriage of 630 mm, accommodating sizable workpieces. The distance between centers is 2200 mm, with an X-axis travel of 2090 mm and a Z-axis travel of 350 mm, providing extensive machining range.
Powered by a spindle motor delivering up to 42 kW, the lathe supports spindle speeds up to 2100 rpm via a 2-range gearbox. It includes a 131 mm spindle bore and an A2-11" spindle nose. The machine is equipped with a 12-position automatic turret featuring 32x32 mm tool holders, facilitating versatile tooling options. The control system is a FAGOR 8055 CNC with conversational and ISO programming capabilities, complemented by an electronic handwheel for manual adjustments.
Additional features include spindle indexing, a climate-controlled cabinet, and a 3-color status light for operational monitoring. The lathe comes with a CM6 hydraulic tailstock with 130 mm quill travel, a chip conveyor, coolant system, and automatic centralized lubrication to support continuous operation.

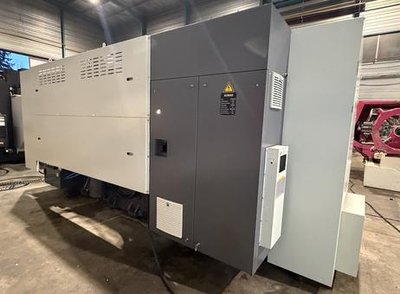

Included accessories are a 600 mm diameter manual 4-jaw chuck, a 400 mm diameter manual 6-jaw chuck, a self-centering steady rest, tool holders, tools, jaws, and a live center. The exterior shows some minor wear and paint chipping on the left side panel, while the overall paint condition is intact with minor signs of use. The control panel is mounted on the right side, featuring a display screen and an emergency stop button.
The lathe has dimensions of approximately 5996 x 2100 x 2400 mm and weighs around 12,000 kg. This machine is suitable for heavy-duty machining tasks requiring precision and flexibility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
• Year 2012
• Maximum diameter over bed: 800 mm
• Maximum diameter over carriage: 630 mm
• Distance between centers: 2200 mm
• X-axis travel: 350 mm
• Z-axis travel: 2090 mm
• Rapid traverse speed: X 20 m/min, Z 24 m/min
• Spindle nose: A2-11"
• Spindle bore: 131 mm
• 12-position automatic turret with 32x32 chairs
• Spindle speed: 0-2100 rpm, 2-range gearbox
• Spindle indexing
• Spindle motor power: 28/42 kW
• FAGOR 8055 CNC, conversational/ISO
• Electronic handwheel
• Climate-controlled cabinet
• 3-color status light
• CM6 hydraulic tailstock, 130 mm quill travel mm
• Chip conveyor
• Coolant system
• Automatic centralized lubrication
• 600 mm diameter manual 4-jaw chuck
• 400 mm diameter manual 6-jaw chuck
• Self-centering steady rest
• Tool holders, tools, jaws, live center
• Very good condition
• Dimensions 5996 x 2100 x 2400 mm
• Weight 12000 kg
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
