Tornio Focus FBL 320Y cnc lathe

Tornio Focus FBL 320Y cnc lathe
Verified seller
Price on request
Make an offer
Manufacturer
Tornio Focus
Model
FBL 320Y
Year
Location
Italy
Category
Lathes - CNC lathes
Product id
P260211039
Buy this machine
Language
Language
cnc струг Tornio Focus FBL 320Y
Soustruh cnc Tornio Focus FBL 320Y
Tornio Focus FBL 320Y cnc drejebænk
Tornio Focus FBL 320Y Drehmaschine CNC
cnc τόρνος Tornio Focus FBL 320Y
Tornio Focus FBL 320Y cnc lathe
Torno cnc Tornio Focus FBL 320Y
Tour cnc Tornio Focus FBL 320Y
cnc tokarski stroj Tornio Focus FBL 320Y
Tornio Focus FBL 320Y cnc eszterga
Tornio cnc Tornio Focus FBL 320Y
cnc tekinimo staklės Tornio Focus FBL 320Y
Tornio Focus FBL 320Y cnc-draaibank
Tokarka CNC Tornio Focus FBL 320Y
Torno CNC Tornio Focus FBL 320Y
strung cnc Tornio Focus FBL 320Y
Tornio Focus FBL 320Y Токарный станок с ЧПУ
cnc strug Tornio Focus FBL 320Y
Tornio Focus FBL 320Y cnc svarv
Cnc torna Tornio Focus FBL 320Y
Get price & details
+39 3 93…
Show phone
Details
About this seller
Specifications
Turning length
548 mm
Turning Ø
460 mm
Ø above the bed
600 mm
Length between centers
795 mm
Type of CNC
fanuc 0itf
X-axis
310 mm
Z-axis
620 mm
Spindle taper
asa a28
Spindle bore
88 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
12
Turning speed
3500 rpm
Spindle motor power
15 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
3026.0
× 1992.0
× 2130.0
Weight
6500 kg
worked hours
hours under power
state
as-is, where-is
At local norms
yes
status
Last availability date
21/03/2026
Show more
Automatic description (AI-Generated)
Manufacturer: Tornio Focus
Model: FBL 320Y
This CNC lathe machine is equipped with a FANUC 0i-TF Plus numerical control system featuring a 15-inch color graphic display. It includes a remote handwheel and Manual Guide I for ease of operation. The machine supports a maximum turning length of 548 mm and a distance between centers of 795 mm. It can handle a maximum rotating diameter of 600 mm and a maximum turning diameter of 460 mm. The spindle bore diameter is 88 mm with a bar passage of 77 mm, and the spindle connection is ASA A2-8.
The spindle motor offers a power range between 11 and 15 kW, reaching a maximum spindle speed of 3,500 rpm. The lathe has a C-axis positioning precision of 0.001°, with travels of 310 mm on the X-axis, 620 mm on the Z-axis, ±55 mm on the Y-axis, and 650 mm on the B-axis (tailstock). Rapid feed rates for XY and ZB axes are both 20 m/min. The tailstock quill is MT 5.
The machine dimensions are approximately 3,026 mm in length (plus an additional 850 mm for the chip conveyor), 1,992 mm in width, and 2,130 mm in height, with a total weight of 6,500 kg.
Standard accessories include a 10-inch Kitagawa hydraulic chuck with soft and hard jaws, a hydraulic chuck control pedal, serial, Ethernet, and USB outputs, a belt chip conveyor with collection trolley, and a swivel tailstock. The lathe features a 12-position motorized tool turret with BMT 60 type tool holder attachments and a motorized 4.5 kW motor capable of up to 6,000 rpm. Additionally, it comes with a kit of 12 static tool holders, a 3-color alarm and end-of-cycle light, integrated work light, support feet, a box with service keys, oil separator, mobile coolant tank, centralized lubrication system, hydraulic spindle pedal, and a current transformer. Use and maintenance manuals, electrical diagrams, CNC manuals, and CE declaration are also provided.
Included accessories are a Grundfos 9.5 bar cooling pump, Renishaw automatic tool presetting system, in-cycle tailstock, air blow above the spindle, data exchange preparation for Industry 4.0, and both straight and angular motorized tool holders for BMT 60.

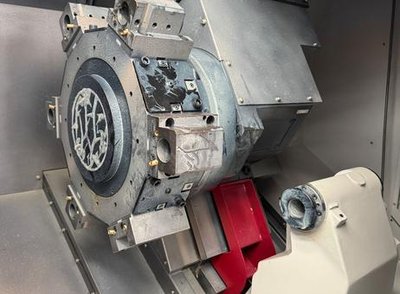

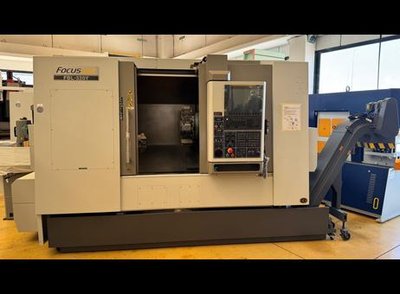

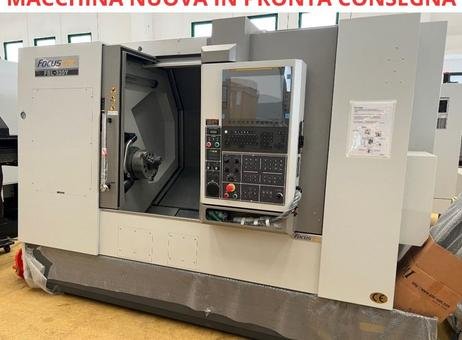

The lathe is housed within an enclosure featuring a control panel on the door. The machine appears new or in excellent condition, with protective wrapping visible on the base. The interior, including the tooling area and turret with multiple tool holders, is clean and well maintained. A chip conveyor system is attached on the right side, and a 3-jaw chuck is mounted on the spindle inside the enclosure. A coolant nozzle is positioned near the chuck. The control panel includes a screen, buttons, dials, and an emergency stop for safe operation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Manufacturer: Tornio Focus
Model: FBL 320Y
Technical Condition: As-is, where-is
Technical Features:

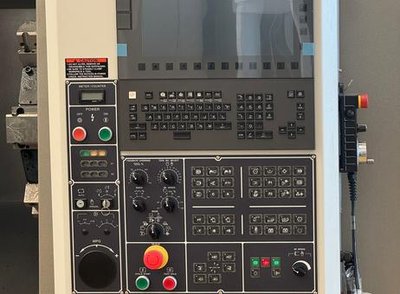

Numerical Control: FANUC 0i-TF
Display: 15'' color graphic display
Remote Handwheel: Yes
Manual Guide I: Yes
Max Turning Length: 548 mm
Distance Between Centers: 795 mm
Max Rotating Diameter: 600 mm
Max Turning Diameter: 460 mm
Spindle Hole: 88 mm
Bar Passage: 77 mm
Spindle Connection: ASA A2-8
Maximum Spindle Speed: 3,500 Rpm
Spindle Motor: 11 – 15 Kw
C Axis Positioning Precision: 0.001°
X-axis Travel: 310 mm
Z-axis Travel: 620 mm
Y-axis Travel: ±55 mm
B-axis Travel (Tailstock): 650 mm
Rapid Feeds XY: 20-20 m/min
Rapid Feeds ZB: 20-20 m/min
Tailstock Quill Type: MT 5
Machine Length: 3,026 mm + 850 mm chip conveyor
Machine Width: 1,992 mm
Machine Height: 2,130 mm
Weight: 6,500 kg
Complete with the Following Standard Accessories:

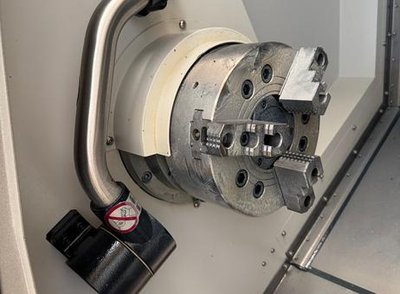

- Hydraulic chuck diameter 10'' Kitagawa, set of soft and hard jaws
- Hydraulic chuck control pedal
- Serial, Ethernet and USB outputs
- Belt chip conveyor and collection trolley
- Swivel tailstock
- 12-position motorized tool turret
- BMT 60 type tool holder attachment
- Motorized 4.5 Kw motor
- Max Motorized Speed: 6,000 Rpm
- Kit of 12 static tool holders (5+3+3+1)
- 3-color alarm and end-of-cycle light
- Work light integrated in the machine
- Support feet
- Box with service keys
- Oil separator
- Mobile coolant tank
- Centralized lubrication system
- Pedal for hydraulic spindle
- Current transformer
- Use and maintenance manuals, electrical diagrams and CNC manuals
- CE declaration
Accessories Included:
- Grundfos 9.5 bar cooling pump
- Renishaw automatic tool presetting
- In-cycle tailstock
- Air blow above spindle
- Data exchange preparation for Industry 4.0
- 1 straight motorized tool holder for BMT 60
- 1 angular motorized tool holder for BMT 60
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
