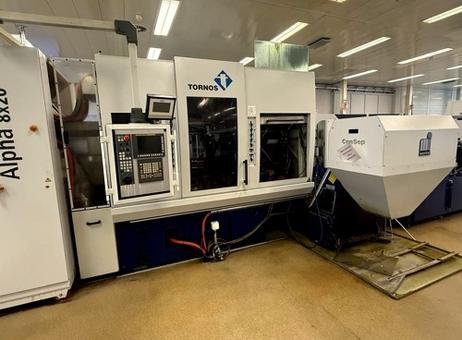

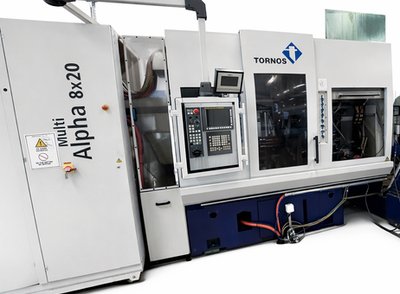

TORNOS MULTI ALPHA 8X20 CNC multi-spindle lathe

TORNOS MULTI ALPHA 8X20 CNC multi-spindle lathe
Verified seller
Price on request
Make an offer
Manufacturer
TORNOS
Model
MULTI ALPHA 8X20
Year
2008
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P260414146
Buy this machine
Language
Language
CNC многошпинделен струг TORNOS MULTI ALPHA 8X20
CNC vícevřetenový soustruh TORNOS MULTI ALPHA 8X20
TORNOS MULTI ALPHA 8X20 CNC fler-spindel drejebænk
TORNOS MULTI ALPHA 8X20 CNC-Mehrspindel-Drehmaschine
Πολυάξονος τόρνος CNC TORNOS MULTI ALPHA 8X20
TORNOS MULTI ALPHA 8X20 CNC multi-spindle lathe
Torno CNC multihusillo TORNOS MULTI ALPHA 8X20
Tour CNC multibroche TORNOS MULTI ALPHA 8X20
CNC viševreteni tokarski stroj TORNOS MULTI ALPHA 8X20
TORNOS MULTI ALPHA 8X20 CNC többorsós esztergagép
Tornio CNC plurimandrino TORNOS MULTI ALPHA 8X20
TORNOS MULTI ALPHA 8X20 CNC daugiaverpstės tekinimo staklės
TORNOS MULTI ALPHA 8X20 CNC-meerspillige draaibank
Tokarka CNC wielowrzecionowa TORNOS MULTI ALPHA 8X20
Torno CNC multifuso TORNOS MULTI ALPHA 8X20
Strung CNC multiax TORNOS MULTI ALPHA 8X20
TORNOS MULTI ALPHA 8X20 Многошпиндельный токарный станок с ЧПУ
CNC viševreteni strug TORNOS MULTI ALPHA 8X20
TORNOS MULTI ALPHA 8X20 CNC flerspindlig svarv
CNC çok milli torna TORNOS MULTI ALPHA 8X20
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
22 mm
Nbr of spindles
8
Max. length
100 mm
Type of CNC
Fanuc 30i-A
Nbr of axes
37
Number of tools
10
Spindle speed
8000 rpm
Spindle power
11.2 kW
-------------------
Length x width x height
4500.0
× 1900.0
× 2500.0
Weight
10998 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Datasheet
Tornos Multi Alpha - 8x20
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
The TORNOS MULTI ALPHA 8X20 is a CNC multi-spindle lathe designed for precision and efficiency in complex machining operations. Manufactured in 2008, this machine measures 4500 mm in length, 1900 mm in width, and 2500 mm in height, with a substantial weight of 10,998 kg, reflecting its robust construction.
Equipped with 8 spindles, it can handle bar diameters up to 22 mm and workpieces with a maximum length of 100 mm. The motorized spindles operate at speeds up to 8,000 rpm, powered by an 11.2 kW motor, providing significant machining capability. The lathe features 37 axes, including 28 linear and 9 rotary axes, allowing for complex multi-axis machining. Various slide travels are available: cross slide travel in X and Z axes are 50 mm and 80 mm respectively, with transversal slide travel in Y at 12 mm, and additional travels for final units and counter spindles enhancing its versatility.
This model includes a counter spindle with a maximum speed of 8,000 rpm and a 3.7 kW motor, as well as a drilling motor capable of speeds up to 8,000 rpm with power ratings between 6 and 12.1 kW. Backworking capabilities are supported by a 1.5 kW motor running at 8,000 rpm.

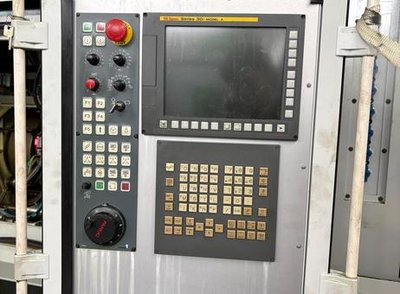

The lathe is controlled via a Fanuc 30i-A CNC system, programmed with the TB-DECO system, ensuring precise and flexible operation. The control panel is well-equipped, featuring a large GE Fanuc Series 30i Model A screen, multiple buttons, switches, and an emergency stop button for safety.

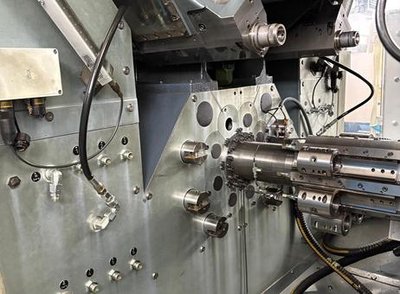

Additional features include spindle cooling and a coolant tank with a chip conveyor system for efficient chip removal. The machine's exterior and internal components are clean and well-maintained, with no visible damage. The multi-spindle turret includes multiple tool holders arranged in a circular pattern, supported by hydraulic and pneumatic lines with pressure labels. An arm holding a secondary monitor is mounted above the main control panel, enhancing operator convenience.
Overall, this TORNOS MULTI ALPHA 8X20 CNC lathe offers a comprehensive set of features for high-precision multi-spindle machining tasks, supported by robust construction and advanced control technology.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Offer Title: TORNOS MULTI ALPHA 8X20 CNC Multi-Spindle Lathe
Manufacturer: TORNOS
Model: MULTI ALPHA 8X20
Year of Manufacture: 2008
Technical Condition: Good
State: Visible
Dimensions:
Length: 4500.0 mm
Width: 1900.0 mm
Height: 2500.0 mm
Weight: 10998.0 kg
Specifications:
Number of Spindles: 8
Bar Diameter: ø 22 mm
Maximum Piece Length: 100 mm
Motorized Spindles:
Maximum Speed: 8,000 rpm
Power: 11.2 kW
Motorized Spindle Torque: 17 (25) Nm
Counter Spindle:
Maximum Speed: 8,000 rpm
Engine Power: 3.7 kW
Engine Torque: 8.3 Nm
Drilling Motor:
Maximum Speed: 8,000 (6,000) rpm
Power: 6 (12.1) kW
Drilling Motor Torque: 2 Nm
Backworking:
Maximum Engine Speed: 8,000 rpm
Motor Power: 1.5 kW
Rear Tool Motor Torque: 2 Nm
Axes and Races:
Number of Linear Axes: 28
Number of Rotary Axes: 9
Cross Slide Travel in X: 50 mm
Cross Slide Travel in Z: 80 mm
Transversal Slide Travel in Y: 12 mm
Final Unit Travel in Z: 200 mm
Final Drive Travel in Y: 13 mm
Tool Slide Travel (X7, X8): 65 mm
Counter Spindle Travel in Y: 280 mm
Counter Spindle Travel in Z: 450 mm
Rear Operations Tool Holder Stroke: 52 mm
Equipment:
Number of Tools for Rear Operations: 2 × 5 tools
Spindle Cooling: Yes
Numerical Control (CNC): Fanuc 30i-A
Programming System: TB-DECO
Other Accessories:
Coolant Tank – Chip Conveyor
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
