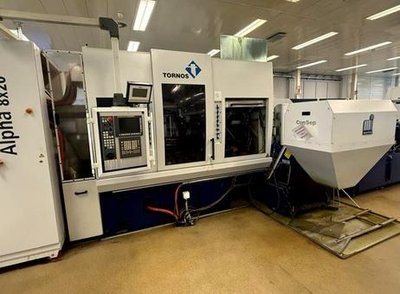

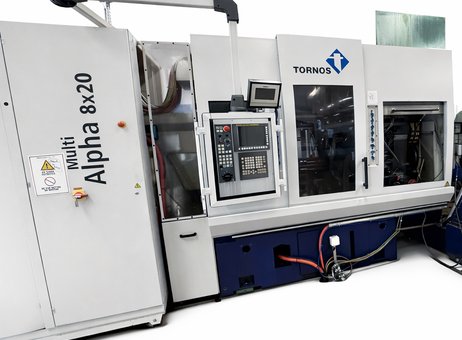

TORNOS multi Alpha 8x20 CNC multi-spindle lathe

TORNOS multi Alpha 8x20 CNC multi-spindle lathe
Verified seller
Price on request
Make an offer
Manufacturer
TORNOS
Model
multi Alpha 8x20
Year
2008
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P260319112
Buy this machine
Language
Language
CNC многошпинделен струг TORNOS multi Alpha 8x20
CNC vícevřetenový soustruh TORNOS multi Alpha 8x20
TORNOS multi Alpha 8x20 CNC fler-spindel drejebænk
TORNOS multi Alpha 8x20 CNC-Mehrspindel-Drehmaschine
Πολυάξονος τόρνος CNC TORNOS multi Alpha 8x20
TORNOS multi Alpha 8x20 CNC multi-spindle lathe
Torno CNC multihusillo TORNOS multi Alpha 8x20
Tour CNC multibroche TORNOS multi Alpha 8x20
CNC viševreteni tokarski stroj TORNOS multi Alpha 8x20
TORNOS multi Alpha 8x20 CNC többorsós esztergagép
Tornio CNC plurimandrino TORNOS multi Alpha 8x20
TORNOS multi Alpha 8x20 CNC daugiaverpstės tekinimo staklės
TORNOS multi Alpha 8x20 CNC-meerspillige draaibank
Tokarka CNC wielowrzecionowa TORNOS multi Alpha 8x20
Torno CNC multifuso TORNOS multi Alpha 8x20
Strung CNC multiax TORNOS multi Alpha 8x20
TORNOS multi Alpha 8x20 Многошпиндельный токарный станок с ЧПУ
CNC viševreteni strug TORNOS multi Alpha 8x20
TORNOS multi Alpha 8x20 CNC flerspindlig svarv
CNC çok milli torna TORNOS multi Alpha 8x20
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
22 mm
Nbr of spindles
8
Max. length
100 mm
Type of CNC
FANUC 30i
Nbr of axes
37
Number of tools
Spindle speed
8000 rpm
Spindle power
11.2 kW
-------------------
Length x width x height
-
× -
× -
Weight
kg
worked hours
hours under power
state
good
At local norms
---------
status
Datasheet
Tornos Multi Alpha - 8x20
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
The Tornos Multi Alpha 8x20 is a CNC multi-spindle lathe designed for high-precision machining. It features 8 motorized spindles capable of handling bar diameters up to 22 mm and maximum workpiece lengths of 100 mm. Each spindle operates at speeds up to 8,000 rpm, powered by an 11.2 kW motor delivering a torque of 17 to 25 Nm. The machine also includes a counterspindle with a maximum speed of 8,000 rpm, powered by a 3.7 kW motor with 8.3 Nm torque, enabling efficient secondary operations. For drilling tasks, it is equipped with a drilling motor capable of speeds up to 8,000 rpm (with an alternate speed of 6,000 rpm), providing power up to 12.1 kW and torque of 2 Nm. Rear working capabilities are supported by a motor reaching 8,000 rpm, with 1.5 kW power and 2 Nm torque. The lathe incorporates a complex axis system with 37 axes in total, including 28 linear and 9 rotary axes. Travel distances include 50 mm on the X-axis cross slide, 80 mm on the Z-axis cross slide, 12 mm on the Y-axis cross slide, and extended strokes on the end units and counter-spindle for versatile machining. The rear operations use two tool holders with 5 tools each, enhancing productivity. The spindle cooling system helps maintain optimal operating temperatures. Control is managed through a Fanuc 30i CNC system with TB-DECO programming, ensuring precise and flexible machining processes. The machine is housed within a large protective enclosure featuring a transparent window for safe monitoring of the machining area. The control panel is equipped with a screen, numerous buttons, and switches, complemented by an arm-mounted light or camera for enhanced visibility. A blue and metallic cooling or filtration unit with ventilation grid and control indicators is included, bearing electrical hazard warnings for safety. Overall, the Tornos Multi Alpha 8x20 presents a well-maintained and clean condition suitable for advanced multi-spindle turning operations.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
CAPACITY
Number of spindles: 8
Bar diameter: ø 22
Maximum workpiece length: 100 mm
MOTORIZED SPINDLES
Maximum speed of motorized spindles: 8,000 rpm
Motorized spindle power: 11.2 kW
Motorized spindle torque: 17 (25) Nm
COUNTERSPINDLE
Maximum counterspindle speed: 8,000 rpm
Counterspindle motor power: 3.7 kW
Counterspindle motor torque: 8.3 Nm
DRILLING MOTOR
Maximum drilling motor speed: 8,000 (6,000) rpm
Drilling motor power: 6 (12.1) kW
Drilling motor torque: 2 Nm
BACK WORKING
Maximum rear tool motor speed: 8,000 rpm
Rear tool motor power: 1.5 kW
Rear tool motor torque: 2 Nm
AXES AND TRAVELS
Number of linear axes: 28
Number of rotary axes: 9
X-axis cross slide stroke: 50 mm
Z-axis cross slide stroke: 80 mm
Y-axis cross slide stroke: 12 mm
Z-axis end unit stroke: 200 mm
Y-axis end unit stroke: 13 mm
Tool slide travel (X7, X8): 65 mm
Counter-spindle travel in Y: 280 mm
Counter-spindle travel in Z: 450 mm
Tool holder travel for secondary operations: 52 mm
SPECIFICATIONS
Number of tools for rear operations: 2 × 5 tools
Spindle cooling: Yes
Numerical control (CNC): Fanuc 30i
Programming system: TB-DECO
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
