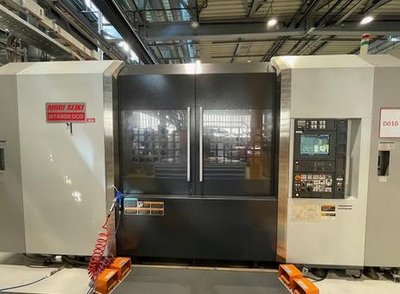

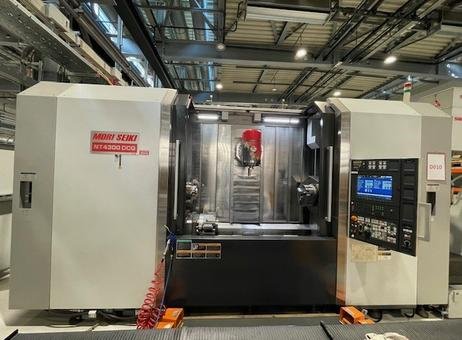

Used CNC-Lathe MORI-SEIKI NT 4300 DCG/1500SZ

Used CNC-Lathe MORI-SEIKI NT 4300 DCG/1500SZ
View price
Request price
+0049 21…
MORI-SEIKI
NT 4300 DCG/1500SZ
2006
Germany
Lathes - CNC lathes
Turning length
1498 mm
Turning Ø
750 mm
Ø above the bed
660 mm
Ø above transversing slide
275 mm
Type of CNC
Fanuc MSX-701
X-axis
750 mm
Z-axis
1635 mm
Spindle taper
Spindle bore
90 mm
Number of turrets
1
Number of tools on turret
10
Number of rotating tools
10
Turning speed
3000 rpm
Spindle motor power
22 kW
Tailstock
no
Bar feeder
no
Length x width x height
5268.0 × 3188.0 × 2767.0
Weight
26600 kg
13870 hours
48100 hours
good
visible
Datasheet
Mori Seiki NT 4300 DCG/1500SZ
18/08/2026
P260109109
The Mori Seiki NT 4300 DCG/1500SZ is a versatile 9-axis CNC turning and milling center designed for high-precision machining tasks. Manufactured in 2006, this machine features a robust construction with dimensions of approximately 5268 mm in length, 3188 mm in width, and 2767 mm in height, and it weighs 26,600 kg. Equipped with a Fanuc MSX-701 CNC control system, the machine offers advanced programming capabilities including islands and pocket programming, high-speed fixed cycles, program restart, and a program memory extension up to 8 MB. It also includes a 512 MB memory card for data storage. The lathe provides a maximum turning length of 1498 mm and a turning diameter of up to 660 mm above the bed. The spindle bore accommodates bar materials up to 90 mm in diameter. The machine’s travels include a 750 mm X-axis, 1635 mm Z-axis, and additional axes for complex machining operations, including a full 4th axis milling spindle (B axis) with precise positioning down to 0.0001 degrees. The main spindle motor delivers 22 kW of power with speeds ranging from 30 to 3000 rpm and a torque of 1000 Nm, matched by a subspindle motor of equal power and torque. The disc turret holds 10 driven tool positions capable of speeds up to 6000 rpm, while the milling spindle head uses HSK A63 tool holders with a maximum speed of 12,000 rpm and 18.5 kW drive power. Additional features include a 40-position tool magazine, two 3-jaw quick-change chucks, a KNOLL high-pressure coolant system with multiple pressure settings, chip conveyor, coolant gun with accessories, oil mist extraction, and a bar loader interface. The machine also has direct measuring systems on multiple axes for enhanced accuracy. Visual inspection confirms the machine is clean and well-maintained, with the enclosure featuring sliding doors and a visible control panel on the right side. Two chucks are visible inside, supporting main and subspindle operations. The exterior is in good condition, and the control panel is operational. This comprehensive setup makes the Mori Seiki NT 4300 DCG/1500SZ suitable for demanding machining tasks requiring simultaneous turning and milling with high precision and efficiency. 9-axis CNC turning and milling centre
* Fanuc MSX-701 CNC control
* Milling spindle at top (B axis), as full 4th axis, positioning 0.0001 deg. * 40-position tool magazine

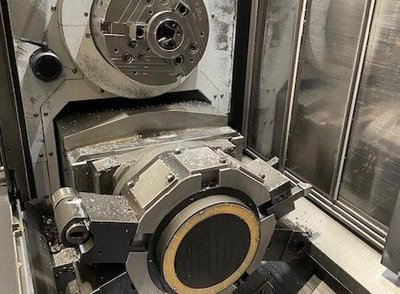

* 10-position turret at bottom, all positions driven
* 2 x 3-jaw quick-change chuck KNCS-N 315/91
* KNOLL high-pressure coolant system, pressure setting 12/25/35/45/55/62 and 72 bar, with maintenance-free rotary filter system
* Chip conveyor
* Drain system for main spindle chuck (controlled via M function)
* Drain system for tool cutting edge (controlled via M function)
* Coolant gun incl. accessories
* Oil mist extraction
* Direct measuring system X1, X2, Y-axis
* Bar loader interface
* Double foot switch for both spindles
* Islands and pocket programming for MAPPS
* High-speed fixed cycle for MAPPS
* Programm memory extension to 8 MB
* Programm restart
* 3-stage signal lamp
* 512 MB memory card (CF card)
Swing diameter via cross slide (tool spindle 1): 750 mm
Swing diameter over cross slide (turret 2): 400 mm
Max. turning diameter (tool spindle 1): 660 mm
Max. turning diameter (turret 2): 275 mm
Max. machined workpiece length: 1498 mm
Max. bar material: 90 mm
Travels:
X1 axis (tool spindle): 750 mm
Y axis (tool spindle): 420 (+/- 210) mm
Z1 axis (tool spindle): 1635 + 100 mm for tool change
B axis (tool spindle): +/- 120 deg., full B-axis 1 deg. indexed and 0.0001 deg. braked
X2 axis (turret): 195 mm
Z2 axis (turret): 1525 mm
SZ axis (subspindle): 1610 mm
Rapid traverse: (X1,Z1) 50 m/min. / (Y,X2,Z2,SZ) 30 m/min. Main and subspindle:
Spindle speeds infinitely variable (spindle 1 + 2): 30-3000 rpm. C axis (spindle 1 + 2): 0.001 deg. Main spindle motor: 22/18.5 kW
Subspindle motor: 22/18.5 kW
Torque (spindle 1 + 2): 1000 Nm
Disc turret:
Number of tool positions: 10
Speed of driven tools: 6000 rpm. Drive power: 5.5/3.7 kW

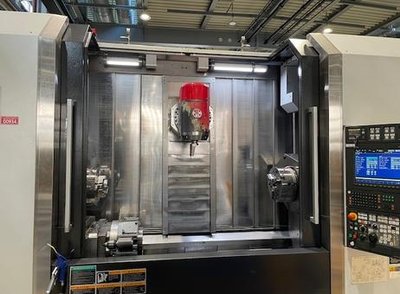

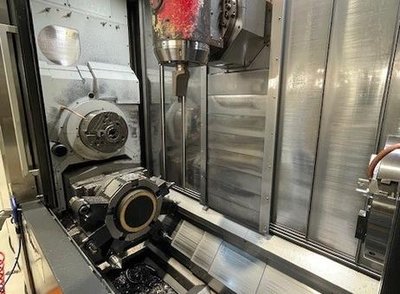

Milling spindle head:
Tool holder: HSK A63
Max. speed: 12,000 rpm
Drive power: 18.5/11 kW
Torque: 120/44 Nm
Tool changer: 40-stations
Tool diameter 70/140 mm
Tool length 400 mm
Tool weight 8/10 kg
Total power requirement 90 kVA
Main dimensions Length x width x height 5301 x 2997 x 2788 mm
Machine weight 26.6 t
Accessories:
Measuring arm (picture) tool measurement in machine
Tool holder + box, reduction sleeves, driven tools
Clamping jaws package
Collets package
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2020
