VDF BOEHRINGER DUS 560 Ti

VDF BOEHRINGER DUS 560 Ti
Verified seller
25,000 €
Make an offer
Manufacturer
VDF Boehringer
Model
DUS 560 TI
Year
2000
Location
Netherlands
Category
Lathes - CNC lathes
Product id
P260413099
Buy this machine
Language
Language
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
Get price & details
+316 22 …
Show phone
Details
About this seller
Specifications
Turning length
2000 mm
Ø above the bed
570 mm
Ø above transversing slide
365 mm
Type of CNC
Spindle taper
Spindle bore
62 mm
Number of tools on turret
2
Turning speed
2500 rpm
Spindle motor power
19 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
5000.0
× 2100.0
× 2000.0
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Vdf Boehringer DUS 560 Ti
Last availability date
01/05/2026
Show more
Automatic description (AI-Generated)
This listing features a VDF Boehringer DUS 560 TI CNC turning lathe, a well-regarded model known for its effective machining capabilities, especially suitable for single pieces and small series production. Manufactured in 2000, this machine offers a substantial turning length of 2000 mm and a turning diameter over the bed of 570 mm, with a maximum turning diameter above the cross slide of 365 mm. The spindle bore measures 62 mm, and the spindle motor delivers 19 kW of power, providing robust performance for various turning tasks.
The lathe measures 5000 mm in length, 2100 mm in width, and 2000 mm in height. It is equipped with a Siemens 810D control system, ensuring precise and reliable CNC operation. The machine includes a turret with Multifix mounting and one turret position, along with a tailstock taper MK5. The spindle speed ranges from 3 to 2500 rpm, supporting a wide range of machining requirements.

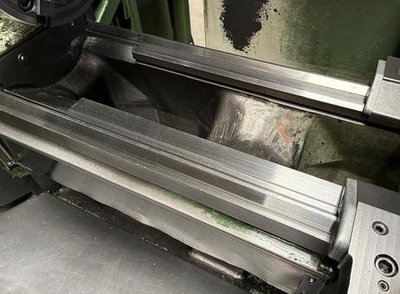

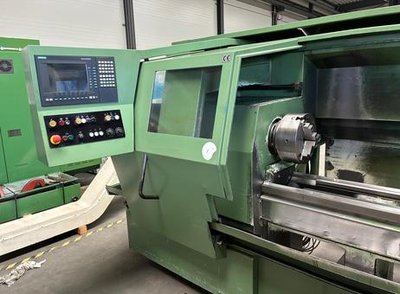

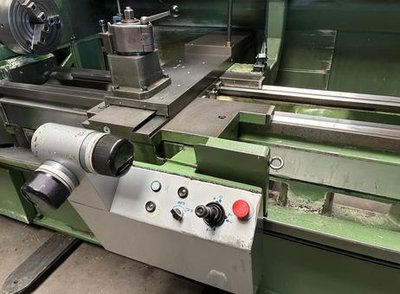

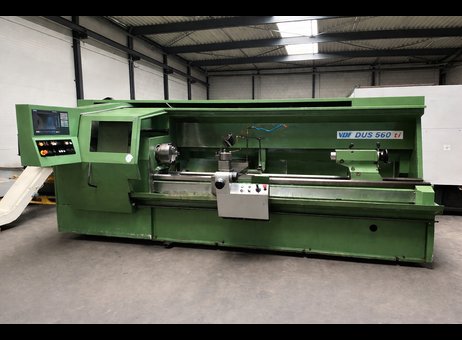

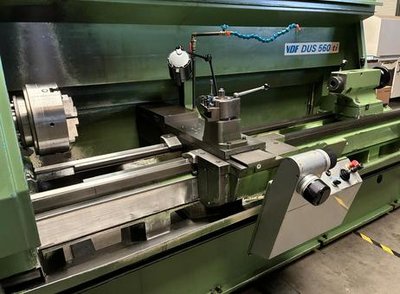

Visible components include the lathe bed with carriage and tailstock, a control panel, and a chuck on the left side. A coolant hose with a nozzle is positioned above the carriage to assist in cooling during operation. The machine shows signs of use, with some surface wear and paint chipping noted on the lower front panel, indicating it is a used machine but without further information on operational status.
Standard delivery includes original documentation, a set of tool holders with a drill chuck, a fixed visor, and a Forkardt 315-F 3-jaw chuck with a diameter of 315 mm. This machine is currently displayed in the showroom, and viewing on location is possible for interested buyers. This lathe is a solid choice for those seeking a versatile and capable CNC turning machine from a reputable manufacturer.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
1. CNC Turning
The VDF Boehringer DUS 560 Ti are the most popular teach-in turning machines from VDF Boehringer in terms of turning diameter. With a standard chuck size of 315mm or more, these machines offer optimal machining efficiency for the production of single pieces and small series.
This machine is currently displayed in our showroom, viewing on location is possible!
Standard delivery includes:
- Original documentation
- Set of tool holders + drill chuck
- Fixed visor
- Forkardt 315-F 3-jaw Ø315mm
Weight & dimensions:
- 5,500 kg
- 5000 x 2,100 x 2,000 (LxWxH)
For all specifications of this machine, see the last images!
Turning diameter Over Bed: 570 mm
Max Turning diameter Over Cross Slide: 365 mm
Max Turning length: 2000 mm
Feed Rapid Traverse X Y Z: X: 5 m/min, Z: 10 m/min
Passage: 62 mm
Speed Min Max: 3 - 2500 rpm
Spindle power: 19 kW
Spindle taper: DIN 55 027 Gr. 8
Turret mounting: Multifix
Turret positions: 1
Tailstock taper: MK5
Control Brand Type: Siemens 810D
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
