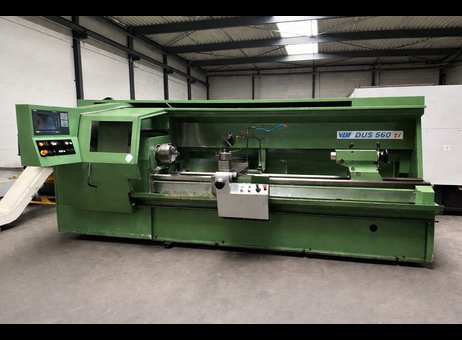

VDF BOEHRINGER DUS 560 Ti

VDF BOEHRINGER DUS 560 Ti
Verified seller
Price on request
View price
Manufacturer
VDF Boehringer
Model
DUS 560 TI
Year
2000
Location
Netherlands
Category
Lathes - CNC lathes
Product id
P260610099
Buy this machine
Language
Language
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti
Get price & details
+316 22 …
Show phone
Details
About this seller
Specifications
Turning length
2000 mm
Turning Ø
570 mm
Ø above the bed
570 mm
Ø above transversing slide
365 mm
Length between centers
mm
Type of CNC
X-axis
mm
Z-axis
mm
Max workpiece weight
kg
Spindle taper
Spindle bore
62 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
2500 rpm
Spindle motor power
19 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
5000.0
× 2100.0
× 2000.0
Weight
5500 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Vdf Boehringer DUS 560 Ti
Last availability date
10/06/2026
Show more
Automatic description (AI-Generated)
This listing features a VDF Boehringer DUS 560 Ti CNC turning lathe, manufactured in the year 2000. The machine is designed for precision turning operations with a maximum turning diameter above the bed of 570 mm and a maximum turning diameter over the cross slide of 365 mm. It offers a turning length of up to 2000 mm, suitable for various workpiece sizes.
The lathe is equipped with a spindle bore measuring 62 mm and a spindle motor power of 19 kW, providing robust performance for machining tasks. The spindle speed ranges from a minimum of 3 rpm up to a maximum of 2500 rpm, allowing for versatile operation across different materials and cutting conditions.
The machine dimensions are 5000 mm in length, 2100 mm in width, and 2000 mm in height, with a total weight of approximately 5500 kg. This substantial size and weight reflect its industrial-grade build quality.
Control is managed via a Siemens 810D CNC system, known for reliable and user-friendly operation. The lathe features a Multifix turret mount with one turret position, and the tailstock mount is of type MK5, facilitating support for longer workpieces.

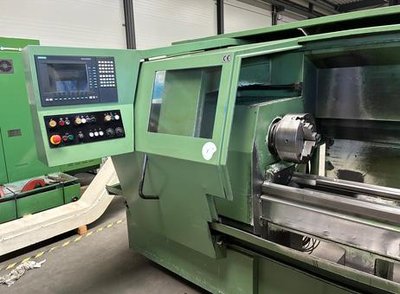

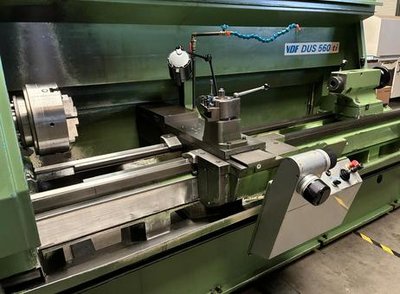

The machine includes a protective enclosure with transparent doors, enhancing operator safety while allowing visibility of the machining process. A chuck is mounted on the spindle for secure workpiece holding, and a tailstock is positioned on the right side to support the workpiece during turning operations. Additionally, a coolant hose is installed above the tool post area to assist in temperature control and chip removal during machining.
This VDF Boehringer DUS 560 Ti is suitable for producing single pieces and small series, offering efficient machining capabilities for various industrial applications. Original documentation and a set of tool holders, including a drill chuck, are part of the standard delivery package.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
1. cnc turning
The VDF Boehringer DUS 560 Ti are the most popular teach-in turning machines from VDF Boehringer in terms of turning diameter. With a standard chuck size of 315mm or more, these machines offer optimal machining efficiency for the production of single pieces and small series.
This machine is currently set up in our showroom, viewing on location is possible!
Standard delivery includes:
- Original documentation
- Set of tool holders + drill chuck
- Fixed visor
- Forkardt 315-F 3-jaw Ø315mm
Weight & dimensions:
- 5,500 kg
- 5000 x 2,100 x 2,000 (LxWxH)
For all specifications of this machine, see the last images!
Swing diameter above bed: 570 mm
Max turning diameter over cross slide: 365 mm
Max turning length: 2000 mm
Rapid feed X Y Z: X: 5 m/min, Z: 10 m/min
Through hole diameter: 62 mm
Speed Min Max: 3 - 2500 rpm
Spindle power: 19 kW
Spindle nose: DIN 55 027 Gr. 8
Turret mount: Multifix
Turret positions: 1
Tailstock mount: MK5
Control brand type: Siemens 810D
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2020
Offers online
42
Last activity
June 10, 2026
Keetels Machines Bv
Verified seller
Keetels Machines Bv, based in the Netherlands, is a leading innovator in the manufacturing of high-quality machinery tailored for the food processing industry. With decades of experience, Keetels has established itself as a trusted partner for businesses looking to enhance their production capabilities. The company specializes in designing and producing advanced equipment that meets the diverse needs of its clients, ensuring efficiency and reliability in every operation. At Keetels, the commitment to quality is paramount. The company employs cutting-edge technology and adheres to stringent quality control measures to deliver machinery that not only meets but exceeds industry standards. Their product range includes state-of-the-art machines for various food processing applications, enabling clients to optimize their workflows and improve overall productivity. Customer satisfaction is at the heart of Keetels' philosophy. The company prides itself on its ability to provide tailored solutions that cater to the specific requirements of each client. With a dedicated team of experts, Keetels offers comprehensive support, from initial consultation to after-sales service, ensuring that clients receive the best possible experience. In a rapidly evolving industry, Keetels Machines Bv stands out as a forward-thinking company that embraces innovation while maintaining a strong focus on customer needs. Partnering with Keetels means investing in quality, efficiency, and the future of food processing.
Seller's description
1. cnc turning
The VDF Boehringer DUS 560 Ti are the most popular teach-in turning machines from VDF Boehringer in terms of turning diameter. With a standard chuck size of 315mm or more, these machines offer optimal machining efficiency for the production of single pieces and small series.
This machine is currently set up in our showroom, viewing on location is possible!
Standard delivery includes:
- Original documentation
- Set of tool holders + drill chuck
- Fixed visor
- Forkardt 315-F 3-jaw Ø315mm
Weight & dimensions:
- 5,500 kg
- 5000 x 2,100 x 2,000 (LxWxH)
For all specifications of this machine, see the last images!
Swing diameter above bed: 570 mm
Max turning diameter over cross slide: 365 mm
Max turning length: 2000 mm
Rapid feed X Y Z: X: 5 m/min, Z: 10 m/min
Through hole diameter: 62 mm
Speed Min Max: 3 - 2500 rpm
Spindle power: 19 kW
Spindle nose: DIN 55 027 Gr. 8
Turret mount: Multifix
Turret positions: 1
Tailstock mount: MK5
Control brand type: Siemens 810D
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
