VDF BOEHRINGER DUS 560 Ti cnc lathe

VDF BOEHRINGER DUS 560 Ti cnc lathe
Verified seller
35,000 €
Make an offer
Manufacturer
VDF BOEHRINGER
Model
DUS 560 Ti
Year
2005
Location
Netherlands
Category
Lathes - CNC lathes
Product id
P250901007
Buy this machine
Language
Language
cnc струг VDF BOEHRINGER DUS 560 Ti
Soustruh cnc VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti cnc drejebænk
VDF BOEHRINGER DUS 560 Ti Drehmaschine CNC
cnc τόρνος VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti cnc lathe
Torno cnc VDF BOEHRINGER DUS 560 Ti
Tour cnc VDF BOEHRINGER DUS 560 Ti
cnc tokarski stroj VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti cnc eszterga
Tornio cnc VDF BOEHRINGER DUS 560 Ti
cnc tekinimo staklės VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti cnc-draaibank
Tokarka CNC VDF BOEHRINGER DUS 560 Ti
Torno CNC VDF BOEHRINGER DUS 560 Ti
strung cnc VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti Токарный станок с ЧПУ
cnc strug VDF BOEHRINGER DUS 560 Ti
VDF BOEHRINGER DUS 560 Ti cnc svarv
Cnc torna VDF BOEHRINGER DUS 560 Ti
Get price & details
+316 22 …
Show phone
Details
About this seller
Specifications
Turning length
3000 mm
Ø above the bed
570 mm
Ø above transversing slide
365 mm
Type of CNC
Heidenhain manual plus 4110
Spindle taper
DIN 55 027 Gr. 8
Spindle bore
62 mm
Number of tools on turret
2
Turning speed
2500 rpm
Spindle motor power
19 kW
Tailstock
no
Bar feeder
no
-------------------
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Vdf Boehringer DUS 560 Ti
Last availability date
01/05/2026
Show more
Automatic description (AI-Generated)
The VDF BOEHRINGER DUS 560 Ti is a robust CNC lathe designed for efficient machining of single pieces and small series, especially suitable for turning diameters up to 570 mm above the bed. Manufactured in 2005, this model features a maximum turning length of 3000 mm, allowing for the processing of longer workpieces. It is equipped with a powerful 19 kW spindle motor, delivering speeds up to 2500 rpm, which supports a wide range of machining operations.
This lathe includes a 2-position Multifix turret, enabling the use of two tools for versatile turning tasks. The machine's spindle is compatible with DIN 55 027 Gr. 8 standards, and it features a passage diameter of 62 mm. The counter spindle recording is of type MK5, ensuring precise workpiece support.

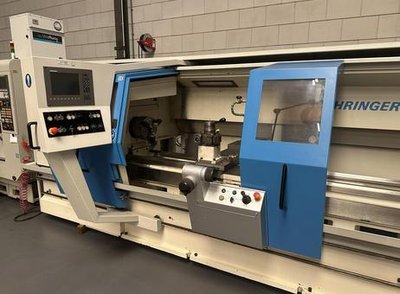

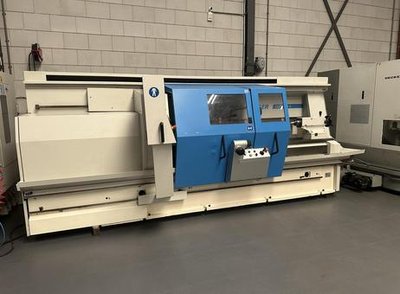

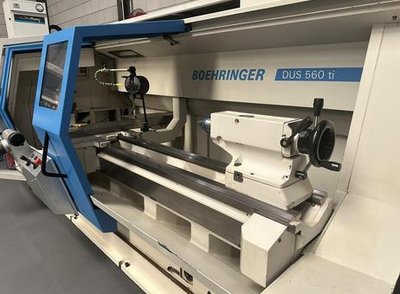

Control is managed via a Heidenhain Manual Plus 4110 system, providing reliable and user-friendly operation. The machine's working area is enclosed by protective blue doors with transparent windows, enhancing safety while allowing clear visibility of the machining process. A tailstock with a handwheel is installed on the right side inside the working area, offering additional support for workpieces.

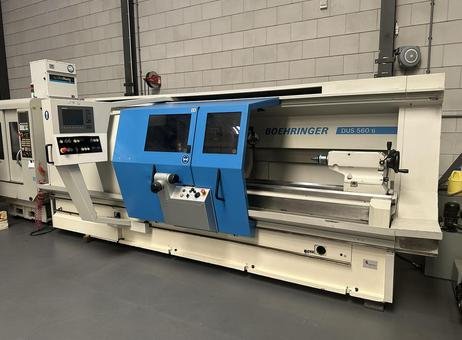

The lathe bears clear branding with the BOEHRINGER name and model DUS 560 Ti marked on its body. The control panel is positioned on the left side, featuring a screen and multiple buttons for comprehensive machine control. This machine is currently displayed in the showroom, with on-site viewing available upon request.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
The VDF 560 DUS are VDF Boehringer's most popular teach-in lathes in terms of turning diameter. With a standard chuck size of 315 mm or more, these machines offer optimal machining efficiency for the production of single pieces and small series.
This machine is currently on display in our showroom, but on-site viewing is possible!
Maximum turning diameter 570 mm
Max. turning length 3000 mm
Passage 62mm
Speed ​​​​(min-max) 3 - 2500 rpm
Spindle power 19 kW
Spindle recording DIN 55 027 Gr. 8
Recording turret Multifix
Turret positions 2
Recording counter center MK5
Control brand/type Heidenhain Manual Plus 4110
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2020
Offers online
53
Last activity
May 7, 2026
Keetels Machines Bv
Verified seller
Keetels Machines Bv, based in the Netherlands, is a leading innovator in the manufacturing of high-quality machinery tailored for the food processing industry. With decades of experience, Keetels has established itself as a trusted partner for businesses looking to enhance their production capabilities. The company specializes in designing and producing advanced equipment that meets the diverse needs of its clients, ensuring efficiency and reliability in every operation. At Keetels, the commitment to quality is paramount. The company employs cutting-edge technology and adheres to stringent quality control measures to deliver machinery that not only meets but exceeds industry standards. Their product range includes state-of-the-art machines for various food processing applications, enabling clients to optimize their workflows and improve overall productivity. Customer satisfaction is at the heart of Keetels' philosophy. The company prides itself on its ability to provide tailored solutions that cater to the specific requirements of each client. With a dedicated team of experts, Keetels offers comprehensive support, from initial consultation to after-sales service, ensuring that clients receive the best possible experience. In a rapidly evolving industry, Keetels Machines Bv stands out as a forward-thinking company that embraces innovation while maintaining a strong focus on customer needs. Partnering with Keetels means investing in quality, efficiency, and the future of food processing.
Seller's description
The VDF 560 DUS are VDF Boehringer's most popular teach-in lathes in terms of turning diameter. With a standard chuck size of 315 mm or more, these machines offer optimal machining efficiency for the production of single pieces and small series.
This machine is currently on display in our showroom, but on-site viewing is possible!
Maximum turning diameter 570 mm
Max. turning length 3000 mm
Passage 62mm
Speed ​​​​(min-max) 3 - 2500 rpm
Spindle power 19 kW
Spindle recording DIN 55 027 Gr. 8
Recording turret Multifix
Turret positions 2
Recording counter center MK5
Control brand/type Heidenhain Manual Plus 4110
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Specifications
Turning length
3000 mm
Ø above the bed
570 mm
Ø above transversing slide
365 mm
Type of CNC
Heidenhain manual plus 4110
Spindle taper
DIN 55 027 Gr. 8
Spindle bore
62 mm
Number of tools on turret
2
Turning speed
2500 rpm
Spindle motor power
19 kW
Tailstock
no
Bar feeder
no
-------------------
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Vdf Boehringer DUS 560 Ti
Last availability date
01/05/2026
Show more
Automatic description (AI-Generated)
The VDF BOEHRINGER DUS 560 Ti is a robust CNC lathe designed for efficient machining of single pieces and small series, especially suitable for turning diameters up to 570 mm above the bed. Manufactured in 2005, this model features a maximum turning length of 3000 mm, allowing for the processing of longer workpieces. It is equipped with a powerful 19 kW spindle motor, delivering speeds up to 2500 rpm, which supports a wide range of machining operations.
This lathe includes a 2-position Multifix turret, enabling the use of two tools for versatile turning tasks. The machine's spindle is compatible with DIN 55 027 Gr. 8 standards, and it features a passage diameter of 62 mm. The counter spindle recording is of type MK5, ensuring precise workpiece support.
Control is managed via a Heidenhain Manual Plus 4110 system, providing reliable and user-friendly operation. The machine's working area is enclosed by protective blue doors with transparent windows, enhancing safety while allowing clear visibility of the machining process. A tailstock with a handwheel is installed on the right side inside the working area, offering additional support for workpieces.
The lathe bears clear branding with the BOEHRINGER name and model DUS 560 Ti marked on its body. The control panel is positioned on the left side, featuring a screen and multiple buttons for comprehensive machine control. This machine is currently displayed in the showroom, with on-site viewing available upon request.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
