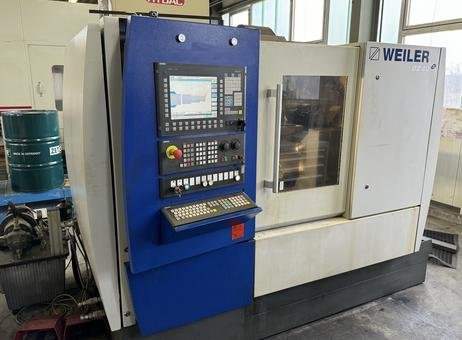

WEILER DZ 40 ARY CNC lathe

WEILER DZ 40 ARY CNC lathe
Verified seller
Price on request
Make an offer
Manufacturer
WEILER
Model
DZ 40 ARY
Year
2008
Location
Germany
Category
Lathes - CNC lathes
Product id
P260622054
Buy this machine
Language
Language
CNC струг WEILER DZ 40 ARY
CNC soustruh WEILER DZ 40 ARY
WEILER DZ 40 ARY CNC-drejebænk
WEILER DZ 40 ARY CNC-Drehmaschine
Τόρνος CNC WEILER DZ 40 ARY
WEILER DZ 40 ARY CNC lathe
Torno CNC WEILER DZ 40 ARY
Tour CNC WEILER DZ 40 ARY
CNC tokarski stroj WEILER DZ 40 ARY
WEILER DZ 40 ARY CNC esztergagép
Tornio CNC WEILER DZ 40 ARY
WEILER DZ 40 ARY CNC tekinimo staklės
WEILER DZ 40 ARY CNC-draaibank
Tokarka CNC WEILER DZ 40 ARY
Torno CNC WEILER DZ 40 ARY
Strung CNC WEILER DZ 40 ARY
WEILER DZ 40 ARY Токарный станок с ЧПУ
CNC strug WEILER DZ 40 ARY
WEILER DZ 40 ARY CNC-svarv
CNC torna WEILER DZ 40 ARY
Get price & details
+49 71 7…
Show phone
Details
About this seller
Specifications
Type of CNC
Spindle taper
Tailstock
no
Bar feeder
no
-------------------
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
visible
Datasheet
Weiler DZ 40 ARY
Last availability date
23/06/2026
Show more
Automatic description (AI-Generated)
This listing features a WEILER DZ 40 ARY CNC lathe, manufactured in 2008, equipped with a SIEMENS SINUMERIK 840D CNC control system including SHOPTURN software. The machine is designed for precision turning with a maximum turning diameter of 180 mm and a maximum swing diameter of 560 mm, suitable for various machining tasks.
The lathe offers substantial travel capabilities with 200 mm along the X-axis, 350 mm along the Z-axis, and a Y-axis travel of ±25 mm. It includes a programmable tailstock (Q-axis) with a travel range of 360 mm, facilitating complex machining operations. The tailstock is compatible with MK 4 tooling.
The main spindle features a bar passage diameter of 42 mm and a spindle bore of 52 mm, allowing for versatile workpiece sizes. Rapid feed rates are 30 m/min for both the X and Z axes and 20 m/min for the Q-axis, enabling efficient machining cycles.
The lathe is equipped with a 16-station tool turret, where all stations are powered, and uses VDI 25 tool holders with a shank diameter of 25 mm. Powered tools can operate at speeds up to 4,500 rpm, enhancing the machine's capability for various cutting and milling operations.
In terms of dimensions, the machine measures approximately 3,300 mm in length, 2,000 mm in width, and 2,300 mm in height, with an estimated weight of around 5,000 kg.
Included equipment comprises the SIEMENS SINUMERIK 840D CNC control with SHOPTURN, Y-axis functionality, programmable tailstock, a fully powered 16-station tool turret, a parts tray, and various tool holders and accessories. This setup supports a wide range of precision machining applications in an industrial setting.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
cnc lathes
CNC lathe
WEILER DZ 40 ARY
Year of manufacture 2008

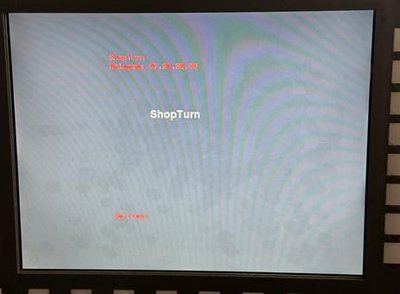

CNC control SIEMENS 840D with SHOPTURN
Technical data:
Max. turning diameter: 180 mm
Max. swing diameter: 560 mm
Travel X-axis: 200 mm
Travel Z-axis: 350 mm
Y-axis: ±25 mm
Programmable tailstock (Q-axis)
Travel Q-axis: 360 mm
Tailstock: MK 4

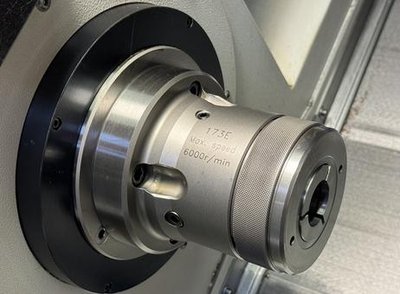

Main spindle – bar passage: 42 mm
Spindle bore: 52 mm
Rapid feed X / Z / Q: 30 / 30 / 20 m/min

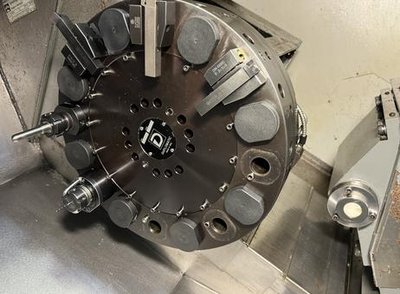

Tool turret: 16-station, all stations powered
Tool holder: VDI 25
Shank diameter: 25 mm
Speed of powered tools: up to 4,500 rpm
Dimensions (approx.):
Length: 3,300 mm
Width: 2,000 mm
Height: 2,300 mm
Weight: approx. 5,000 kg
Equipment:
- SIEMENS SINUMERIK 840D CNC control with SHOPTURN
- Y-axis
- Programmable tailstock
- 16-station tool turret with powered tools
- Parts tray
- Various tool holders and accessories
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
