WICKMAN 1“ 3/8 -6 CNC Multispindle automatic lathe

WICKMAN 1“ 3/8 -6 CNC Multispindle automatic lathe
Verified seller
Price on request
View price
Manufacturer
WICKMAN
Model
1“ 3/8 -6 CNC
Year
2007
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P240410157
Buy this machine
Language
Language
Многошпинделен автоматичен струг WICKMAN 1“ 3/8 -6 CNC
Multivřetenový automatický soustruh WICKMAN 1“ 3/8 -6 CNC
WICKMAN 1“ 3/8 -6 CNC Multispindlet automatisk drejebænk
WICKMAN 1“ 3/8 -6 CNC Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων WICKMAN 1“ 3/8 -6 CNC
WICKMAN 1“ 3/8 -6 CNC Multispindle automatic lathe
Torno multihusillos automático WICKMAN 1“ 3/8 -6 CNC
Tour multibroche WICKMAN 1“ 3/8 -6 CNC
Viševreteni automatski strug WICKMAN 1“ 3/8 -6 CNC
WICKMAN 1“ 3/8 -6 CNC Többorsós automata eszterga
Tornio multimandrino WICKMAN 1“ 3/8 -6 CNC
Daugialypės automatinės tekinimo staklės WICKMAN 1“ 3/8 -6 CNC
WICKMAN 1“ 3/8 -6 CNC Meerassige automatische draaibank
Wielowrzecionowy automat tokarski WICKMAN 1“ 3/8 -6 CNC
Torno automático multifuso WICKMAN 1“ 3/8 -6 CNC
Strung automat cu mai multe arbori WICKMAN 1“ 3/8 -6 CNC
WICKMAN 1“ 3/8 -6 CNC Многошпиндельный токарный станок
Automatski strug sa više vretena WICKMAN 1“ 3/8 -6 CNC
WICKMAN 1“ 3/8 -6 CNC Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı WICKMAN 1“ 3/8 -6 CNC
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
35 mm
Nbr of spindles
6
Type of CNC
Spindle speed
2000 rpm
-------------------
Length x width x height
1400.0
× 3930.0
× 2200.0
Weight
8100 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This listing features a Wickman multispindle automatic lathe, model 1" 3/8 -6 CNC, manufactured in 2007. It is a CNC type lathe equipped with six spindles, designed for high precision and efficiency in machining operations. The machine accommodates bar sizes with a maximum diameter of 35 mm for round bars, 30.2 mm for hexagonal bars, and 24.6 mm for square bars. The independent slide has a travel range of 0 to 89 mm, while the hexagonal support feeding travel also ranges from 0 to 89 mm. The approaching travel for the hexagonal bar is 89 mm under normal conditions and 63 mm for the hexagonal special. Cross slide feeding travels are divided into three parts: lower slide with 0 to 32 mm, upper slide with 0 to 48 mm, and middle slide with 0 to 22 mm.
The lathe is powered by a 15 kW motor running at 1450 rpm. The spindle speed ranges from 132 to 2000 rpm, offering 28 different speeds. Normal idle times are approximately 2 seconds. Additional features include a pick-up sub spindle, threading device SACO, CNC slide, and a chips conveyor system. The machine comes with tubes and a stand, with overall dimensions including these accessories measuring 1400 mm in length and 3930 mm in width, and a height of 2200 mm. The total weight is approximately 8100 kg.

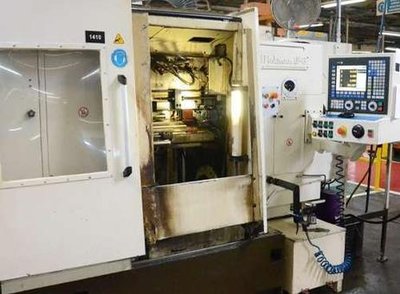

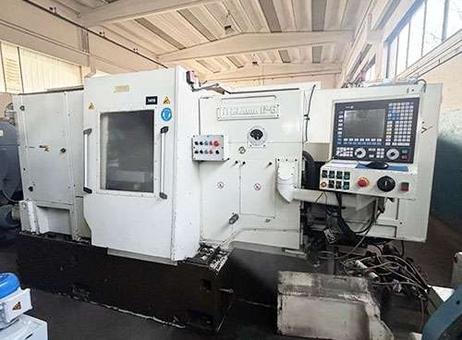

The machine has an enclosed work area with a safety window on the left side, enhancing operator safety. The control panel is located on the right side and features a screen, multiple buttons, knobs, and an emergency stop button for immediate shutdown if necessary. Inside the working area, illumination lighting is provided to improve visibility during operation. A flexible hose is attached to the top of the machine, likely for ventilation or dust extraction purposes. The machine appears clean and well-maintained externally, with no visible damage; however, the interior shows signs of use with some dirt and residue, which is typical for used industrial equipment.
Electric drawings and various accessories are included with the machine, supporting installation and operation. This lathe is suitable for precision multispindle machining tasks requiring a robust and versatile CNC solution.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
6 spindles
Bar size diameter: round 35 mm, hexagonal 30,2 mm, square 24,6 mm
Indipendent slide 0-89 mm
Feeding travel of the hexagonal support 0-89 mm
Approaching travel of the hexagonal: normal 89 mm, hexagonal special 63 mm
Feeding travel cross slides: lower 0-32 mm, upper 0-48 mm, middle 0-22 mm
Motor 15 kw at 1450 rpm
Spindles normal speed 132-2000 rpm
No. of speed 28
Normal idle times 2 sec
Pick up sub spindle. Threading device SACO. CNC slide. Tubes and stand. Dimension with tubes/stand 1400×6442 mm. Electric drawings. Chips conveyor. Accessories.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2013
Offers online
98
Last activity
May 6, 2026
ALMA SRL
Verified seller
ALMA SRL is a distinguished Italian company renowned for its innovative solutions in the field of industrial automation and technology. With a commitment to excellence and a passion for engineering, ALMA has established itself as a leader in providing cutting-edge machinery and systems that enhance productivity and efficiency across various sectors. Founded with the vision of transforming traditional manufacturing processes, ALMA SRL specializes in the design and production of advanced equipment tailored to meet the unique needs of its clients. Their extensive product range includes state-of-the-art cutting systems, automation solutions, and software applications that streamline operations and optimize performance. What sets ALMA apart is its unwavering dedication to quality and customer satisfaction. The company prides itself on its ability to deliver customized solutions that not only meet but exceed client expectations. With a team of highly skilled professionals and a robust research and development department, ALMA continuously pushes the boundaries of technology to provide innovative solutions that drive success. As a trusted partner in the industrial sector, ALMA SRL is committed to fostering long-term relationships with its clients, ensuring they receive the support and expertise needed to thrive in a competitive market. Whether you are looking to enhance your production capabilities or implement the latest automation technologies, ALMA SRL is your go-to partner for excellence in industrial solutions.
Seller's description
6 spindles
Bar size diameter: round 35 mm, hexagonal 30,2 mm, square 24,6 mm
Indipendent slide 0-89 mm
Feeding travel of the hexagonal support 0-89 mm
Approaching travel of the hexagonal: normal 89 mm, hexagonal special 63 mm
Feeding travel cross slides: lower 0-32 mm, upper 0-48 mm, middle 0-22 mm
Motor 15 kw at 1450 rpm
Spindles normal speed 132-2000 rpm
No. of speed 28
Normal idle times 2 sec
Pick up sub spindle. Threading device SACO. CNC slide. Tubes and stand. Dimension with tubes/stand 1400×6442 mm. Electric drawings. Chips conveyor. Accessories.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
