WICKMAN 1“-6 Multispindle automatic lathe

WICKMAN 1“-6 Multispindle automatic lathe
Verified seller
Price on request
Make an offer
Manufacturer
WICKMAN
Model
1“-6
Year
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P240326305
Buy this machine
Language
Language
Многошпинделен автоматичен струг WICKMAN 1“-6
Multivřetenový automatický soustruh WICKMAN 1“-6
WICKMAN 1“-6 Multispindlet automatisk drejebænk
WICKMAN 1“-6 Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων WICKMAN 1“-6
WICKMAN 1“-6 Multispindle automatic lathe
Torno multihusillos automático WICKMAN 1“-6
Tour multibroche WICKMAN 1“-6
Viševreteni automatski strug WICKMAN 1“-6
WICKMAN 1“-6 Többorsós automata eszterga
Tornio multimandrino WICKMAN 1“-6
Daugialypės automatinės tekinimo staklės WICKMAN 1“-6
WICKMAN 1“-6 Meerassige automatische draaibank
Wielowrzecionowy automat tokarski WICKMAN 1“-6
Torno automático multifuso WICKMAN 1“-6
Strung automat cu mai multe arbori WICKMAN 1“-6
WICKMAN 1“-6 Многошпиндельный токарный станок
Automatski strug sa više vretena WICKMAN 1“-6
WICKMAN 1“-6 Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı WICKMAN 1“-6
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
25.4 mm
Nbr of spindles
6
Type of CNC
Spindle speed
2694 rpm
-------------------
Length x width x height
1257.0
× 3143.0
× 2100.0
Weight
6313 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This listing is for a WICKMAN model 1"-6 manual multispindle automatic lathe designed for efficient production with six spindles. It can accommodate bar stock with a maximum diameter of 25.4 mm for round bars, 21.8 mm for hexagonal bars, and 17.7 mm for square bars. The machine features feed travels on the main tool block and independent slides ranging from 0 to 63.5 mm, with an approaching travel on the main tool block of 63.5 mm under normal conditions and 50.8 mm for special setups. Additionally, the cross slides have feed travels of 0 to 12.7 mm on both lower and upper slides, and intermediate cross slides allow feed travel between 0.8 to 12.7 mm.
The spindle speed range varies from 247 to 3030 rpm under normal operation, with a spindle stop range between 220 and 2694 rpm. The motor power is rated at 11 kW operating at 1450 rpm. Idle times are approximately 1.37 seconds both normally and with spindle stop, extending to 1.92 seconds for long bar feed operations. Cycle times range from 2.4 to 129 seconds depending on the operation mode.

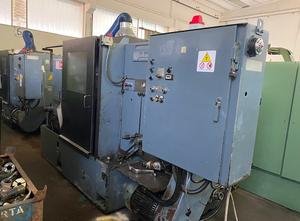

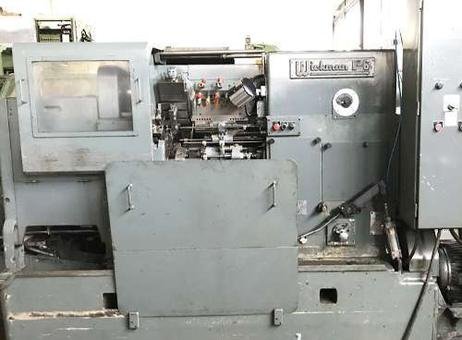

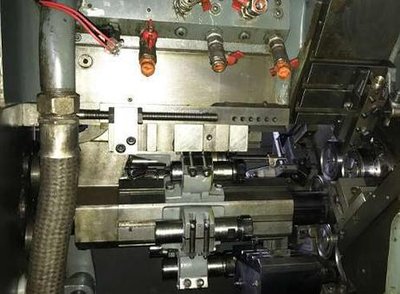

Dimensions of the machine including tubes and stand are approximately 1257 mm in length, 3143 mm in width, and 2100 mm in height, with a total weight of 6313 kg. The machine is equipped with a control panel featuring buttons and switches located on the right side, and a transparent window on the left side for viewing internal operations. Electrical cables and flexible hoses are connected to the machine, supporting its operational needs. Internal components, including hydraulic or pneumatic lines with red caps and metal clamps, appear clean and well maintained. The exterior shows signs of wear and some rust at the base, which should be considered when evaluating the machine's condition.
Included accessories are a tube, stand, subspindle pick-up, and threading device. This multispindle lathe is suitable for various bar turning applications requiring multiple spindles and precise feed control.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
6 spindles
Bar size diameter round 25,4 mm, hexagonal 21,8 mm, square 17,7 mm
Feed travel on the main tools block 0-63,5 mm
Feed travel on the indipendent slides 0-63,5 mm
Approaching travel on the main tools block normal 63,5 mm, special 50,8 mm
Feed travel cross slides lower 0-12,7 mm, upper 0-12,7 mm
Feed travel intermediate cross slides 0,8-12,7 mm
Motor 11 kw to 1450 rpm
Spindle speed range normal 247-3030 rpm, with spindle stop 220-2694 rpm
Idle time normal 1,37 sec, with spindle stop 1,37 sec, long bar feed 1,92 sec
Cycle time range normal-with stop 2,4-129 sec
Dimension with tubes and stan 1257×6047 mm . Electric drawing. Accessories. Tube+stand. Subspindle Pick up.Threading device.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2013
Offers online
98
Last activity
May 4, 2026
ALMA SRL
Verified seller
ALMA SRL is a distinguished Italian company renowned for its innovative solutions in the field of industrial automation and technology. With a commitment to excellence and a passion for engineering, ALMA has established itself as a leader in providing cutting-edge machinery and systems that enhance productivity and efficiency across various sectors. Founded with the vision of transforming traditional manufacturing processes, ALMA SRL specializes in the design and production of advanced equipment tailored to meet the unique needs of its clients. Their extensive product range includes state-of-the-art cutting systems, automation solutions, and software applications that streamline operations and optimize performance. What sets ALMA apart is its unwavering dedication to quality and customer satisfaction. The company prides itself on its ability to deliver customized solutions that not only meet but exceed client expectations. With a team of highly skilled professionals and a robust research and development department, ALMA continuously pushes the boundaries of technology to provide innovative solutions that drive success. As a trusted partner in the industrial sector, ALMA SRL is committed to fostering long-term relationships with its clients, ensuring they receive the support and expertise needed to thrive in a competitive market. Whether you are looking to enhance your production capabilities or implement the latest automation technologies, ALMA SRL is your go-to partner for excellence in industrial solutions.
Seller's description
6 spindles
Bar size diameter round 25,4 mm, hexagonal 21,8 mm, square 17,7 mm
Feed travel on the main tools block 0-63,5 mm
Feed travel on the indipendent slides 0-63,5 mm
Approaching travel on the main tools block normal 63,5 mm, special 50,8 mm
Feed travel cross slides lower 0-12,7 mm, upper 0-12,7 mm
Feed travel intermediate cross slides 0,8-12,7 mm
Motor 11 kw to 1450 rpm
Spindle speed range normal 247-3030 rpm, with spindle stop 220-2694 rpm
Idle time normal 1,37 sec, with spindle stop 1,37 sec, long bar feed 1,92 sec
Cycle time range normal-with stop 2,4-129 sec
Dimension with tubes and stan 1257×6047 mm . Electric drawing. Accessories. Tube+stand. Subspindle Pick up.Threading device.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
