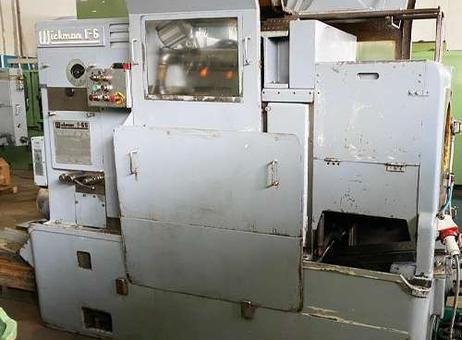

WICKMAN 1″/6 Multispindle automatic lathe

WICKMAN 1″/6 Multispindle automatic lathe
Verified seller
Price on request
Make an offer
Manufacturer
WICKMAN
Model
1″/6
Year
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P240326298
Buy this machine
Language
Language
Многошпинделен автоматичен струг WICKMAN 1″/6
Multivřetenový automatický soustruh WICKMAN 1″/6
WICKMAN 1″/6 Multispindlet automatisk drejebænk
WICKMAN 1″/6 Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων WICKMAN 1″/6
WICKMAN 1″/6 Multispindle automatic lathe
Torno multihusillos automático WICKMAN 1″/6
Tour multibroche WICKMAN 1″/6
Viševreteni automatski strug WICKMAN 1″/6
WICKMAN 1″/6 Többorsós automata eszterga
Tornio multimandrino WICKMAN 1″/6
Daugialypės automatinės tekinimo staklės WICKMAN 1″/6
WICKMAN 1″/6 Meerassige automatische draaibank
Wielowrzecionowy automat tokarski WICKMAN 1″/6
Torno automático multifuso WICKMAN 1″/6
Strung automat cu mai multe arbori WICKMAN 1″/6
WICKMAN 1″/6 Многошпиндельный токарный станок
Automatski strug sa više vretena WICKMAN 1″/6
WICKMAN 1″/6 Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı WICKMAN 1″/6
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
25.4 mm
Type of CNC
Spindle speed
2694 rpm
Spindle power
11 kW
-------------------
Length x width x height
1257.0
× 3143.0
× 2100.0
Weight
6300 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This listing is for a Wickman 1"/6 multispindle automatic lathe, a robust industrial machine designed for high-volume precision turning. The machine features a metal body casing with dimensions of 1257 mm in length, 3143 mm in width, and 2100 mm in height, weighing approximately 6300 kg. It is capable of handling bar stock with a maximum diameter of 25.4 mm for round bars, 21.8 mm for hexagonal bars, and 17.7 mm for square bars.
The spindle operates with a power of 11 kW and reaches speeds up to 2694 rpm. The spindle speed range varies from 247 to 3030 rpm under normal operation and 220 to 2694 rpm with spindle stop functionality. The machine's idle time is 1.37 seconds both normally and with spindle stop, extending to 1.92 seconds with long bar feed. Cycle times range from a normal 2.4 seconds to 129 seconds when the spindle is stopped.
Feed travels include 0-63.5 mm on the main tools block and independent slides, with an approaching travel of 63.5 mm on the main tools block (normal) and 50.8 mm for special applications. Cross slide feed travels are 0-12.7 mm for both lower and upper slides, and 0.8-12.7 mm for the middle cross slide.
The machine includes a control panel with buttons and switches located on the left side, facilitating operation. A viewing window on the front panel allows monitoring of internal components during operation. The multispindle turret is equipped with multiple tool holders, supported by metal guide rails and fixtures for secure part holding. A rotary mechanism for tool indexing is present on the right side.

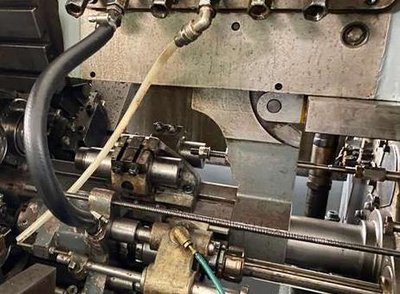

Internally, the machine contains mechanical components such as shafts, rods, and pneumatic or hydraulic lines, with flexible hoses likely used for coolant or lubrication. The exterior shows signs of wear and some surface rust, while internal and metal surfaces exhibit dirt and grime consistent with usage. The dimensions provided exclude the bar support. Additional features include spindle stop, pick-up, and threading device capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Bar size diameter: round 25,4 mm, hexagonal 21,8 mm, square 17,7 mm.
Feed travel: on the main tools block 0-63.5 mm, on the indipendent slides 0-63,5 mm
Approaching travel on the main tools block: normal 63,5 mm, special 50.8 mm
Feed travel cross slides: lower 0-12,7 mm, upper 0-12,7 mm, middle cross 0,8-12,7 mm
Motor 11 kw a 1450 rpm
Spindle speed range: normal 247-3030 rpm, with spindle stop 220-2694 rpm
Idle time: normal 1,37 sec, with spindle stop 1,37 sec, with long bar feed 1,92 sec
Cycle time range: normal 2.4 sec, with stop 129 sec.
The dimension of machine are without bar support. Spindle Stop. Pick-up. Threading device.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2013
Offers online
98
Last activity
May 4, 2026
ALMA SRL
Verified seller
ALMA SRL is a distinguished Italian company renowned for its innovative solutions in the field of industrial automation and technology. With a commitment to excellence and a passion for engineering, ALMA has established itself as a leader in providing cutting-edge machinery and systems that enhance productivity and efficiency across various sectors. Founded with the vision of transforming traditional manufacturing processes, ALMA SRL specializes in the design and production of advanced equipment tailored to meet the unique needs of its clients. Their extensive product range includes state-of-the-art cutting systems, automation solutions, and software applications that streamline operations and optimize performance. What sets ALMA apart is its unwavering dedication to quality and customer satisfaction. The company prides itself on its ability to deliver customized solutions that not only meet but exceed client expectations. With a team of highly skilled professionals and a robust research and development department, ALMA continuously pushes the boundaries of technology to provide innovative solutions that drive success. As a trusted partner in the industrial sector, ALMA SRL is committed to fostering long-term relationships with its clients, ensuring they receive the support and expertise needed to thrive in a competitive market. Whether you are looking to enhance your production capabilities or implement the latest automation technologies, ALMA SRL is your go-to partner for excellence in industrial solutions.
Seller's description
Bar size diameter: round 25,4 mm, hexagonal 21,8 mm, square 17,7 mm.
Feed travel: on the main tools block 0-63.5 mm, on the indipendent slides 0-63,5 mm
Approaching travel on the main tools block: normal 63,5 mm, special 50.8 mm
Feed travel cross slides: lower 0-12,7 mm, upper 0-12,7 mm, middle cross 0,8-12,7 mm
Motor 11 kw a 1450 rpm
Spindle speed range: normal 247-3030 rpm, with spindle stop 220-2694 rpm
Idle time: normal 1,37 sec, with spindle stop 1,37 sec, with long bar feed 1,92 sec
Cycle time range: normal 2.4 sec, with stop 129 sec.
The dimension of machine are without bar support. Spindle Stop. Pick-up. Threading device.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
