WICKMAN 5/8"-6 CNC multi-spindle lathe

WICKMAN 5/8"-6 CNC multi-spindle lathe
Verified seller
Price on request
Make an offer
Manufacturer
WICKMAN
Model
5/8"-6
Year
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P260212264
Buy this machine
Language
Language
CNC многошпинделен струг WICKMAN 5/8"-6
CNC vícevřetenový soustruh WICKMAN 5/8"-6
WICKMAN 5/8"-6 CNC fler-spindel drejebænk
WICKMAN 5/8"-6 CNC-Mehrspindel-Drehmaschine
Πολυάξονος τόρνος CNC WICKMAN 5/8"-6
WICKMAN 5/8"-6 CNC multi-spindle lathe
Torno CNC multihusillo WICKMAN 5/8"-6
Tour CNC multibroche WICKMAN 5/8"-6
CNC viševreteni tokarski stroj WICKMAN 5/8"-6
WICKMAN 5/8"-6 CNC többorsós esztergagép
Tornio CNC plurimandrino WICKMAN 5/8"-6
CNC daugiaverpstės tekinimo staklės WICKMAN 5/8"-6
WICKMAN 5/8"-6 CNC-meerspillige draaibank
Tokarka CNC wielowrzecionowa WICKMAN 5/8"-6
Torno CNC multifuso WICKMAN 5/8"-6
Strung CNC multiax WICKMAN 5/8"-6
WICKMAN 5/8"-6 Многошпиндельный токарный станок с ЧПУ
CNC viševreteni strug WICKMAN 5/8"-6
WICKMAN 5/8"-6 CNC flerspindlig svarv
CNC çok milli torna WICKMAN 5/8"-6
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
88.9 mm
Type of CNC
Spindle speed
5000 rpm
Spindle power
11 kW
-------------------
Length x width x height
4500.0
× 1000.0
× 1600.0
Weight
3200 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Wickman 5/8"-6
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This WICKMAN 5/8"-6 CNC multi-spindle lathe is designed for versatile bar machining with a maximum bar diameter capacity of 88.9 mm. It supports round bars up to 15.9 mm, hexagonal bars up to 13.7 mm, and square bars up to 11.1 mm. The machine features a standard bar feed range from 0 to 88.9 mm, with options for special feeds up to 100 mm and double bar feed capability. The feed stroke on the hexagonal block ranges from 0 to 50.8 mm, while the cross slide feed strokes are 0 to 12.7 mm for both lower and upper slides, and 0 to 8.9 mm for the intermediate slide. The maximum feed range per revolution varies between 0.15 and 1.55 mm during normal operation and 0.15 to 1.44 mm when the spindle is stopped.
The lathe is powered by an 11 kW motor running at 1450 rpm, enabling spindle speeds from 400 up to 5000 rpm. Cycle times range from 1.1 to 50 seconds, allowing for flexible production rates. Included devices and accessories are a pick-up positioned at station 6, a threading device at station 5, two independent slides, a chip conveyor, electrical diagrams, and a pipe with stand.

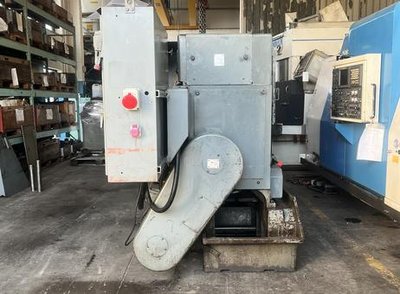

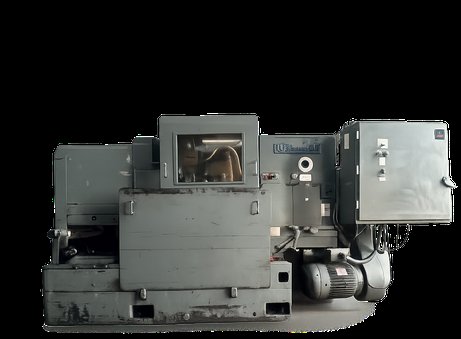

The machine measures 4500 mm in length, 1000 mm in width, and 1600 mm in height, with a total weight of approximately 3200 kg. Visual inspection reveals a gray CNC multi-spindle lathe with protective covers and a control box located on the right side. A large motor is mounted on the bottom right side. There is a viewing window on the central upper part of the machine and a control box equipped with switches and indicators. The machine shows signs of wear and usage, including some dirt and surface scratches, consistent with industrial use.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Bar diameter: round 15.9 mm, hexagonal 13.7 mm, square 11.1 mm Bar feed: standard 0–88.9 mm, special 0–100 mm, double bar feed
Feed stroke on hexagonal block: 0 – 50.8 mm. Cross slide feed stroke: Lower: 0 – 12.7 mm – Upper: 0 – 12.7 mm – Intermediate: 0 – 8.9 mm
Maximum feed range: normal/revolution 0.15 – 1.55 mm – spindle stop/revolution 0.15 – 1.44 mm Motor: 11 kW – 1450 rpm. Spindle speed: normal 400 – 5,000 rpm
Cycle time range: 1.1 ÷ 50 sec Devices and accessories: Pick-up pos. 6 – Threading device pos. 5 – 2 independent slides – Chip conveyor – Electrical diagrams – Pipe + stand
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2013
Offers online
98
Last activity
May 6, 2026
ALMA SRL
Verified seller
ALMA SRL is a distinguished Italian company renowned for its innovative solutions in the field of industrial automation and technology. With a commitment to excellence and a passion for engineering, ALMA has established itself as a leader in providing cutting-edge machinery and systems that enhance productivity and efficiency across various sectors. Founded with the vision of transforming traditional manufacturing processes, ALMA SRL specializes in the design and production of advanced equipment tailored to meet the unique needs of its clients. Their extensive product range includes state-of-the-art cutting systems, automation solutions, and software applications that streamline operations and optimize performance. What sets ALMA apart is its unwavering dedication to quality and customer satisfaction. The company prides itself on its ability to deliver customized solutions that not only meet but exceed client expectations. With a team of highly skilled professionals and a robust research and development department, ALMA continuously pushes the boundaries of technology to provide innovative solutions that drive success. As a trusted partner in the industrial sector, ALMA SRL is committed to fostering long-term relationships with its clients, ensuring they receive the support and expertise needed to thrive in a competitive market. Whether you are looking to enhance your production capabilities or implement the latest automation technologies, ALMA SRL is your go-to partner for excellence in industrial solutions.
Seller's description
Bar diameter: round 15.9 mm, hexagonal 13.7 mm, square 11.1 mm Bar feed: standard 0–88.9 mm, special 0–100 mm, double bar feed
Feed stroke on hexagonal block: 0 – 50.8 mm. Cross slide feed stroke: Lower: 0 – 12.7 mm – Upper: 0 – 12.7 mm – Intermediate: 0 – 8.9 mm
Maximum feed range: normal/revolution 0.15 – 1.55 mm – spindle stop/revolution 0.15 – 1.44 mm Motor: 11 kW – 1450 rpm. Spindle speed: normal 400 – 5,000 rpm
Cycle time range: 1.1 ÷ 50 sec Devices and accessories: Pick-up pos. 6 – Threading device pos. 5 – 2 independent slides – Chip conveyor – Electrical diagrams – Pipe + stand
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Specifications
Max. Ø
88.9 mm
Type of CNC
Spindle speed
5000 rpm
Spindle power
11 kW
-------------------
Length x width x height
4500.0
× 1000.0
× 1600.0
Weight
3200 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Wickman 5/8"-6
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This WICKMAN 5/8"-6 CNC multi-spindle lathe is designed for versatile bar machining with a maximum bar diameter capacity of 88.9 mm. It supports round bars up to 15.9 mm, hexagonal bars up to 13.7 mm, and square bars up to 11.1 mm. The machine features a standard bar feed range from 0 to 88.9 mm, with options for special feeds up to 100 mm and double bar feed capability. The feed stroke on the hexagonal block ranges from 0 to 50.8 mm, while the cross slide feed strokes are 0 to 12.7 mm for both lower and upper slides, and 0 to 8.9 mm for the intermediate slide. The maximum feed range per revolution varies between 0.15 and 1.55 mm during normal operation and 0.15 to 1.44 mm when the spindle is stopped.
The lathe is powered by an 11 kW motor running at 1450 rpm, enabling spindle speeds from 400 up to 5000 rpm. Cycle times range from 1.1 to 50 seconds, allowing for flexible production rates. Included devices and accessories are a pick-up positioned at station 6, a threading device at station 5, two independent slides, a chip conveyor, electrical diagrams, and a pipe with stand.
The machine measures 4500 mm in length, 1000 mm in width, and 1600 mm in height, with a total weight of approximately 3200 kg. Visual inspection reveals a gray CNC multi-spindle lathe with protective covers and a control box located on the right side. A large motor is mounted on the bottom right side. There is a viewing window on the central upper part of the machine and a control box equipped with switches and indicators. The machine shows signs of wear and usage, including some dirt and surface scratches, consistent with industrial use.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
