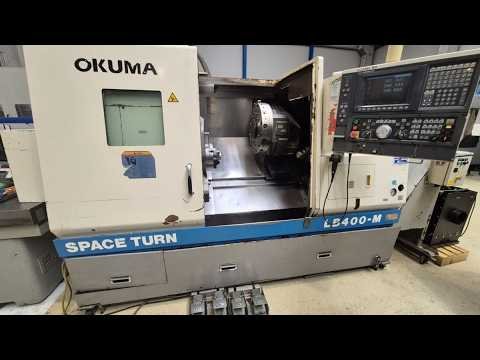

CNC turning and milling center OKUMA LB400M-1SC

Problems viewing the video? Watch on YouTube.
CNC turning and milling center OKUMA LB400M-1SC
Verified seller
Price on request
View price
Manufacturer
OKUMA
Model
LB400M-1SC
Year
2000
Location
Germany
Category
Lathes - CNC lathes
Product id
P260407029
Buy this machine
Language
Language
ЦПУ стругово и фрезово център OKUMA LB400M-1SC
CNC soustružnické a frézovací centrum OKUMA LB400M-1SC
CNC dreje- og fræsecenter OKUMA LB400M-1SC
CNC Dreh- und Fräszentrum OKUMA LB400M-1SC
Κέντρο CNC τόρνευσης και φρεζαρίσματος OKUMA LB400M-1SC
CNC turning and milling center OKUMA LB400M-1SC
Centro de torneado y fresado CNC OKUMA LB400M-1SC
Centre d'usinage et de tournage CNC OKUMA LB400M-1SC
CNC tokarno i glodalica centar OKUMA LB400M-1SC
CNC esztergáló és maróközpont OKUMA LB400M-1SC
Centro di tornitura e fresatura CNC OKUMA LB400M-1SC
CNC tekinimo ir frezavimo centras OKUMA LB400M-1SC
CNC draai- en freescentrum OKUMA LB400M-1SC
CNC centrum toczenia i frezowania OKUMA LB400M-1SC
Centro de usinagem e torneamento CNC OKUMA LB400M-1SC
Centru CNC de strunjire și frezare OKUMA LB400M-1SC
ЧПУ токарно-фрезерный центр OKUMA LB400M-1SC
CNC струг и фрез центар OKUMA LB400M-1SC
CNC svarv- och fräsoch center OKUMA LB400M-1SC
CNC torna ve freze merkezi OKUMA LB400M-1SC
Get price & details
+0049 21…
Show phone
Details
About this seller
Specifications
Turning length
650 mm
Ø above the bed
420 mm
Type of CNC

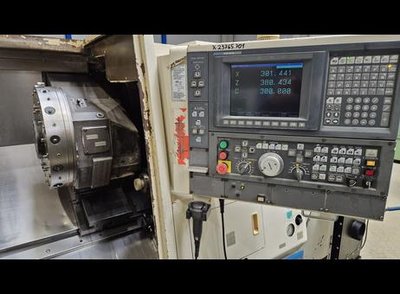

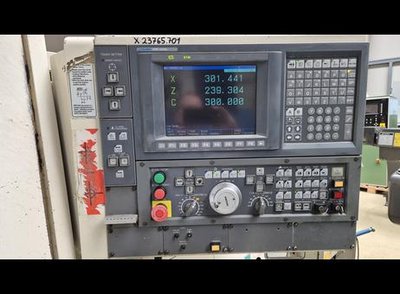

Okuma OSP-U100L
X-axis
300 mm
Z-axis
675 mm
Spindle taper
Spindle bore
95 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
12
Turning speed
2800 rpm
Spindle motor power
30 kW
Tailstock
yes
Bar feeder
no
-------------------
Length x width x height
2700.0
× 1900.0
× 1885.0
Weight
5500 kg
worked hours
16653
hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
19/06/2026
Show more
Automatic description (AI-Generated)
This CNC lathe features a 12-position turret with a VDI 40 interface, equipped with driven tool stations that allow a maximum rotation speed of up to 3000 rpm and a power of 5.5 kW. The machine is equipped with an internal Hengst Filtration chip extraction system, manufactured in 2023, which ensures effective cleaning and maintenance of the working area.
The equipment includes a Touchsetter for precise tool measurement, as well as tool breakage and wear monitoring functionality, which supports maintenance and optimizes the production process. The main spindle has a C-axis, and the chuck is a three-jaw model Kitagawa B210 with a diameter of Ø250 mm, allowing stable clamping of the workpieces.
The machine is equipped with a tailstock, which increases the capabilities for machining longer workpieces. The coolant delivery system is available both externally and through the tool, improving cooling and extending the tool life.
Programming is done through the IGF dialog interface, facilitating the setup and management of processes. For efficient chip removal, a conveyor with a scraper is provided.
The total spindle hours are 14,502, providing an indication of the machine's usage. This CNC lathe is suitable for precise and complex machining, offering a variety of features and conveniences for optimal operation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Spindle hours: 14,502 hrs.

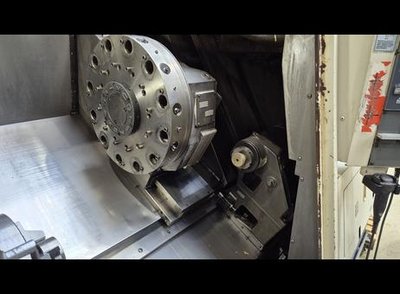

- 12-station turret (VDI 40) with driven tool stations, 3,000 rpm, 5.5 kW
- Internal extraction system by Hengst Filtration (year of manufacture 2023)
- Touchsetter, tool measurement
- C-axis (main spindle)
- Tool breakage and wear monitoring
- 3-jaw chuck, Kitagawa B210, Ø250
- Tailstock
- Coolant supply, also through the tool
- IGF dialog programming
- Chip conveyor (scraper)
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
