Doerries Scharmann VC-3500/300 vertical turret lathe with cnc

Doerries Scharmann VC-3500/300 vertical turret lathe with cnc
Verified seller
Price on request
Make an offer
Manufacturer
Doerries Scharmann
Model
VC-3500/300
Year
1995
Location
Germany
Category
Lathes - CNC vertical turret lathes
Product id
P250312054
Buy this machine
Language
Language
вертикален револверен струг с ЦПУ Doerries Scharmann VC-3500/300
Soustruh - karusel cnc Doerries Scharmann VC-3500/300
Doerries Scharmann VC-3500/300 lodret drejebænk med cnc
Doerries Scharmann VC-3500/300 Karusselldrehmaschine CNC
κάθετος τόρνος πυργίσκου με cnc Doerries Scharmann VC-3500/300
Doerries Scharmann VC-3500/300 vertical turret lathe with cnc
Torno vertical cnc Doerries Scharmann VC-3500/300
Tour vertical à cnc Doerries Scharmann VC-3500/300
vertikalni revolver tokarski stroj sa CNC Doerries Scharmann VC-3500/300
Doerries Scharmann VC-3500/300 függőleges tornyos eszterga cnc-vel
Tornio verticale Doerries Scharmann VC-3500/300
vertikalios bokštinės tekinimo staklės su cnc Doerries Scharmann VC-3500/300
Doerries Scharmann VC-3500/300 verticale draaibank met cnc
Tokarka karuzelowa CNC Doerries Scharmann VC-3500/300
torno de torre vertical com cnc Doerries Scharmann VC-3500/300
strung vertical cu turela cu cnc Doerries Scharmann VC-3500/300
Doerries Scharmann VC-3500/300 Вертикальный токарно-револьверный станок с ЧПУ
strug sa vertikalnim kupolom sa cnc Doerries Scharmann VC-3500/300
Doerries Scharmann VC-3500/300 vertikal revolversvarv med cnc
Dik taret Torna Doerries Scharmann VC-3500/300
Get price & details
+49 05 1…
Show phone
Details
About this seller
Specifications
Plate diameter
3000 mm
Working height
3200 mm
CNC type
Fanuc 18iTB
Max piece weight
50000 kg
Rotation speed
2000 rpm
Engine Power
22 kW
Overhauled
yes
Year of overhauling
2020
-------------------
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
12/03/2025
Show more
Automatic description (AI-Generated)
This Doerries Scharmann VC-3500/300 vertical turret lathe, manufactured in 1995 and overhauled in 2020, is designed for heavy-duty machining tasks. It features a large faceplate with a diameter of 3000 mm and supports a maximum workpiece weight of up to 50,000 kg. The machine offers a maximum turning diameter of 3300 mm and a working height of 3200 mm, suitable for handling substantial components.
The lathe is equipped with a milling spindle motor rated at 22 kW, capable of spindle speeds ranging from 10 to 2000 rpm. It includes a tool magazine with up to 27 positions and supports 17 live or driven tool positions, utilizing BT50 tool taper. The machine's travels include an X-axis range of -2550 to +2550 mm, a Z-axis travel of 1700 mm, and a crossrail vertical travel (W) of 1800 mm, with rapid movements on the X and Z axes at 6000 mm/min.
The rotary table at the base of the machine is powered by a 105 kW motor, offering speeds from 0.6 to 110 rpm and a maximum torque of 140,000 Nm. The machine includes a precise C-axis with 0.001° resolution.

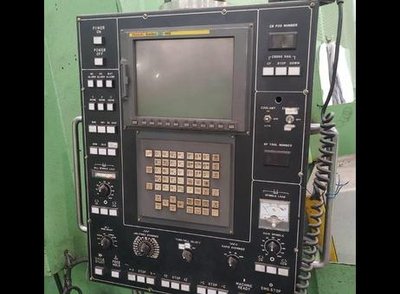

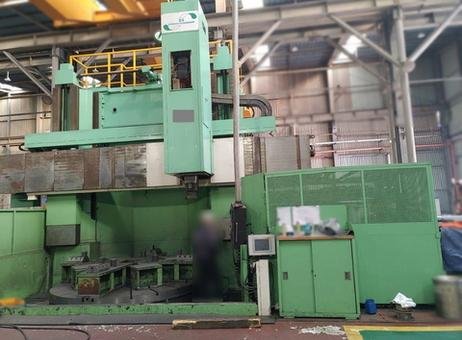

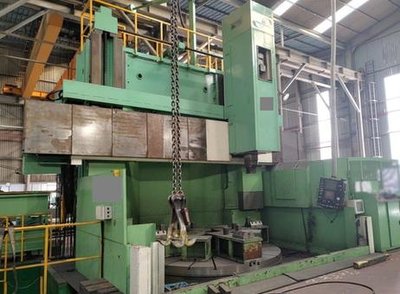

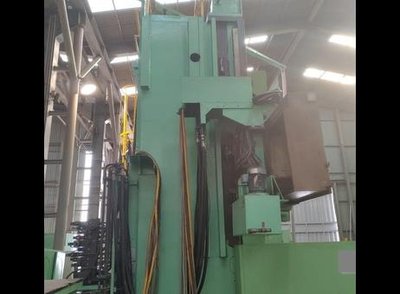

From the images, the lathe is painted green with yellow safety railings and a platform on top. It has a CNC control panel mounted on the right side, featuring a screen, keypad, and multiple buttons and switches, appearing clean and intact. The machine is situated in an industrial workshop environment and shows signs of use such as surface wear, some dirt, discoloration, and minor surface rust on metal parts, but no visible damage. There is an overhead lifting chain with hooks for handling heavy components and a supporting cabinet or enclosure with doors adjacent to the machine. Multiple cables and hoses are bundled along the side, and a motor or blower unit is mounted on the machine's side, showing some dirt and wear.
Overall, this vertical turret lathe combines substantial machining capacity with updated retrofit features from 2020, making it suitable for demanding industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Faceplate diameter: 3000 mm
Weight on faceplate: max. 50000 kg
Turning diameter: max. 3300 mm
Turning height: max. 3200 mm
Travels: X -2550 / +2550 mm
: Z 1700 mm
Crossrail vertical travel: W 1800 mm
Ram size: 250 x 250 mm
Rapids: X/Z 6000 mm/min.
Table motor rating: 105 KW
Table speeds: 0.6 - 110 rpm
Torque on the table: max. 140000 Nm
C-axis: 0.001° degrees
Tool magazine positions: max. 27
Live / Driven tool positions: max. 17
Milling spindle speeds: 10 - 2000 rpm
Milling spindle motor rating: 22 KW
Tool taper: BT50
Equipped with: Extended + retrofitted
Retrofit + update/extension 2020
Condition: Very good
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
