DOOSAN LYNX 2100MA CNC lathe

DOOSAN LYNX 2100MA CNC lathe
Top seller
Price on request
View price
Manufacturer
DOOSAN
Model
LYNX 2100MA
Year
2017
Location
Poland
Category
Lathes - CNC lathes
Product id
P260612236
Buy this machine
Language
Language
CNC струг DOOSAN LYNX 2100MA
CNC soustruh DOOSAN LYNX 2100MA
DOOSAN LYNX 2100MA CNC drejebænk
DOOSAN LYNX 2100MA CNC-Drehmaschine
Τόρνος CNC DOOSAN LYNX 2100MA
DOOSAN LYNX 2100MA CNC lathe
Torno CNC DOOSAN LYNX 2100MA
Tour CNC DOOSAN LYNX 2100MA
DOOSAN LYNX 2100MA CNC tokarski stroj
DOOSAN LYNX 2100MA CNC eszterga
Tornio CNC DOOSAN LYNX 2100MA
DOOSAN LYNX 2100MA CNC tekinimo staklės
DOOSAN LYNX 2100MA CNC draaibank
Tokarka CNC DOOSAN LYNX 2100MA
Torno CNC DOOSAN LYNX 2100MA
strung CNC DOOSAN LYNX 2100MA
Станок с ЧПУ DOOSAN LYNX 2100MA
CNC токар DOOSAN LYNX 2100MA
DOOSAN LYNX 2100MA CNC-svarv
DOOSAN LYNX 2100MA CNC torna
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
510 mm
Turning Ø
300 mm
Ø above the bed
600 mm
Ø above transversing slide
mm
Length between centers
mm
Type of CNC
X-axis
205 mm
Z-axis
510 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
61 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
6000 rpm
Spindle motor power
kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
600.0
× -
× -
Weight
2750 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
16/06/2026
Show more
Automatic description (AI-Generated)
This listing features a DOOSAN LYNX 2100MA CNC horizontal turning machine manufactured in 2017. The machine is designed for precise turning operations with a maximum turning diameter of 300 mm and a turning length of 510 mm, allowing for versatile machining of medium-sized workpieces. It has a swing over bed of 600 mm and a spindle bore diameter of 61 mm, suitable for handling bar stock up to that size. The spindle operates at speeds up to 6000 rpm and is powered by a 15 kW motor, providing substantial power for various turning tasks.
The machine is equipped with a 12-station drum turret that includes driven tools, enhancing its capability to perform complex machining operations without manual tool changes. The X-axis travel is 205 mm, and the Z-axis travel is 510 mm, supporting a range of machining movements. Control is managed through a FANUC i Series system, known for reliability and precision.
Additional features include a 6" hydraulic chuck and a tailstock with an 80 mm quill stroke and MT4 taper, which support stable workpiece holding and machining. The machine weighs approximately 2750 kg, indicating a robust construction suitable for industrial environments.

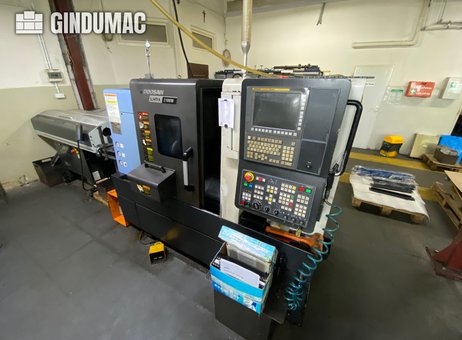

From the images, the machine appears clean and well maintained, with no visible damage. It includes a control panel with a display and multiple buttons for operator interface, as well as a blue coiled air hose nearby. An attached chip conveyor is present on the left side, which aids in efficient chip removal during operation. Some dirt and wear are visible on the floor and base, typical for used machinery but not affecting functionality.
This DOOSAN LYNX 2100MA is a capable CNC lathe suitable for manufacturers seeking reliable and versatile turning equipment. For further details or inquiries, please contact the seller.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Horizontal turning machine manufactured in 2017. This DOOSAN LYNX 2100MA features a maximum turning diameter of 300 mm and a turning length of 510 mm. It is equipped with a 12-station drum turret and driven tools, providing versatility in machining. If you are looking to get high-quality turning capabilities, consider the DOOSAN LYNX 2100MA machine we have for sale. Contact us for further details.Maximum turning diameter: 300 mm
Maximum turning length: 510 mm
Swing over bed: 600 mm
Bar capacity through spindle: 51 mm
Spindle bore: 61 mm
Spindle nose: A2-5
Rapid traverse X / Z: 30 / 36 m/min
C-axis resolution: 0.001°

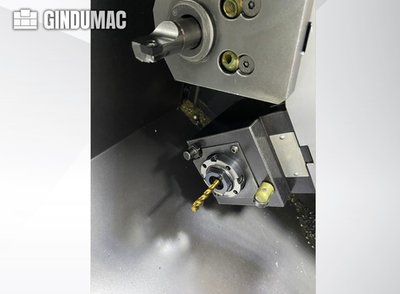

Turret: 12-station drum turret with driven tools
Driven tool speed: 6,000 rpm
Driven tool motor power: 3.7 kW
Tool shank size: 20 × 20 mm
Boring bar shank diameter: 32 mm

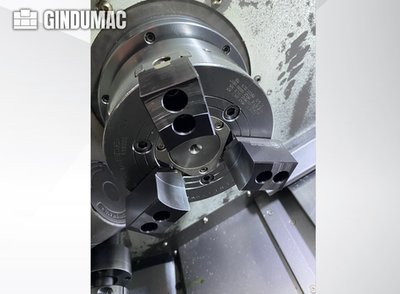

Chuck size: 6" hydraulic chuck
Tailstock quill diameter: 65 mm
Tailstock quill taper: MT4
Tailstock quill stroke: 80 mm
Total parts counter: 393,105 pcs (control counter)
Cutting time: 9,271 h
Control Brand: FANUC
Control Model: i Series
Counter Spindle: no
Driven Tools: yes
Machine Weight: 2750 kg
Number of Axes: 3
Tool Stations: 12
Spindle Power: 15 kW
Spindle Speed: 6000 RPM
X-axis Travel: 205 mm
Z-axis Travel: 510 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
