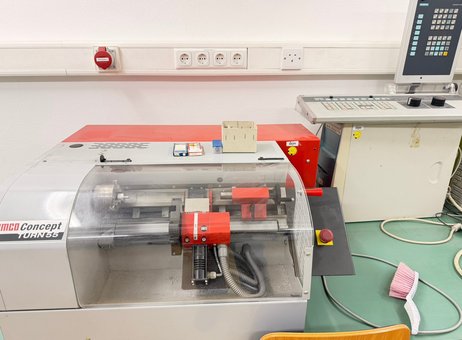

EMCO Concept Turn 55 CNC lathe

EMCO Concept Turn 55 CNC lathe
Top seller
Price on request
View price
Manufacturer
EMCO
Model
Concept Turn 55
Year
2006
Location
Germany
Category
Lathes - CNC lathes
Product id
P260430574
Buy this machine
Language
Language
CNC струг EMCO Concept Turn 55
CNC soustruh EMCO Concept Turn 55
EMCO Concept Turn 55 CNC-drejebænk
EMCO Concept Turn 55 CNC-Drehmaschine
Τόρνος CNC EMCO Concept Turn 55
EMCO Concept Turn 55 CNC lathe
Torno CNC EMCO Concept Turn 55
Tour CNC EMCO Concept Turn 55
CNC tokarski stroj EMCO Concept Turn 55
EMCO Concept Turn 55 CNC esztergagép
Tornio CNC EMCO Concept Turn 55
EMCO Concept Turn 55 CNC tekinimo staklės
EMCO Concept Turn 55 CNC-draaibank
Tokarka CNC EMCO Concept Turn 55
Torno CNC EMCO Concept Turn 55
Strung CNC EMCO Concept Turn 55
EMCO Concept Turn 55 Токарный станок с ЧПУ
CNC strug EMCO Concept Turn 55
EMCO Concept Turn 55 CNC-svarv
CNC torna EMCO Concept Turn 55
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
215 mm
Turning Ø
52 mm
Ø above the bed
130 mm
Ø above transversing slide
60 mm
Length between centers
687 mm
Type of CNC
X-axis
48 mm
Z-axis
236 mm
Spindle taper
Spindle bore
16 mm
Number of tools on turret
12
Number of rotating tools
6
Turning speed
4000 rpm
Spindle motor power
0.75 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
215.0
× 840.0
× 400.0
Weight
85 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Emco CONCEPT TURN 450
Last availability date
16/06/2026
Show more
Seller's description
Machine Title: EMCO Concept Turn 55 CNC Lathe
Manufacturer: EMCO
Model: Concept Turn 55
Year of Manufacture: 2006
Technical Condition: As-is, where-is
Working Area:
- Swing over bed: 130 mm
- Swing over cross slide: 60 mm
- Maximum turning diameter: 52 mm
- Maximum part length: 215 mm
Spindle/Workholding:
- Spindle connection: Factory standard
- Spindle bore: 16 mm
- Chuck diameter: 74 mm
- Through hole in chuck: 15 mm
- Automatic chuck diameter: 76 mm
- Mechanical speed steps: 2
- Maximum torque: 14 Nm
Tooling:
- Tool turret positions: 8
- Tool holders (internal/external): 4/4
- Tool shank size: 12 x 12 mm
- Boring bar diameter: 10 mm
Feeds/Drives/Accuracy:
- Feed drives: 3-phase stepper motors; resolution 0.0005 mm
- Rapid traverse X/Z: 2 m/min
- Working feed X/Z: 0–2 m/min
- Feed force X/Z: 1000 N
- Position scatter X: 0.008 mm
- Position scatter Z: 0.008 mm
Tailstock:
- Quill stroke: 35 mm
- Quill diameter: 22 mm
- Taper: MK1
- Automatic tailstock quill stroke: 15 mm
Lubrication:
- Guideways: Oil
- Other lubrication points: Grease
Pneumatics:
- Supply pressure: 6 bar
- Connection: 10 mm
Electrical:
- Power supply: 115/230 V
- Voltage tolerance: +5/-10 %
- Frequency: 50/60 Hz
- Connected load: 0.85 kVA
- Max fuse: 12 A
Dimensions/Weight/Noise:
- Axis height above floor: 320 mm
- Footprint: 840 x 695 mm
- Sound pressure level: 65 dB(A)
- Machine Height: 400 mm
- Machine Weight: 85 kg
Number of Axes: 2
Spindle Power: 0.75 kW
Spindle Speed: 4000 RPM
X-axis Travel: 48 mm
Z-axis Travel: 236 mm
If you are looking to enhance your turning capabilities, the EMCO Concept Turn 55 is an excellent choice.
