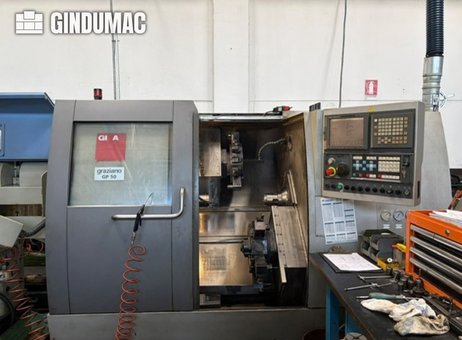

Gildemeister GP 50 CNC lathe
34.00 €
Договорная
| Состояние | gebraucht |
|---|---|
| Производитель | Siemens |
| Год выпуска | 2004 |
| Manufacturer | Gildemeister |
| Model | GP 50 |
| Year | 2004 |
| Location | Italy |
| Category | Lathes - CNC lathes |
| Turning length | mm |
| Turning Ø | 565 mm |
| Ø above the bed | 680 mm |
| Ø above transversing slide | mm |
| Length between centers | 600 mm |
| X-axis | 260 mm |
| Z-axis | mm |
| Max workpiece weight | kg |
| Spindle bore | 65 mm |
| Turning speed | 5000 rpm |
| Spindle motor power | 25 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | - × - × - |
| Weight | kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Gildemeister GP 50 |
| Last availability date | 05/10/2026 |
| Product id | P260922222 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |
| Type of CNC | Siemens 840D power line |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle taper | vdi 40 |
| Number of tools on turret | 12 |
Описание
This 5-axis Gildemeister GP 50 was manufactured in 2004. It features a twin-spindle configuration with independent electrospindles and a continuous C-axis on both spindles. The machine includes two independent Sauter turrets with a total of 24 tool positions, all suitable for driven tools. If you are looking to get high-quality turning capabilities, consider the Gildemeister GP 50 horizontal turning machine we have for sale. Contact us for further details.Y-axis: No
B-axis: Yes (associated with sub-spindle)
C-axis: Continuous on both spindles
Spindles:
Main spindle: Independent electrospindle with continuous C-axis
Sub-spindle: Independent electrospindle with continuous C-axis
Twin-spindle configuration
Bar passage (main spindle): 50 mm
Turrets / driven tools:
2 independent Sauter turrets
Tool stations: 12 + 12 (24 total), all positions suitable for driven tools
Driven tools: Yes (both turrets)
Main spindle turret: 12 driven tool positions
Sub-spindle turret: 12 driven tool positions
Machine configuration:
5-axis configuration
No Y-axis
B-axis with sub-spindle
Independent main and sub-spindle
Twin independent turret configuration
24 total tool stations
Driven tooling on both turrets
Additional equipment

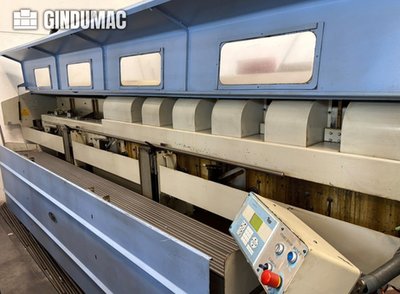

Bar feeder: Top Automazioni
Bar feeder passage: 70 mm
Automatic bar feeding system
Tooling / accessories included:
12 tool holders for 20 × 20 mm or 25 × 25 mm square tools
4 radial driven tool holders
2 axial driven tool holders, 90°
10 drill holders, 90°
Approx. 60 spindle collets in various diameters
Collet types: BA60 and BA52
Collets for Top Automazioni bar feeder
Control Brand: FANUC
Control Model: Series 18-i-T
Counter Spindle: yes
Driven Tools: yes
Number of Axes: 5
Tool Stations: 24
Spindle Power: 3.7 kW
Spindle Speed: 5000 RPM
Taper Size: VDI 30
X-axis Travel: 200 mm
Z-axis Travel: 500 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
