Mazak INTEGREX 200 IV S cnc lathe

Mazak INTEGREX 200 IV S cnc lathe
Top seller
Price on request
View price
Manufacturer
Mazak
Model
INTEGREX 200 IV S
Year
2007
Location
Italy
Category
Lathes - CNC lathes
Product id
P240322111
Buy this machine
Language
Language
cnc струг Mazak INTEGREX 200 IV S
Soustruh cnc Mazak INTEGREX 200 IV S
Mazak INTEGREX 200 IV S cnc drejebænk
Mazak INTEGREX 200 IV S Drehmaschine CNC
cnc τόρνος Mazak INTEGREX 200 IV S
Mazak INTEGREX 200 IV S cnc lathe
Torno cnc Mazak INTEGREX 200 IV S
Tour cnc Mazak INTEGREX 200 IV S
cnc tokarski stroj Mazak INTEGREX 200 IV S
Mazak INTEGREX 200 IV S cnc eszterga
Tornio cnc Mazak INTEGREX 200 IV S
cnc tekinimo staklės Mazak INTEGREX 200 IV S
Mazak INTEGREX 200 IV S cnc-draaibank
Tokarka CNC Mazak INTEGREX 200 IV S
Torno CNC Mazak INTEGREX 200 IV S
strung cnc Mazak INTEGREX 200 IV S
Mazak INTEGREX 200 IV S Токарный станок с ЧПУ
cnc strug Mazak INTEGREX 200 IV S
Mazak INTEGREX 200 IV S cnc svarv
Cnc torna Mazak INTEGREX 200 IV S
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
1050 mm
Turning Ø
660 mm
Ø above the bed
760 mm
Ø above transversing slide
658 mm
Length between centers
1000 mm
Type of CNC
Matrix
X-axis
580 mm
Z-axis
1050 mm
Max workpiece weight
299.5 kg
Spindle taper
Spindle bore
51 mm
Number of turrets
1
Number of tools on turret
40
Turning speed
5000 rpm
Spindle motor power
22 kW
Tailstock
no
Bar feeder
no
-------------------
worked hours
hours under power
state
good
At local norms
---------
status
Datasheet
Mazak INTEGREX 200 IV S
Last availability date
19/05/2026
Show more
Automatic description (AI-Generated)
The Mazak INTEGREX 200 IV S is a versatile CNC lathe manufactured in 2007, designed for complex machining tasks. It features a robust Matrix CNC control system, specifically the Mazatrol with Voice Adviser functionality, providing advanced programming capabilities. The machine is equipped with three spindles: a main spindle, a counter spindle, and a milling spindle, enabling multi-tasking operations. The main spindle offers a turning diameter capacity of up to 660 mm and a turning length of 1050 mm, with a spindle bore of 51 mm to accommodate bar stock. It operates at speeds up to 5000 rpm powered by a 22 kW spindle motor. The counter spindle is self-centering with a diameter of 210 mm, powered by an 18.5 kW motor, and also reaches speeds of 5000 rpm. Both spindles have C-axis capability, with the main spindle offering 360° rotation and the counter spindle providing 555°.
The machine includes a five-axis configuration, with X-axis travel of 580 mm, Y-axis of 160 mm, Z-axis of 1050 mm, and B-axis rotation of 225°. The milling spindle is powered by an 18.5 kW motor and can reach speeds up to 12,000 rpm, enhancing the machine's milling capabilities. A high-pressure coolant system is integrated through the spindle, delivering up to 20 bar, which is beneficial for efficient chip removal and cooling during operations.

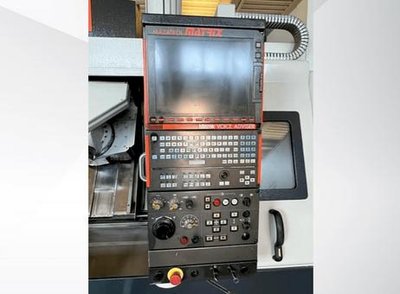

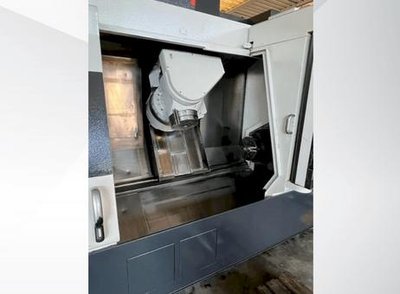

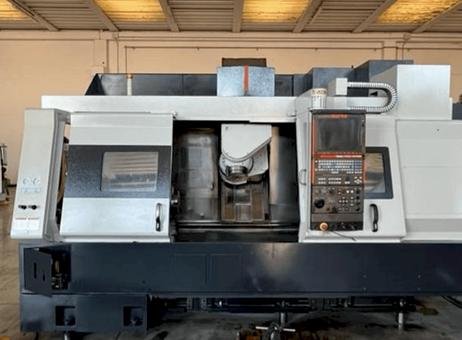

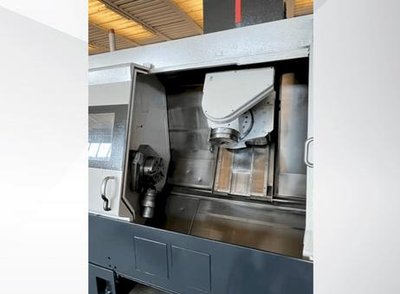

Visually, the machine is presented in clean and well-maintained condition, with no visible damage. The large CNC lathe features sliding doors for easy access to the machining area, which is clean and free of debris. Inside, the spindle heads and tool turret are clearly installed and appear intact, supporting a range of tooling options. The control panel, located on the right side, includes a screen and multiple buttons and knobs, all in good condition, facilitating user-friendly operation.
This Mazak INTEGREX 200 IV S is suitable for complex turning and milling tasks, offering precision and flexibility for advanced manufacturing processes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This MAZAK INTEGREX 200 IV S Lathe was manufactured in the year 2007. It is equipped with a Matrix control unit. The machines disposes od a spindle, a counter spindle, a milling spindle and a chip conveyor.
CNC: Matrix
Number of spindles: 3
Spindle speed range: 5000 rpm
Spindle motor power: 22 KW
Number of axis: 5
Maximum workable length 1050 mm // maximum workable diameter 660mm
Bar passage 51mm
Main spindle diameter 210mm
C axis 360°
Counter spindle self-centering diameter 210 // power and counter spindle speed 18. 5 kw 5000 rpm
C axis on the counter spindle 555
X-axis (strokes) // 580 y-axis (strokes) // 160 z axis (strokes) // 1050 b axis (strokes) 225°
Milling spindle power 18. 5 kw // milling spindle speed 12,000 rpm
Spindle attachment chapter c6
High pressure system through the spindle 20 bar
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
