Токарный станок INTEGREX E-410H cnc

MAZAK INTEGREX E-410H cnc lathe
Verified seller
Price on request
Make an offer
Manufacturer
MAZAK
Model
INTEGREX E-410H
Year
2004
Location
Germany
Category
Lathes - CNC lathes
Product id
P251205248
Buy this machine
Language
Language
cnc струг MAZAK INTEGREX E-410H
Soustruh cnc MAZAK INTEGREX E-410H
MAZAK INTEGREX E-410H cnc drejebænk
MAZAK INTEGREX E-410H Drehmaschine CNC
cnc τόρνος MAZAK INTEGREX E-410H
MAZAK INTEGREX E-410H cnc lathe
Torno cnc MAZAK INTEGREX E-410H
Tour cnc MAZAK INTEGREX E-410H
cnc tokarski stroj MAZAK INTEGREX E-410H
MAZAK INTEGREX E-410H cnc eszterga
Tornio cnc MAZAK INTEGREX E-410H
cnc tekinimo staklės MAZAK INTEGREX E-410H
MAZAK INTEGREX E-410H cnc-draaibank
Tokarka CNC MAZAK INTEGREX E-410H
Torno CNC MAZAK INTEGREX E-410H
strung cnc MAZAK INTEGREX E-410H
MAZAK INTEGREX E-410H Токарный станок с ЧПУ
cnc strug MAZAK INTEGREX E-410H
MAZAK INTEGREX E-410H cnc svarv
Cnc torna MAZAK INTEGREX E-410H
Get price & details
+49 71 3…
Show phone
Details
About this seller
Specifications
Turning length
1388 mm
Turning Ø
610 mm
Ø above the bed
609.6 mm
Ø above transversing slide
610 mm
Type of CNC
Mazatrol 640M Pro
X-axis
736 mm
Z-axis
1388 mm
Max workpiece weight
12 kg
Spindle taper
Spindle bore
81 mm
Number of tools on turret
80
Turning speed
4000 rpm
Spindle motor power
26 kW
Tailstock
yes
Bar feeder
no
-------------------
Length x width x height
5000.0
× 2920.0
× 2920.0
Weight
17000 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Mazak Integrex e-410H
Last availability date
27/05/2026
Show more
Automatic description (AI-Generated)

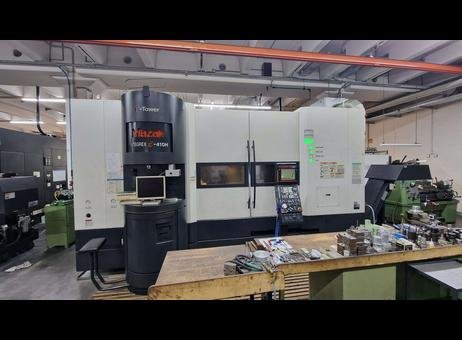

The MAZAK INTEGREX E-410H is a versatile CNC lathe machine manufactured in 2004, designed for complex machining tasks combining turning and milling operations in a single setup. It features a Mazatrol 640M Pro CNC control system with an e-Tower control panel and monitor, located on the front right side of the machine, facilitating user-friendly operation and programming.
This machine has a substantial footprint with dimensions approximately 5000 mm in length, 2920 mm in width, and 2920 mm in height, and it weighs around 17,000 kg. Its working envelope includes an X-axis travel of 736 mm and a Z-axis travel of 1388 mm, supporting turning lengths up to 1388 mm and turning diameters up to 610 mm. The spindle bore measures 81 mm, and the machine operates at speeds up to 4000 rpm.
Equipped with a KM 63 tool holder and a tool turret featuring 60 positions, the INTEGREX E-410H allows for extensive tooling options and continuous operation. It includes a chip conveyor and a tailstock, enhancing machining efficiency and support for longer workpieces. The chuck diameter is 310 mm, and the C-axis offers full 360° rotation with an accuracy of 0.0001°, enabling precise multi-axis machining.
The machine is well-maintained and clean, with no visible damage, as observed. A work table with various tools and metal parts is positioned in front of the machine, supporting organized workflow.
This model is suitable for industries requiring high precision and productivity, such as aerospace, energy (including turbines and shafts), oil and gas, automotive manufacturing, and general mechanical engineering. Its capability for 5-axis simultaneous machining significantly reduces machining time and replaces multiple machines, saving space and increasing reliability with Japanese engineering quality from Yamazaki Mazak.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Manufacturer: MAZAK
Type: INTEGREX E-410H
Year of manufacture: 2004
Control: Mazatrol 640M Pro CNC control
Machine weight: approx. 17000 kg
Tool holder: KM 63
x-travel: 736 mm (29")
y-path: 410 mm (16")
z-path: 1388 mm (55")
Speed range: 4000 rpm
Turning length: 1388 mm (55")
Turning diameter: 610 mm (24")
Chip conveyor: yes
Tailstock: yes
Space requirement: approx. 5000 × 2920 × 2920 mm
Chuck diameter: 310 mm
Tool turret positions: 60
C-axis: 360° (accuracy 0.0001°)
Spindle bore: 81 mm (3.2")
Main advantages:
- Versatility - turning and milling in one set-up
- High productivity - up to 80% reduction in machining time
- Precision - 5-axis simultaneous machining for complex parts
- Large tool magazine - 80 positions for continuous operation
- Automation - e-Tower system for unmanned production
- Reliability - Japanese quality from Yamazaki Mazak
- Space saving - Replaces multiple machines
Areas of application:
- Aerospace industry
- Energy sector (turbines, shafts)
- Oil and gas industry
- Automotive manufacturing
- General mechanical engineering
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
