MORANDO VK17 CNC vertical turret lathe

MORANDO VK17 CNC vertical turret lathe
Price on request
View price
Get price & details
You can purchase this machine from us directly, which gives you:
Secured payment
for the purchase
Dedicated compliance check
of the seller
Logistics and customs support
if applicable
After-sale follow up
if needed
Contact us to receive an offer.
Manufacturer
MORANDO
Model
VK17
Year
Location
Italy
Your dedicated contact
Santi C.
Ask a question
Details
About this seller
Specifications
Category
Lathes - CNC vertical turret lathes
Plate diameter
1700 mm
Working height
1000 mm
CNC type
SIEMENS 840
Max piece weight
25000 kg
Rotation speed
70 rpm
Engine Power
50 kW
Overhauled
no
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
visible
Last availability date
29/06/2026
Product id
P260629026
Language
Language
CNC каруселен струг MORANDO VK17
CNC svislý karuselový soustruh MORANDO VK17
MORANDO VK17 CNC-karusseldrejebænk
MORANDO VK17 CNC-Karusselldrehmaschine
Κάθετος τόρνος CNC MORANDO VK17
MORANDO VK17 CNC vertical turret lathe
Torno vertical CNC MORANDO VK17
Tour vertical CNC MORANDO VK17
CNC karuselni tokarski stroj MORANDO VK17
MORANDO VK17 CNC karusszel esztergagép
Tornio verticale CNC MORANDO VK17
MORANDO VK17 CNC karuselinės tekinimo staklės
MORANDO VK17 CNC-carrouseldraaibank
Tokarka karuzelowa CNC MORANDO VK17
Torno vertical CNC MORANDO VK17
Strung carusel CNC MORANDO VK17
MORANDO VK17 Карусельный токарный станок с ЧПУ
CNC karuselni strug MORANDO VK17
MORANDO VK17 CNC-karusellsvarv
CNC dikey torna MORANDO VK17
Show more
Automatic description (AI-Generated)

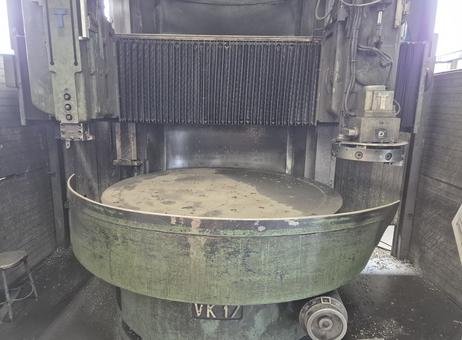

This listing is for a MORANDO VK17 double-column vertical turret lathe designed for heavy-duty machining tasks. The machine features a large circular worktable with a plate diameter of 1700 mm and a working height of 1000 mm, capable of handling maximum piece weights up to 25,000 kg. It operates with a rotation speed of 70 rpm and is powered by a 50 kW engine.

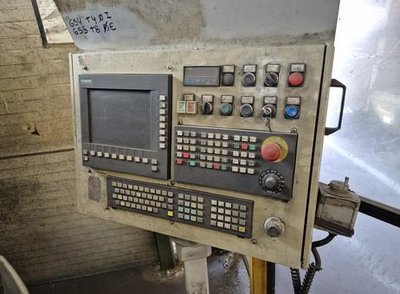

The lathe is equipped with a Siemens CNC control panel that includes multiple buttons, knobs, a display screen, two keyboard sections for data input and function keys, a rotary dial, and an emergency stop button. Please note that the CNC system is currently not operational.

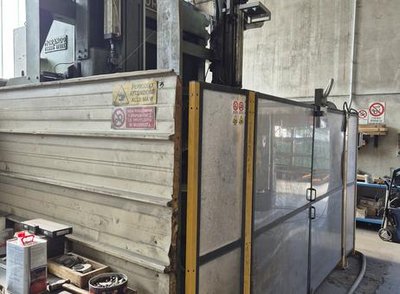

For tool handling, the machine includes a turret mounted on the right side, fitted with several tool holders. Protective features include an accordion-style cover located behind the turret and worktable area, as well as a safety enclosure with sliding transparent doors framed by metal. The enclosure is marked with yellow and black safety warnings and displays safety labels in Italian.
Additional controls include a handwheel located on the front lower right side of the machine base, offering manual operation options. The lathe shows signs of wear and dirt accumulation consistent with industrial use but does not exhibit any visible major damage. Electrical or mechanical components are mounted atop the enclosure.
Overall, this MORANDO VK17 vertical turret lathe is a robust machine suitable for large-scale turning operations, with comprehensive safety guarding and a complete tool changer system. Prospective buyers should consider the CNC status when evaluating this equipment.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
"MORANDO" VK17 double-column vertical lathe with SIEMENS CNC, complete with tool changer and safety guards; maximum turning diameter 1800 mm, height 1000 mm.
CNC not working.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Factory – small or medium company
Active since
2026
Offers online
5
Last activity
June 29, 2026
Seller's description
"MORANDO" VK17 double-column vertical lathe with SIEMENS CNC, complete with tool changer and safety guards; maximum turning diameter 1800 mm, height 1000 mm.
CNC not working.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
