Okuma LB3000II-MYC 950 CNC lathe

Okuma LB3000II-MYC 950 CNC lathe
Top seller
Price on request
View price
Manufacturer
Okuma
Model
LB3000II-MYC 950
Year
2020
Location
Germany
Category
Lathes - CNC lathes
Product id
P260612266
Buy this machine
Language
Language
CNC струг Okuma LB3000II-MYC 950
CNC soustruh Okuma LB3000II-MYC 950
Okuma LB3000II-MYC 950 CNC drejebænk
Okuma LB3000II-MYC 950 CNC-Drehmaschine
Τόρνος CNC Okuma LB3000II-MYC 950
Okuma LB3000II-MYC 950 CNC lathe
Torno CNC Okuma LB3000II-MYC 950
Tour CNC Okuma LB3000II-MYC 950
Okuma LB3000II-MYC 950 CNC tokarski stroj
Okuma LB3000II-MYC 950 CNC eszterga
Tornio CNC Okuma LB3000II-MYC 950
Okuma LB3000II-MYC 950 CNC tekinimo staklės
Okuma LB3000II-MYC 950 CNC draaibank
Tokarka CNC Okuma LB3000II-MYC 950
Torno CNC Okuma LB3000II-MYC 950
Strung CNC Okuma LB3000II-MYC 950
Токарный станок с ЧПУ Okuma LB3000II-MYC 950
CNC токарски струг Okuma LB3000II-MYC 950
Okuma LB3000II-MYC 950 CNC-svarv
Okuma LB3000II-MYC 950 CNC torna
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
950 mm
Turning Ø
340 mm
Ø above the bed
340 mm
Ø above transversing slide
470 mm
Length between centers
mm
Type of CNC
X-axis
260 mm
Z-axis
1010 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
91 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
4200 rpm
Spindle motor power
kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
950.0
× -
× -
Weight
6600 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
16/06/2026
Show more
Automatic description (AI-Generated)
The Okuma LB3000II-MYC 950 is a high-precision 4-axis CNC lathe manufactured in 2020, designed for advanced turning operations. It offers a maximum turning diameter of 340 mm and a turning length of 950 mm, making it suitable for medium-sized workpieces. The machine features a spindle bore diameter of 91 mm and a spindle speed that reaches up to 4,200 rpm, providing versatility for various machining tasks. It has an X-axis travel of 260 mm and a Z-axis travel of 1,010 mm, allowing for precise and flexible tool movement.
This lathe is equipped with a powerful 30 kW spindle motor and includes a 12-station turret with driven tools, enhancing its capability to perform complex machining processes. The control system is the OKUMA OSP-P300LA, which supports efficient and accurate CNC operations. The machine weighs approximately 6,600 kg, reflecting its robust construction.
Additional features include through-spindle coolant to improve cutting performance and tool life, and a tailstock with a force of 5 kN and MT5 taper for supporting longer workpieces. The chuck diameter is 275 mm with a through-hole of 86 mm, and the machine supports collet chucks with capacities ranging from 4 to 65 mm.

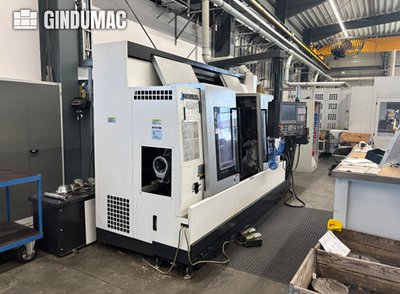

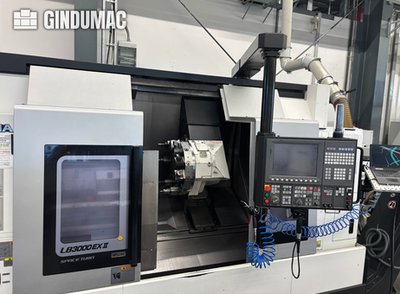

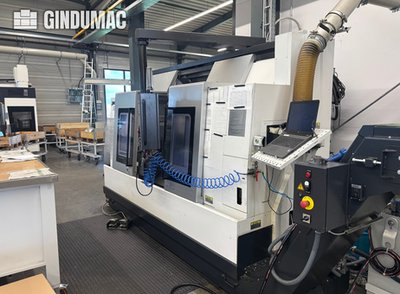

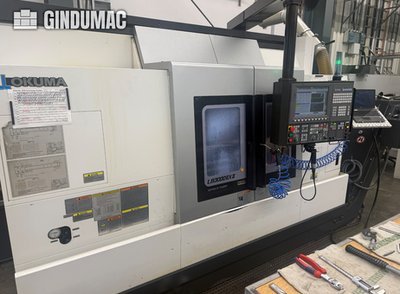

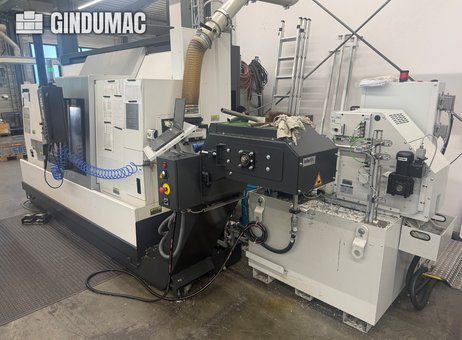

The lathe is installed indoors on a factory floor with anti-slip mats and appears clean and well-maintained. It includes an attached chip conveyor system labeled 'Interlift' for efficient chip removal, and a control panel with an emergency stop button is integrated on the chip conveyor. A laptop computer is mounted on the side of the machine, likely for programming or monitoring purposes. Some metal chips are visible on the chip conveyor, indicating recent use.
Note that special equipment or accessories beyond what is listed are not included. This Okuma LB3000II-MYC 950 CNC lathe is suitable for manufacturers seeking a reliable and versatile turning machine with comprehensive features and modern control technology.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This 4-axis Okuma LB3000II-MYC 950 was manufactured in 2020. It features a maximum turning diameter of 340 mm and a maximum turning length of 950 mm. The machine is equipped with a robust main spindle power of 30 kW and a maximum spindle speed of 4,200 rpm. If you are looking to get high-quality turning capabilities, consider the Okuma LB3000II-MYC 950 horizontal turning machine we have for sale. Contact us for further details.Max Turning Diameter: 340 mm
Max Turning Length: 950 mm
Swing Over Cross Slide: 470 mm
Main Spindle Torque: 700 Nm
Spindle Speed Range: 42 - 4,200 rpm
Spindle Bore: 91 mm
Spindle Nose: A2-8 (KK Size 8)
Front Bearing Diameter: 140 mm
Turret Stations: 12
Driven Tool Power: 7.1 kW
Driven Tool Torque: 23.7 Nm
Driven Tool Speed: 4,500 rpm
Driven Tool Speed Range: 45 - 4,500 rpm
Rapid Traverse X: 25 m/min
Rapid Traverse Z: 30 m/min
Rapid Traverse Y: 12.5 m/min
Rapid Traverse C: 200 rpm
Tailstock: NC Tailstock
Tailstock Force: 5 kN
Tailstock Taper: MT5
Chuck: SMW KNCS-N 275-86 A8
Chuck Diameter: 275 mm
Chuck Through Hole: 86 mm
Draw Tube Bore: 82 mm
Maximum Chuck Speed: 4,700 rpm
Collet Chuck: Hainbuch Spanntop mini Axzug 65 K8
Collet Capacity: 4 - 65 mm
Collet Chuck Diameter: 204 mm
Collet Chuck Length: 155 mm
Maximum Collet Chuck Speed: 6,000 rpm
Coolant System: Knoll KF 110/700
Through-Spindle Coolant (TSC): Yes
High Pressure Coolant: 70 bar
Coolant Tank Capacity: 700 l
Filter Capacity: 110 l/min
Power Supply: 400 V
Phases: 3
Frequency: 50 Hz
Maximum Connected Load: 38 kVA
Total Current Consumption: 54.9 A
Maximum Motor Current: 219 A
CE Marked: Yes
Driven Tools: Yes
Sub Spindle: No
Chip Conveyor optional, not included: Interlit ISF
Chip Discharge: Right Side
Chip Conveyor Discharge Height: 1,200 mm
Spindle Hours: 5,379 h
Power-On Hours: 20,878 h
Special equipment or accessories are not included
C-axis: 360°
Control Brand: OKUMA
Control Model: OSP-P300LA
Counter Spindle: no
Driven Tools: yes
Machine Weight: 6600 kg
Number of Axes: 4
Tool Stations: 12
Spindle Power: 30 kW
Spindle Speed: 4200 RPM
Through-spindle Coolant: yes
X-axis Travel: 260 mm
Y-axis Travel: 120 mm
Z-axis Travel: 1010 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
