Стама МТ 733 два центра вращения

Stama MT 733 two Dreh-Fräszentrum
Make an offer
Stama
MT 733 two
2020
Germany
Lathes - CNC lathes
P251209009
+49 088 …
Type of CNC
Spindle taper
Tailstock
no
Bar feeder
no
as-is, where-is
Datasheet
Stama MT 733 two
26/04/2026

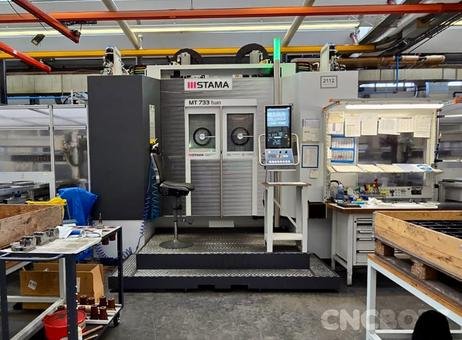

This listing features a Stama MT 733 two CNC lathe, manufactured in 2020. The machine is equipped with a Siemens Sinumerik 840D SL control system, providing advanced CNC capabilities for precision machining. It offers travel distances of 615 mm along the X-axis, 290 mm on the Y-axis, and 500 mm on the Z-axis, with rapid traverse rates up to 65 m/min. The feed force capacities are 4,000 N for both the X and Y axes and 8,000 N for the Z axis, enabling efficient and powerful machining operations. The main spindle unit reaches speeds up to 12,500 rpm and utilizes an HSK-T63 tool holder. It features a spindle bearing diameter of 80 mm and a retraction force of 18 kN, supporting high-performance and stable machining processes. The tool magazine accommodates 64 tool slots, with a maximum tool diameter of 78 mm when fully loaded and up to 140 mm with free auxiliary slots. It supports tools up to 300 mm in length and a maximum weight of 10 kg per tool, with a total chain load capacity of 115 kg. The rotary swivel unit offers a swivel angle from +30° to -180°, with a repeat accuracy of ±1" and a maximum swivel axis speed of 61 rpm. It provides tangential clamping torque of 3,000 Nm on the swivel axis and 1,800 Nm on the counter bearing, ensuring precise and secure positioning. The machine is housed within a protective enclosure around the working area, enhancing safety during operation. A control panel with screen and buttons is mounted on the right side, facilitating operator interaction. An operator chair is positioned in front of the machine, indicating readiness for use. The machine appears clean and well-maintained, situated in a work environment with tables holding tools and parts nearby. Visible cables and hoses suggest connectivity and operational readiness. This unit is offered as used. General information
Manufacturer: Stama
Type: MT 733 two
Year of manufacture: 2020

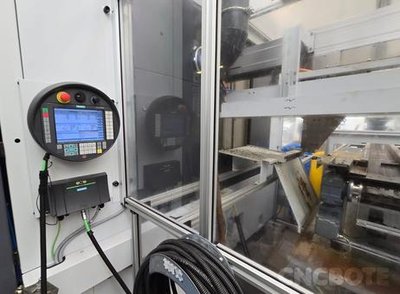

Control system: Siemens Sinumerik 840D SL
Travel distances: X 615 mm Y 290 mm Z 500 mm
Rapid traverse: 65 m/min
Feed: X 4,000 N / Y 4,000 N / Z 8,000 N

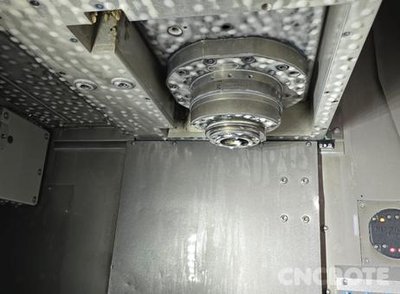

Main spindle unit
Speed: 12,500 rpm
Tool holder: HSK-T63
Retraction force: 18 kN
Spindle bearing diameter: 80 mm
Tool magazine
Number of available magazine slots: 64
Max. tool diameter when fully loaded: 78 mm
Max. tool diameter with free auxiliary slots: 140 mm
Tool length: max. 300 mm
Tool holder: HSK-A/T63
Tool weight: max. 10 kg
Total chain load: max. 115 kg
Rotary swivel unit
Swivel angle: +30 to -180°
Repeat accuracy of swivel axis: ±1″
Swivel axis speed: max. 61 rpm
Tangential clamping torque of swivel axis: 3,000 Nm
Tangential clamping torque of counter bearing: 1,800 Nm
Condition
Condition: Used
Functional: Tested and fully functional
2024
41
April 28, 2026
