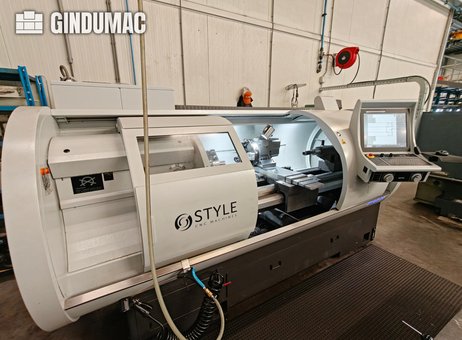

STYLE 510 CNC lathe

STYLE 510 CNC lathe
Top seller
Price on request
View price
Manufacturer
STYLE
Model
510
Year
2024
Location
Netherlands
Category
Lathes - CNC lathes
Product id
P260526177
Buy this machine
Language
Language
CNC струг STYLE 510
CNC soustruh STYLE 510
STYLE 510 CNC-drejebænk
STYLE 510 CNC-Drehmaschine
Τόρνος CNC STYLE 510
STYLE 510 CNC lathe
Torno CNC STYLE 510
Tour CNC STYLE 510
CNC tokarski stroj STYLE 510
STYLE 510 CNC esztergagép
Tornio CNC STYLE 510
STYLE 510 CNC tekinimo staklės
STYLE 510 CNC-draaibank
Tokarka CNC STYLE 510
Torno CNC STYLE 510
Strung CNC STYLE 510
STYLE 510 Токарный станок с ЧПУ
CNC strug STYLE 510
STYLE 510 CNC-svarv
CNC torna STYLE 510
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Type of CNC
Spindle taper
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
3200.0
× 1800.0
× 1800.0
Weight
2700 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
STYLE 510
Last availability date
16/06/2026
Show more
Automatic description (AI-Generated)
This horizontal turning machine, the STYLE 510, was manufactured in 2024 and offers robust capabilities suitable for various turning applications. It features a turning diameter over the bed of 510 mm and a turning diameter over the support of 300 mm, allowing for versatile workpiece sizes. The distance between centers is 1350 mm, accommodating medium-length parts with a maximum weight capacity of 600 kg between centers. The machine bed has a width of 330 mm, providing a stable foundation for precision machining.
The main spindle has a passage diameter of 80 mm and is equipped with a D1-8 spindle recording, supporting a maximum spindle speed of 2500 rpm. This speed range is suitable for a wide variety of turning operations. The machine operates with two axes, X and Z, where the rapid traverse rate is 8 meters per minute and the feed rate is 2 meters per minute, enabling efficient material removal and precision control.
The loose head or tailstock includes a pinole with diameters of 75 mm and 80 mm, a stroke length of 160 mm, and a 5 MK recording, which supports additional workpiece support and machining versatility.
Dimensions of the machine are 3200 mm in length, 1800 mm in width, and 1800 mm in height, with a total weight of 2700 kg. It does not include a counter spindle or driven tools, but tools and additional equipment can be acquired separately.
This STYLE 510 turning machine is designed to deliver reliable and precise turning performance for a variety of industrial applications. For further information or inquiries, please contact the seller.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Horizontal turning machine manufactured in 2024. This STYLE 510 features a turning diameter over bed of 510 mm and a distance between centers of 1350 mm. It has a maximum spindle speed of 2500 rpm and a rapid traverse of 8 m/min. If you are looking to get high-quality turning capabilities, consider the STYLE 510 machine we have for sale. Contact us for further details.Turning capacity
Turning diameter over bed: 510 mm
Turning diameter over support: 300 mm
Distance between centers: 1350 mm
Maximum weight between centers: 600 kg
Bed width: 330 mm
Main spindle
Main spindle passage: 80 Ø mm
Spindle recording: D1-8
X and Z axis
Rapid traverse: 8 m/min
Feed: 2 m/min
Loose head (tailstock)
Pinole: 75 / 802 Ø mm
Stroke pinole: 160 mm
Recording pinole: 5 MK
Additional equipment
Tools and equipment (not included; can be bought for an additional amount)
Counter Spindle: no
Driven Tools: no
Machine Height: 1800 mm
Machine Length: 3200 mm
Machine Weight: 2700 kg
Machine Width: 1800 mm
Number of Axes: 2
Spindle Speed: 2500 RPM
X-axis Travel: 510 mm
Z-axis Travel: 1350 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
