Токарный станок Takamaz XW-130 cnc

Takamaz XW-130 cnc lathe
Top seller
Price on request
View price
Manufacturer
Takamaz
Model
XW-130
Year
2013
Location
Czech Republic
Category
Lathes - CNC lathes
Product id
P250114163
Buy this machine
Language
Language
cnc струг Takamaz XW-130
Soustruh cnc Takamaz XW-130
Takamaz XW-130 cnc drejebænk
Takamaz XW-130 Drehmaschine CNC
cnc τόρνος Takamaz XW-130
Takamaz XW-130 cnc lathe
Torno cnc Takamaz XW-130
Tour cnc Takamaz XW-130
cnc tokarski stroj Takamaz XW-130
Takamaz XW-130 cnc eszterga
Tornio cnc Takamaz XW-130
cnc tekinimo staklės Takamaz XW-130
Takamaz XW-130 cnc-draaibank
Tokarka CNC Takamaz XW-130
Torno CNC Takamaz XW-130
strung cnc Takamaz XW-130
Takamaz XW-130 Токарный станок с ЧПУ
cnc strug Takamaz XW-130
Takamaz XW-130 cnc svarv
Cnc torna Takamaz XW-130
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
155 mm
Turning Ø
280 mm
Type of CNC
Takamaz XW-130
X-axis
150 mm
Z-axis
160 mm
Spindle taper
Number of turrets
2
Turning speed
4000 rpm
Spindle motor power
11 kW
Tailstock
no
Bar feeder
no
-------------------
Weight
5600 kg
worked hours
69000
hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
30/04/2026
Show more
Automatic description (AI-Generated)
The Takamaz XW-130 CNC lathe, manufactured in 2013, is a robust and precise machine designed for complex turning operations. It features dual turrets, each equipped with 8 tool positions, allowing for versatile tooling setups and efficient machining processes. The machine supports a maximum turning diameter of 280 mm and a maximum turning length of 155 mm, accommodating a variety of part sizes.
The X-axis and Z-axis travel distances are 150 mm and 160 mm respectively, with rapid traverse speeds of 24 m/min on both axes, enabling swift and accurate tool movements. The spindle motor delivers a powerful 11 kW, driving the spindle up to a maximum speed of 4000 rpm. The machine is capable of handling chucks up to 8 inches in size.
This CNC lathe weighs 5600 kg and has dimensions of 1890 mm in width, 2140 mm in depth, and 2050 mm in height, making it a substantial piece of equipment suitable for industrial environments. It consumes 43 kVA of power during operation.

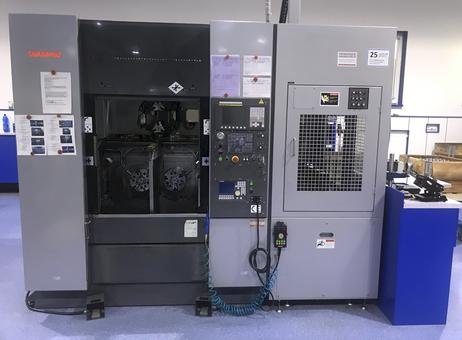

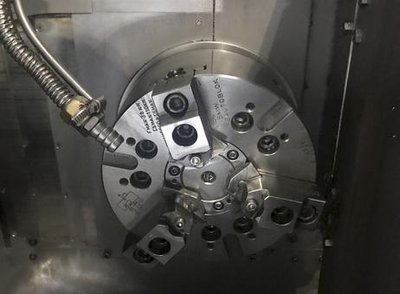

The machine is equipped with a control panel featuring a screen and buttons positioned centrally on the front, along with an emergency stop button for safety. A handheld control pendant is also included, providing additional operational flexibility. Inside the enclosure, dual chucks are visible, supporting simultaneous machining tasks.

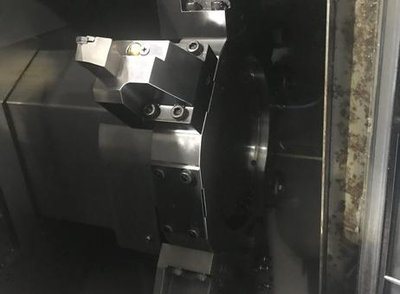

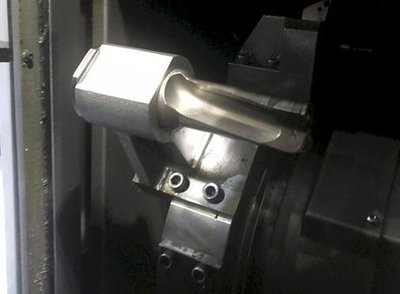

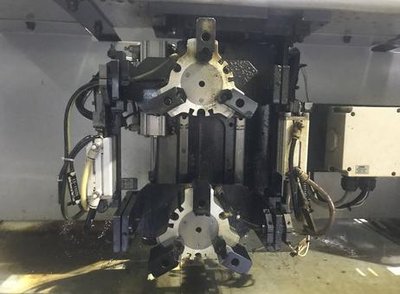

Tool holders are mounted on the turrets, with 20 included in total, and appear to be in good condition. Overall, the machine presents a clean and well-maintained appearance. This Takamaz XW-130 CNC lathe is suitable for users seeking a versatile and powerful turning center with dual turret capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Model: Takamaz XW-130
Manufacturer: Takamaz
Year of Manufacture: 2013
Technical Condition: Good condition, regularly maintained
Operating Hours: 69,000 hours (40,000 cutting hours)
Number of Spindles: 2
Spindle Speed Range: 4000 RPM
Spindle Motor Power: 11/7.5 kW
Chuck Size: 8 inches
Spindle Bearing Diameter: 100 mm
Spindle Center Height: 1000 mm
Max. Turning Diameter: 280 mm
Max. Turning Length: 155 mm
X-Axis Movement: 150 mm
X-Axis Rapid Traverse: 24 m/min
Z-Axis Movement: 160 mm
Z-Axis Rapid Traverse: 24 m/min
Number of Turrets: 2
Turret Positions: 8 positions per turret
Included Tool Holders: 20 pcs
Power Consumption: 43 kVA
Machine Dimensions:
- Width: 1890 mm
- Depth: 2140 mm
- Height: 2050 mm
Machine Weight: 5600 kg
Loading System: 2 turrets each with 8 positions
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2019
Offers online
1985
Last activity
May 2, 2026
GINDUMAC GmbH
Top seller
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
Seller's description
Model: Takamaz XW-130
Manufacturer: Takamaz
Year of Manufacture: 2013
Technical Condition: Good condition, regularly maintained
Operating Hours: 69,000 hours (40,000 cutting hours)
Number of Spindles: 2
Spindle Speed Range: 4000 RPM
Spindle Motor Power: 11/7.5 kW
Chuck Size: 8 inches
Spindle Bearing Diameter: 100 mm
Spindle Center Height: 1000 mm
Max. Turning Diameter: 280 mm
Max. Turning Length: 155 mm
X-Axis Movement: 150 mm
X-Axis Rapid Traverse: 24 m/min
Z-Axis Movement: 160 mm
Z-Axis Rapid Traverse: 24 m/min
Number of Turrets: 2
Turret Positions: 8 positions per turret
Included Tool Holders: 20 pcs
Power Consumption: 43 kVA
Machine Dimensions:
- Width: 1890 mm
- Depth: 2140 mm
- Height: 2050 mm
Machine Weight: 5600 kg
Loading System: 2 turrets each with 8 positions
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Specifications
Turning length
155 mm
Turning Ø
280 mm
Type of CNC
Takamaz XW-130
X-axis
150 mm
Z-axis
160 mm
Spindle taper
Number of turrets
2
Turning speed
4000 rpm
Spindle motor power
11 kW
Tailstock
no
Bar feeder
no
-------------------
Weight
5600 kg
worked hours
69000
hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
30/04/2026
Show more
Automatic description (AI-Generated)
The Takamaz XW-130 CNC lathe, manufactured in 2013, is a robust and precise machine designed for complex turning operations. It features dual turrets, each equipped with 8 tool positions, allowing for versatile tooling setups and efficient machining processes. The machine supports a maximum turning diameter of 280 mm and a maximum turning length of 155 mm, accommodating a variety of part sizes.
The X-axis and Z-axis travel distances are 150 mm and 160 mm respectively, with rapid traverse speeds of 24 m/min on both axes, enabling swift and accurate tool movements. The spindle motor delivers a powerful 11 kW, driving the spindle up to a maximum speed of 4000 rpm. The machine is capable of handling chucks up to 8 inches in size.
This CNC lathe weighs 5600 kg and has dimensions of 1890 mm in width, 2140 mm in depth, and 2050 mm in height, making it a substantial piece of equipment suitable for industrial environments. It consumes 43 kVA of power during operation.
The machine is equipped with a control panel featuring a screen and buttons positioned centrally on the front, along with an emergency stop button for safety. A handheld control pendant is also included, providing additional operational flexibility. Inside the enclosure, dual chucks are visible, supporting simultaneous machining tasks.
Tool holders are mounted on the turrets, with 20 included in total, and appear to be in good condition. Overall, the machine presents a clean and well-maintained appearance. This Takamaz XW-130 CNC lathe is suitable for users seeking a versatile and powerful turning center with dual turret capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
About this seller
Client type
Machinery dealer
Active since
2019
Offers online
1985
Last activity
May 2, 2026
GINDUMAC GmbH
Top seller
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.

---
