VIPER VTL 20/24 M vertical turret lathe with cnc

VIPER VTL 20/24 M vertical turret lathe with cnc
Top seller
Price on request
View price
Manufacturer
VIPER
Model
VTL 20/24 M
Year
2008
Location
Netherlands
Category
Lathes - CNC vertical turret lathes
Product id
P250528018
Buy this machine
Language
Language
вертикален револверен струг с ЦПУ VIPER VTL 20/24 M
Soustruh - karusel cnc VIPER VTL 20/24 M
VIPER VTL 20/24 M lodret drejebænk med cnc
VIPER VTL 20/24 M Karusselldrehmaschine CNC
κάθετος τόρνος πυργίσκου με cnc VIPER VTL 20/24 M
VIPER VTL 20/24 M vertical turret lathe with cnc
Torno vertical cnc VIPER VTL 20/24 M
Tour vertical à cnc VIPER VTL 20/24 M
vertikalni revolver tokarski stroj sa CNC VIPER VTL 20/24 M
VIPER VTL 20/24 M függőleges tornyos eszterga cnc-vel
Tornio verticale VIPER VTL 20/24 M
vertikalios bokštinės tekinimo staklės su cnc VIPER VTL 20/24 M
VIPER VTL 20/24 M verticale draaibank met cnc
Tokarka karuzelowa CNC VIPER VTL 20/24 M
torno de torre vertical com cnc VIPER VTL 20/24 M
strung vertical cu turela cu cnc VIPER VTL 20/24 M
VIPER VTL 20/24 M Вертикальный токарно-револьверный станок с ЧПУ
strug sa vertikalnim kupolom sa cnc VIPER VTL 20/24 M
VIPER VTL 20/24 M vertikal revolversvarv med cnc
Dik taret Torna VIPER VTL 20/24 M
Get price & details
Details
About this seller
Specifications
Plate diameter
2000 mm
CNC type
Fanuc
Rotation speed
200 rpm
Engine Power
48 kW
Overhauled
no
Year of overhauling
2025
-------------------
Length x width x height
9300.0
× 6300.0
× 6700.0
Weight
48000 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
visible
Last availability date
06/05/2026
Show more
Automatic description (AI-Generated)

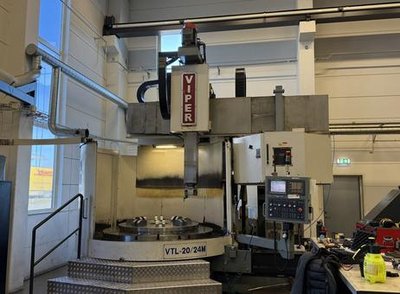

This VIPER VTL 20/24 M vertical turret lathe is a robust industrial machine manufactured in 2008, designed for precision turning operations. It features a substantial rotary table with a diameter of 2000 mm, capable of handling a maximum turning diameter of 2400 mm and a maximum turning height of 1500 mm. The machine is powered by a 48 kW engine, delivering a rotation speed of up to 200 rpm, suitable for heavy-duty machining tasks.

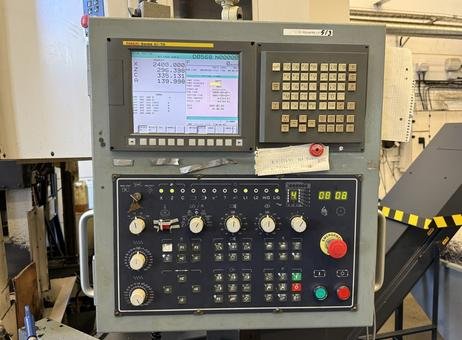

The lathe is equipped with a Fanuc Series 0i-TD CNC control panel, which includes a screen displaying coordinates and program data, as well as multiple buttons and dials for precise operation. An emergency stop button is integrated for safety. The control panel is clean and well-maintained, indicating careful handling.
Key mechanical features include an X stroke of 1835 mm and a Z stroke of 1000 mm, with a ram size of 230 x 230 mm. The stroke of the crossrail is 800 mm, adjustable in five steps of 200 mm each. The machine supports live tools with speeds up to 2000 rpm and a power of 15 kW, and it has an 18-station automatic tool changer (ATC) with a maximum tool length of 450 mm. The taper is BT50 BIG PLUS, and the C-Axis provides full 360-degree rotation.
This lathe has undergone significant maintenance, including replacement of the table and ram bearings in 2020 and installation of a new chip conveyor in 2025. The machine's overall dimensions are 9300 mm in length, 6300 mm in width, and 6700 mm in height, with a weight of 48,000 kg.

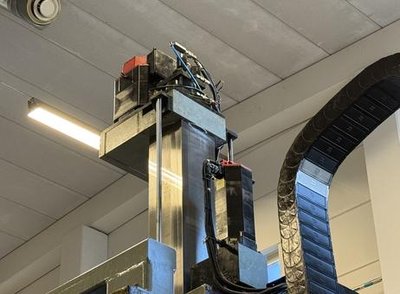

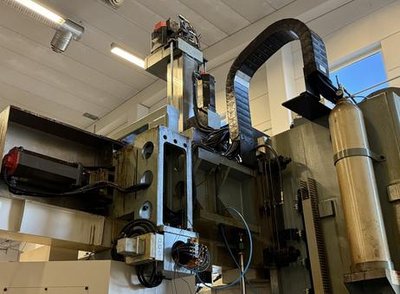

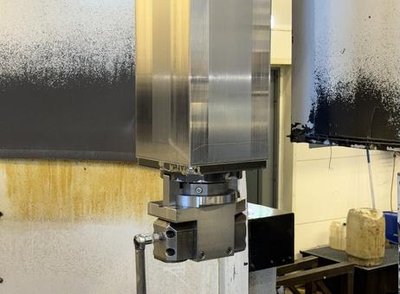

The machine is situated indoors in a well-lit industrial environment. The vertical column and structural components are industrial-grade, with visible cables, hydraulic lines, and organized electrical wiring secured with a cable carrier chain. Some surface wear, discoloration, and minor rust are present on metal parts, reflecting normal use. The tool holder is intact and securely mounted. Overall, the VIPER VTL 20/24 M is a heavy-duty vertical turret lathe suitable for aerospace precision machining and other demanding applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Control: Fanuc Oi-TD
X Stroke 1835 mm
Z Stroke 1000 mm
Table load 20 Ton
Ram size 230 x 230 mm
Stroke crossrail 800 mm
Stroke crossrail in 5 steps each 200 mm
Live tools 2000 Rpm
Power live tools 15 kW
ATC 18 station max L = 450 mm
Taper BT50 BIG PLUS
Full C-Axis 360.000
Under power in AEROSPACE precision plant
2020 Table bearing replaced
2020 Ram bearing replaced
2025 new chip conveyor
Max. turning Ø
2400 mm
Table Ø
2000 mm
ATC / revolver
18
Speeds / ranges
200 Rpm
Power
48 kW
Maximum turning height
1500 mm
C-Axis
360000 °
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
