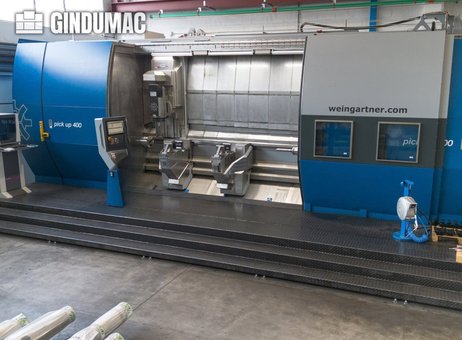

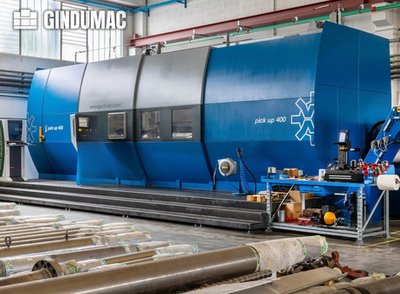

Weingartner Pick Up 400 CNC lathe
34.00 €
Договорная
| Состояние | gebraucht |
|---|---|
| Производитель | Siemens |
| Год выпуска | 2023 |
| Manufacturer | Weingartner |
| Model | Pick Up 400 |
| Year | 2023 |
| Location | Italy |
| Category | Lathes - CNC lathes |
| Tailstock | no |
| Bar feeder | no |
| Weight | 32000 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Last availability date | 05/10/2026 |
| Product id | P260922227 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |
| Turning length | 1200 mm |
| Ø above the bed | 350 mm |
| Length between centers | 1200 mm |
| X-axis | 270 mm |
| Max workpiece weight | 50 kg |
| Spindle bore | 80 mm |
| Turning speed | 8000 rpm |
| Turning Ø | 350 mm |
| Ø above transversing slide | 550 mm |
| Z-axis | 930 mm |
| Spindle motor power | 22 kW |
| Type of CNC | fanuc 310is |
| Number of tools on turret | 16 |
| Spindle taper | ASA 8 |
| Number of turrets | 1 |
| Number of rotating tools | 16 |
Описание
Offer title: Weingartner Pick Up 400 Machine-tool
Manufacturer: Weingartner
Model: Pick Up 400
Year of manufacture: 2023
Condition: as-is, where-is
Application: Screw manufacturing

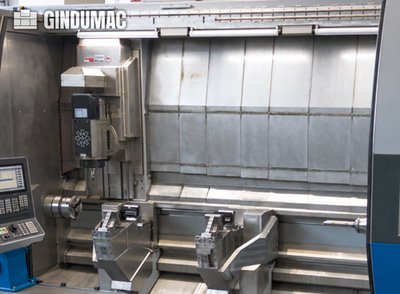

Type: 5-axis simultaneous machining center with B-axis turning
Control system: Siemens 840D solution line (NCU 720.3) with OP19 touchscreen and Siemens TP700 panel
Simultaneous machining: 5-axis; B-axis turning
Workpiece capacity: max length between centers 4,000 mm; max diameter for milling 180 mm; chuck size Ø260 mm
Electrical supply: 3 × 400 V / 50 Hz; main fuse approximately 200 A
X-axis travel: 450 mm; rapid traverse 20 m/min
Y-axis travel: -80 to +150 mm; rapid traverse 20 m/min
Z-axis travel: rapid 25 m/min
B-axis: swivel range ±45°; max swivel speed 90°/s; clamping torque 5,000 Nm
C-axis: max speed 50 rpm; max torque 1,740 Nm (continuous) / 2,580 Nm (40% duty)
W-axis (tailstock slide): rapid 15 m/min
VZ1 / VZ2 (steady rest slides): rapid 15 m/min
Turning / Milling Unit: UFE-400; tool spindle MDFK
Spindle power: 70 kW
Spindle speed: 14,000 rpm; nominal speed 1,560 rpm
Torque: 275 Nm (continuous) / 430 Nm (40% duty)
Tool interface: HSK 100-T (compatible HSK 100-A / HSK 100-T); Capto C8

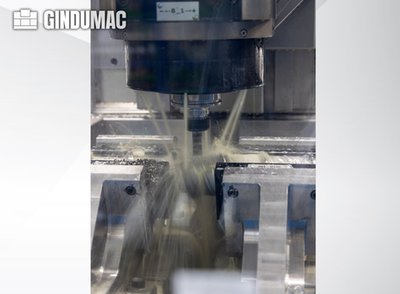

Internal coolant: 80 bar; 20 l/min
Tailstock: hydraulically operated quill; diameter 190 mm; stroke 200 mm; Morse taper MK6
Chucks: Hydraulic SMW KNCS‑N 260 power chuck with quick jaw change
Central lubrication system: yes
Enclosure and safety: fully enclosed machine housing with driven safety doors; Visiport inspection windows
Hydraulic and pneumatic systems: present
Coolant and oil mist extraction preparation: present
Electronic hand control: for B/C/X/Y/Z axes
Software / control functions: Siemens Safety Integrated; Profibus / Profinet; OPC UA interface
Spindle orientation: 5-axis machining; B-axis turning; TRANSMIT / TRACYL
Temperature compensation: X/Y
DNC remote diagnostics: WMDS Diagnostic System; Telediagnosis capability
WeinCAD features: EXTRUDER DESIGNER; WeinEXT – Praxis
Additional equipment: Hinge-belt chip conveyor
Coolant filtration system KF 200: 1,400 L tank; 40 µm filtration; high‑pressure pump 80 bar / 46 l/min; low‑pressure pump 13 bar / 160 l/min; automatic oil skimmer
Oil mist extraction unit: airflow approx. 4,000 m³/h
Operating platform: with stairs and railing
Control brand: Siemens
Control model: 840D solution line
Machine weight: 32,000 kg
Number of axes: 5
Spindle power (expert note): 70 kW
Spindle speed (expert note): 14,000 RPM
X-axis travel (summary): 450 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Manufacturer: Weingartner
Model: Pick Up 400
Year of manufacture: 2023
Condition: as-is, where-is
Application: Screw manufacturing
Type: 5-axis simultaneous machining center with B-axis turning
Control system: Siemens 840D solution line (NCU 720.3) with OP19 touchscreen and Siemens TP700 panel
Simultaneous machining: 5-axis; B-axis turning
Workpiece capacity: max length between centers 4,000 mm; max diameter for milling 180 mm; chuck size Ø260 mm
Electrical supply: 3 × 400 V / 50 Hz; main fuse approximately 200 A
X-axis travel: 450 mm; rapid traverse 20 m/min
Y-axis travel: -80 to +150 mm; rapid traverse 20 m/min
Z-axis travel: rapid 25 m/min
B-axis: swivel range ±45°; max swivel speed 90°/s; clamping torque 5,000 Nm
C-axis: max speed 50 rpm; max torque 1,740 Nm (continuous) / 2,580 Nm (40% duty)
W-axis (tailstock slide): rapid 15 m/min
VZ1 / VZ2 (steady rest slides): rapid 15 m/min
Turning / Milling Unit: UFE-400; tool spindle MDFK
Spindle power: 70 kW
Spindle speed: 14,000 rpm; nominal speed 1,560 rpm
Torque: 275 Nm (continuous) / 430 Nm (40% duty)
Tool interface: HSK 100-T (compatible HSK 100-A / HSK 100-T); Capto C8
Internal coolant: 80 bar; 20 l/min
Tailstock: hydraulically operated quill; diameter 190 mm; stroke 200 mm; Morse taper MK6
Chucks: Hydraulic SMW KNCS‑N 260 power chuck with quick jaw change
Central lubrication system: yes
Enclosure and safety: fully enclosed machine housing with driven safety doors; Visiport inspection windows
Hydraulic and pneumatic systems: present
Coolant and oil mist extraction preparation: present
Electronic hand control: for B/C/X/Y/Z axes
Software / control functions: Siemens Safety Integrated; Profibus / Profinet; OPC UA interface
Spindle orientation: 5-axis machining; B-axis turning; TRANSMIT / TRACYL
Temperature compensation: X/Y
DNC remote diagnostics: WMDS Diagnostic System; Telediagnosis capability
WeinCAD features: EXTRUDER DESIGNER; WeinEXT – Praxis
Additional equipment: Hinge-belt chip conveyor
Coolant filtration system KF 200: 1,400 L tank; 40 µm filtration; high‑pressure pump 80 bar / 46 l/min; low‑pressure pump 13 bar / 160 l/min; automatic oil skimmer
Oil mist extraction unit: airflow approx. 4,000 m³/h
Operating platform: with stairs and railing
Control brand: Siemens
Control model: 840D solution line
Machine weight: 32,000 kg
Number of axes: 5
Spindle power (expert note): 70 kW
Spindle speed (expert note): 14,000 RPM
X-axis travel (summary): 450 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
