Автоматичний токар Kovosvit Compact A35

Automatic lathe Kovosvit Compact A35
Top seller
Price on request
View price
Manufacturer
Kovosvit
Model
Compact A35
Year
2005
Location
Czech Republic
Category
Lathes - CNC multi-spindle lathes
Product id
P230322139
Buy this machine
Language
Language
Kovosvit Compact A35
Multivřetenový automatický soustruh Kovosvit Compact A35
Kovosvit Compact A35
Kovosvit Compact A35 Automatische Mehrspindel-Drehmaschine
Kovosvit Compact A35
Automatic lathe Kovosvit Compact A35
Torno multihusillos automático Kovosvit Compact A35
Tour multibroche Kovosvit Compact A35
Kovosvit Compact A35
Kovosvit Compact A35
Tornio multimandrino Kovosvit Compact A35
Kovosvit Compact A35
Kovosvit Compact A35
Wielowrzecionowy automat tokarski Kovosvit Compact A35
Kovosvit Compact A35
Kovosvit Compact A35
Kovosvit Compact A35 Многошпиндельный токарный станок
Kovosvit Compact A35
Kovosvit Compact A35
Otomatik çok milli torna tezgahı Kovosvit Compact A35
Get price & details
Details
About this seller
Specifications
Max. Ø
35 mm
Type of CNC
Fanuc 16i-TB
Nbr of axes
8
Spindle speed
7000 rpm
Spindle power
7.5 kW
-------------------
Length x width x height
2250.0
× 1480.0
× 1890.0
Weight
3450 kg
worked hours
10202
hours
hours under power
18658
hours
state
good
At local norms
---------
status
under power
Last availability date
24/04/2026
Show more
Automatic description (AI-Generated)

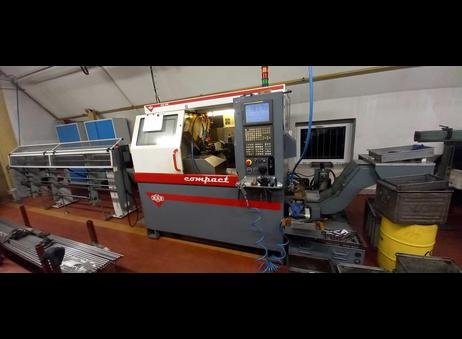

This Kovosvit Compact A35 is a CNC multispindle automatic lathe manufactured in 2005. It features an 8-axis CNC control system, specifically the Fanuc 16i-TB, providing precise and versatile machining capabilities. The machine is designed to handle a maximum bar diameter of 35 mm. Its main spindle operates at speeds up to 7000 rpm with a spindle power of 7.5 kW, suitable for a variety of metalworking tasks.

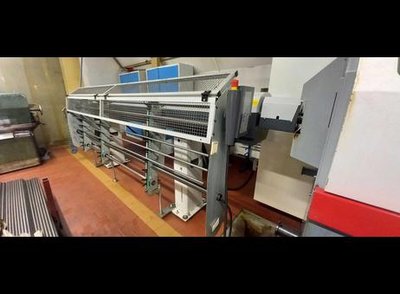

The machine's dimensions are 2250 mm in length, 1480 mm in width, and 1890 mm in height, with a total weight of 3450 kg. It comes equipped with a 3-meter LNS Sprint 555 bar feeder, which is attached on the left side of the machine, facilitating automated feeding of bar stock for continuous operation.

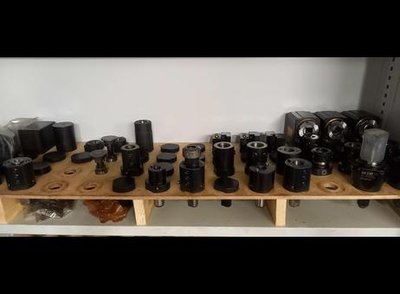

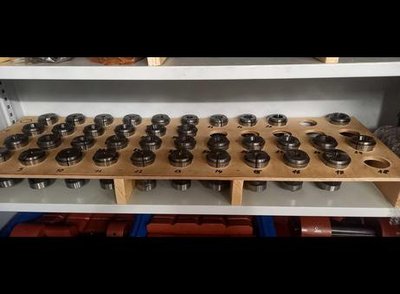

Included in the sale are several tooling accessories such as collets, an auxiliary head, polished holders VDI25/ER32, axis tool holders VDI25, and both straight and angled power tool holders. The machine is also fitted with tools sized at 16x16 mm square. The bar feeder is equipped with guide channels, pushers, and reduction bushings to ensure accurate material handling.

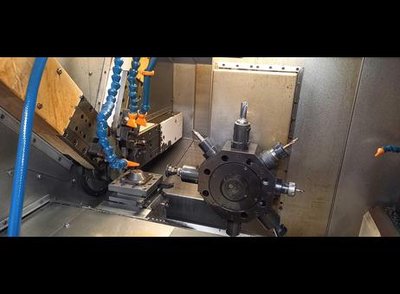

Visual inspection shows the lathe has a control panel with a screen, multiple buttons, and dials, allowing for user-friendly operation. The lathe turret holds multiple tool holders and cutting tools, supported by coolant hoses with orange nozzles positioned above the tools to assist in temperature management during machining. Interior metal surfaces display signs of use but no visible damage, indicating the machine has been maintained in operational condition.
This Kovosvit Compact A35 is situated in an industrial workshop environment and is suitable for users seeking a reliable multispindle CNC lathe with comprehensive tooling and feeding capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Type: Compact A35
Producer: Kovosvit
Made in: 2005
Characteristic:
Control system: Fanuc 16i-TB
Total hours: 18658 h
Hours on: 10202 h
Max. bar diameter: 35 mm
Maximum power of the main spindle: 7.5 kW
Maximum spindle speed: 7000 1/min
Number of CNC controlled axles: 8 pcs
Length: 2250 mm
Width: 1480 mm
Height: 1890 mm
Weight: 3450 kg
Equipment:
Bar feeder (3 meters) LNS Sprint 555
Part of the sale:
Collets
auxiliary head
Polished holders VDI25/ER32
Axis tool holders VDI25
Straight and angled power tool holders
Fitting the machine with tools (square 16x16 mm)
The feeder is equipped with guide channels pushers and reduction bushings
