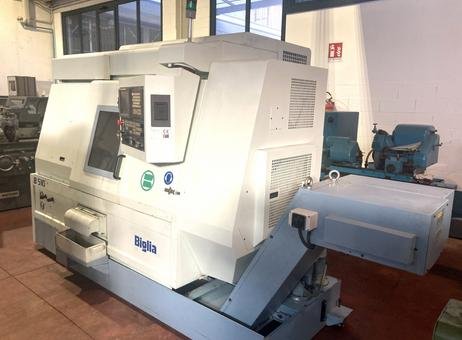

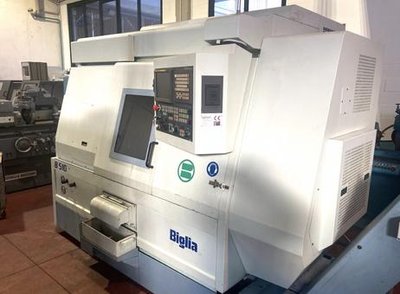

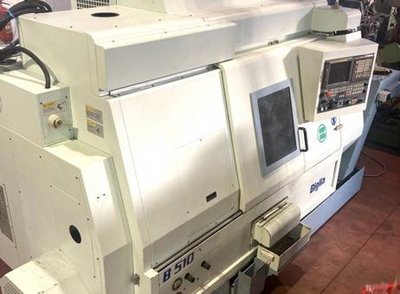

BIGLIA B 510 YB-8 cnc lathe

BIGLIA B 510 YB-8 cnc lathe
Verified seller
Price on request
Make an offer
Manufacturer
BIGLIA
Model
B 510 YB-8
Year
2003
Location
Italy
Category
Lathes - CNC lathes
Product id
P240219078
Buy this machine
Language
Language
cnc струг BIGLIA B 510 YB-8
Soustruh cnc BIGLIA B 510 YB-8
cnc drejebænk BIGLIA B 510 YB-8
BIGLIA B 510 YB-8 Drehmaschine CNC
cnc τόρνος BIGLIA B 510 YB-8
BIGLIA B 510 YB-8 cnc lathe
Torno cnc BIGLIA B 510 YB-8
Tour cnc BIGLIA B 510 YB-8
cnc tokarski stroj BIGLIA B 510 YB-8
BIGLIA B 510 YB-8 cnc eszterga
Tornio cnc BIGLIA B 510 YB-8
cnc tekinimo staklės BIGLIA B 510 YB-8
BIGLIA B 510 YB-8 cnc-draaibank
Tokarka CNC BIGLIA B 510 YB-8
Torno CNC BIGLIA B 510 YB-8
strung cnc BIGLIA B 510 YB-8
BIGLIA B 510 YB-8 Токарный станок с ЧПУ
cnc strug BIGLIA B 510 YB-8
BIGLIA B 510 YB-8 cnc svarv
Cnc torna BIGLIA B 510 YB-8
Get price & details
+39 030 …
Show phone
Details
About this seller
Specifications
Turning length
510 mm
Ø above the bed
320 mm
Type of CNC
Fanuc 18iT
X-axis
210 mm
Z-axis
510 mm
Spindle taper
ASA8”
Spindle bore
92 mm
Number of tools on turret
12
Number of rotating tools
12
Turning speed
3200 rpm
Spindle motor power
22 kW
Tailstock
no
Bar feeder
yes
-------------------
Length x width x height
4000.0
× 1940.0
× 1765.0
Weight
4500 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
23/04/2026
Show more
Automatic description (AI-Generated)
This Biglia B 510 YB-8 CNC lathe, manufactured in 2003, is a versatile machine designed for precision turning operations. It features a maximum turning length of 510 mm and can handle diameters up to 320 mm above the bed and 80 mm from the bar, with a maximum machinable diameter on the bench of 520 mm. The lathe is equipped with a powerful 22 kW spindle motor capable of reaching speeds up to 3200 rpm, supported by a spindle bore diameter of 92 mm.
The machine includes a 12-position turret with all tools motorized and capable of rotating at speeds up to 3000 rpm, enhancing productivity and flexibility for complex machining tasks. The X and Z axes travel distances are 210 mm and 510 mm respectively, allowing for precise tool movements. Additional axes include a B-axis stroke of 500 mm with rapid feed rates of 12 m/min, and Y2 axis stroke of ±60 mm, broadening the machining capabilities.

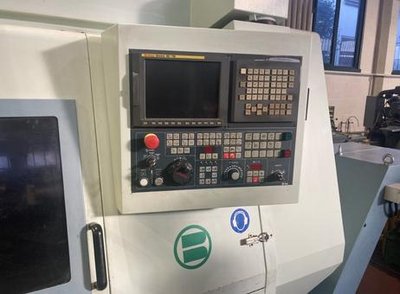

The CNC control system is a Fanuc 18iT, known for its reliability and advanced programming features including Easy Cycle Ball and Polygoning functions. The lathe also features a tailstock with an 85 mm quill diameter and 100 mm stroke.

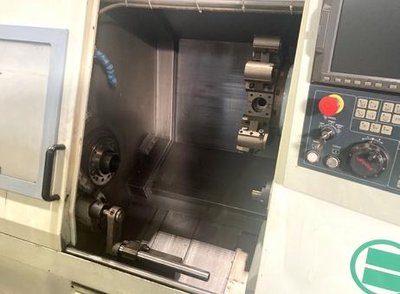

Physically, the machine measures 4000 mm in length, 1940 mm in width, and 1765 mm in height, weighing approximately 4500 kg. It comes with a chip conveyor mounted on the right side to facilitate efficient chip removal during operations. The machine is enclosed with a large windowed door providing visibility into the machining area, which houses the chuck and tool turret. The control panel is mounted on the front and includes a screen, keypad, multiple function buttons, rotary dials, and an emergency stop button for safety. Ventilation grilles and electrical panels are located on the sides and rear, with visible warning labels for electrical hazards.
Overall, this Biglia B 510 YB-8 CNC lathe combines robust mechanical features with advanced CNC control, suitable for demanding turning applications in industrial environments. The machine shows minor signs of wear and surface dirt consistent with normal use but no visible damage.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Capacity: 80/320x510 mm
Working range Max machinable diameter from bar: 80 mm
Max machinable diameter from shot: 320 mm
Max machinable diameter on the bench: 520 mm
Max machinable length: 510 mm
Cnc Cnc: Fanuc 18iT
Notes: Easy Cicle Ball, Polygoning
Main spindle Max rotational speed: 3200 rpm
Spindle nose: ASA8
Spindle Bore: 92 mm
Inside diameter of bearings: 130 mm
Max power: 22/26 Kw
C-axis resolution: 0.001 °
C-axis speed: 100 Rpm
Tailstock quill diameter: 85 mm
Tailstock stroke: 100 mm
Cone: CM4
B-axis stroke: 500 mm
Rapid b-axis: 12 m/min
Turret 2 Number of positions: 12
Rotation time (1 pos): 0.15 sec.
Number of motorized positions: 12
Motorized tool speed: 3000 rpm
Motorized tool power: 3.7 Kw
X2 axis travel: 210 mm
Rapid x2 axis: 12 m/min
Z2 axis stroke: 510mm
Y2 axis stroke: 120mm (+/-60) mm
Rapid y2 axis: 6 m/min
Total machine weight: 4500kg
Machine overall dimensions: 4000x1940x1765 mm
Chip conveyor: yes
Bar loader: IEMCA TAL AUTO65
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
