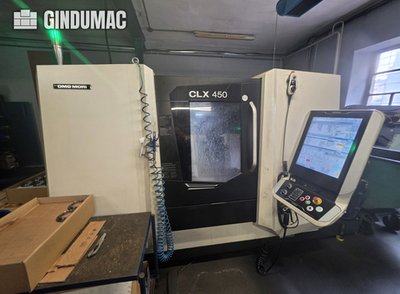

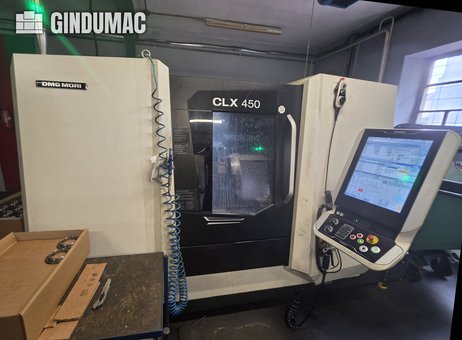

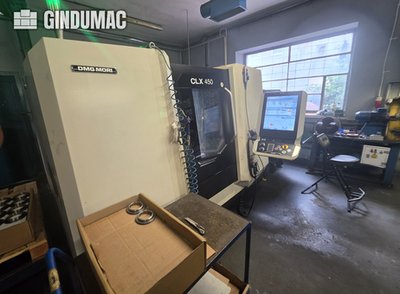

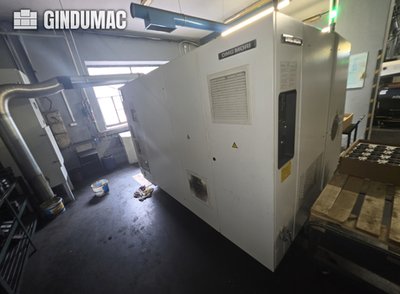

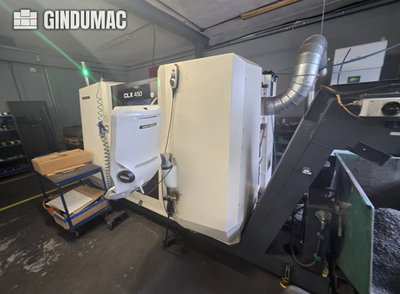

DMG MORI CLX 450 V3 CNC lathe
34.00 €
Договірна
| Стан | gebraucht |
|---|---|
| Виробник | DMG |
| Рік виробництва | 2018 |
| Manufacturer | DMG MORI |
| Model | CLX 450 V3 |
| Year | 2018 |
| Location | Poland |
| Category | Lathes - CNC lathes |
| Turning length | mm |
| Turning Ø | mm |
| Ø above the bed | mm |
| Ø above transversing slide | mm |
| Type of CNC | Moric T5F CNC Control |
| X-axis | mm |
| Z-axis | mm |
| Spindle taper | JIS A2-8 |
| Spindle bore | mm |
| Number of tools on turret | 12 |
| Turning speed | rpm |
| Spindle motor power | kW |
| Tailstock | no |
| Bar feeder | no |
| Weight | 5400 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Dmg Mori CLX 450 V3 |
| Last availability date | 08/10/2026 |
| Product id | P261005211 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2038 |
| Last activity | Oct. 10, 2026 |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Length between centers | mm |
| Max workpiece weight | kg |
Опис
This 3-axis DMG MORI CLX 450 V3 was manufactured in 2018. It features a maximum turning diameter of 400 mm and a turning length of 800 mm, with an impressive spindle speed of 4,000 rpm. The machine includes a 12-position VDI 40 turret and driven tools for enhanced versatility. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 450 V3 horizontal turning machine we have for sale. Contact us for further details.Working capacity and axes:
Axes: X, Z; C-axis on main spindle
No Y-axis; no counter spindle (V3 configuration)
Max turning diameter: 400 mm
Max turning length: 800 mm
Swing over bed: 700 mm
Swing over cross slide: 500 mm
Rapid traverse X/Z: 30 m/min
Direct measuring systems on X and Z
Main spindle:
Spindle nose: A2-8
Bar capacity: 80 mm
Power: 25.5 kW @ 40% duty / 17 kW continuous
Torque: 426 Nm @ 40% duty / 283 Nm continuous
Chuck: Hydraulic 3-jaw BB-D 250/Z220, D 78 mm (as per original offer)
Tool turret:
12-position VDI 40 turret with 6 additional BT stations
Driven tools:
Max speed: 4,000 rpm
Power: 5.44 kW @ 40% duty
Torque: 20 Nm @ 40% duty
Tailstock:
Tailstock travel: 800 mm
Centre taper: MT5
Max thrust: 8 kN
Tailstock foot pedal
Included options:
Production package
12-bar coolant pump
Manual washdown gun for working area
Dual coolant filter
Tool probe in the working area
Preparation for oil mist extraction
Easy Tool Monitoring
DMG MORI Messenger V2
DMG MORI Netservice client
German screen language and documentation
Hour meter:
Power on: 38,556 h
Spindle: 20,876 h
Control Brand: SIEMENS
Control Model: DMG MORI SLIMline Multi-Touch
Counter Spindle: no
Driven Tools: yes
Machine Weight: 5400 kg
Number of Axes: 3
Tool Stations: 12
Spindle Power: 25.5 kW
Spindle Speed: 4000 RPM
X-axis Travel: 271 mm
Z-axis Travel: 830 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Axes: X, Z; C-axis on main spindle
No Y-axis; no counter spindle (V3 configuration)
Max turning diameter: 400 mm
Max turning length: 800 mm
Swing over bed: 700 mm
Swing over cross slide: 500 mm
Rapid traverse X/Z: 30 m/min
Direct measuring systems on X and Z
Main spindle:
Spindle nose: A2-8
Bar capacity: 80 mm
Power: 25.5 kW @ 40% duty / 17 kW continuous
Torque: 426 Nm @ 40% duty / 283 Nm continuous
Chuck: Hydraulic 3-jaw BB-D 250/Z220, D 78 mm (as per original offer)
Tool turret:
12-position VDI 40 turret with 6 additional BT stations
Driven tools:
Max speed: 4,000 rpm
Power: 5.44 kW @ 40% duty
Torque: 20 Nm @ 40% duty
Tailstock:
Tailstock travel: 800 mm
Centre taper: MT5
Max thrust: 8 kN
Tailstock foot pedal
Included options:
Production package
12-bar coolant pump
Manual washdown gun for working area
Dual coolant filter
Tool probe in the working area
Preparation for oil mist extraction
Easy Tool Monitoring
DMG MORI Messenger V2
DMG MORI Netservice client
German screen language and documentation
Hour meter:
Power on: 38,556 h
Spindle: 20,876 h
Control Brand: SIEMENS
Control Model: DMG MORI SLIMline Multi-Touch
Counter Spindle: no
Driven Tools: yes
Machine Weight: 5400 kg
Number of Axes: 3
Tool Stations: 12
Spindle Power: 25.5 kW
Spindle Speed: 4000 RPM
X-axis Travel: 271 mm
Z-axis Travel: 830 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
