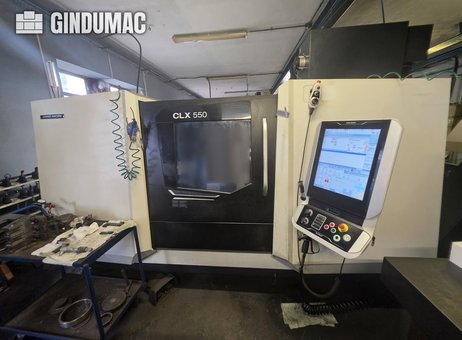

DMG MORI CLX 550 V3 CNC lathe
34.00 €
Договірна
| Стан | gebraucht |
|---|---|
| Виробник | DMG |
| Рік виробництва | 2020 |
| Manufacturer | DMG MORI |
| Model | CLX 550 V3 |
| Year | 2020 |
| Location | Poland |
| Category | Lathes - CNC lathes |
| Turning length | 500 mm |
| Turning Ø | 230 mm |
| Ø above the bed | 800 mm |
| X-axis | 160 mm |
| Z-axis | 32 mm |
| Turning speed | 6000 rpm |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | - × - × - |
| Weight | 7200 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Dmg Mori CLX 550 V3 |
| Last availability date | 05/10/2026 |
| Product id | P261005205 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |
| Type of CNC | FANUC 18i-tb |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle motor power | 12 kW |
| Spindle taper | ASA 5 |
| Number of tools on turret | 5000 |
| Length between centers | 890 mm |
| Max workpiece weight | kg |
| Spindle bore | 60 mm |
| Ø above transversing slide | 590 mm |
Опис
This 3-axis DMG MORI CLX 550 V3 was manufactured in 2020. It features a maximum turning diameter of 480 mm and a turning length of 1240 mm. The machine is equipped with a 12-position VDI 40 turret and a maximum spindle speed of 3250 rpm. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 550 V3 horizontal turning machine we have for sale. Contact us for further details.Control panel: DMG MORI SLIMline Multi-Touch, 19-inch touchscreen
Controlled axes: 3 (X, Z, C)
Spindle operating hours: approx. 20,292 h
Working capacity and axes
Max turning diameter: 480 mm
Max turning length: 1,240 mm
Swing over bed: 700 mm
Swing over cross slide: 500 mm
Rapid traverse X/Z: 30 m/min
Main spindle C-axis
Main spindle and chuck
Spindle nose: A2-8
Upgraded bar capacity: 102 mm
Spindle power: 33 kW @ 40% / 22 kW continuous
Spindle torque: 630 Nm @ 40% / 420 Nm continuous
Hydraulic chuck: SMW BH-D 320 / A2-8, D103 mm
Differential clamping pressure function
Tool turret and driven tools
Turret: 12-position VDI 40 with 6 additional BT stations
Driven tools: yes
Max driven-tool speed: 4,000 rpm
Driven-tool power: 5.44 kW @ 40%
Driven-tool torque: 20 Nm @ 40%
Tailstock
Tailstock travel: 1,200 mm
Centre taper: MT5
Max thrust: 12 kN
Equipment and options
Setup package
Tropical climate package
12-bar coolant supply system
Manual working-area washdown gun
Variable spindle speed function
DMG MORI Service Agent
DMG MORI Messenger V2
DMG MORI NETservice
DMG MORI IoTconnector
Screen languages: German/Polish
Construction
Inclined cast-iron bed
Linear guideways, width 45 mm
Additional equipment
Mechanical oil mist extraction unit, 1,100 m³/h
WTO VDI 40 driven-tool holder set
Set of three soft jaws for BH-D315 chuck
Control Brand: SIEMENS
Control Model: Siemens 840D with ShopTurn
Counter Spindle: no
Driven Tools: yes
Machine Weight: 7200 kg
Number of Axes: 3
Tool Stations: 12
Spindle Power: 33 kW
Spindle Speed: 3250 RPM
X-axis Travel: 307.5 mm
Z-axis Travel: 1240 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
