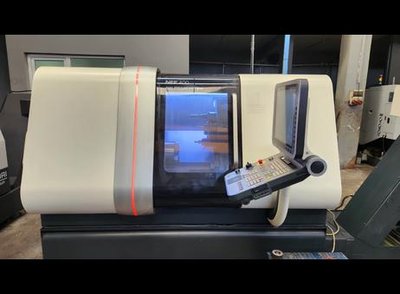

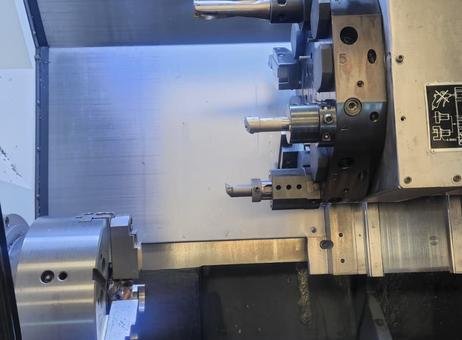

DMG NEF 400 CNC багатошпиндельний верстат

DMG NEF 400 CNC multi-spindle lathe
47,500 €
Make an offer
DMG
NEF 400
2012
Turkey
Lathes - CNC multi-spindle lathes
P260406016
Max. Ø
350 mm
Nbr of spindles
Max. length
650 mm
Type of CNC
Nbr of axes
Number of tools
Spindle speed
4000 rpm
Spindle power
11.5 kW
Length x width x height
3800.0 × 2215.0 × 1990.0
Weight
3265 kg
as-is, where-is
yes
in production
Datasheet
DMG NEF 400
06/04/2026

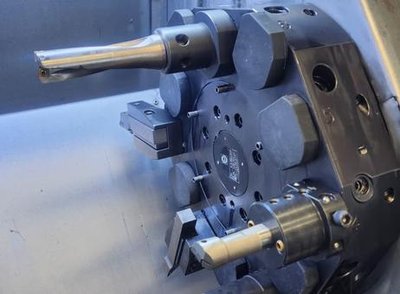

The DMG NEF 400 is a robust metal lathe manufactured in 2012 by DMG, designed to accommodate a range of turning operations. It features a maximum turning diameter of 350 mm and supports a maximum turning length of 650 mm, making it suitable for medium-sized workpieces. The lathe has a spindle speed of up to 4000 rpm powered by an 11.5 kW motor, providing adequate power for various machining tasks. This machine measures 3800 mm in length, 2215 mm in width, and 1990 mm in height, with a total weight of 3265 kg. Its spindle bore diameter is 65 mm, and it includes a spindle taper of Morse MK4. The swing over bed is 385 mm, and the swing over slide is 350 mm, offering versatility for different turning diameters. The lathe also has a faceplate diameter of 200 mm and a spindle end conforming to A6 DIN 55026 standards. The NEF 400 is equipped with a multi-spindle tool turret that holds multiple tool holders and installed cutting tools, enhancing productivity and flexibility in machining. The tool holders support a VDI 30 tool shank cross-section of 20×20 mm, with six driven tools available. The turret can rotate at speeds up to 4500 rpm and is powered by a drive delivering up to 4.4 kW at 40% duty cycle. Additional features include a tailstock extension of 580 mm and rapid traverse rates on the X and Z axes of 30 m/min. The thrust forces on the X and Z axes vary depending on the duty cycle, with maximum forces of 5 kN and 8.5 kN respectively at 40% duty cycle. The machine operates on a 400 V, 50/60 Hz power supply. The condition of the machine appears well-maintained, with interior surfaces showing only minor signs of use. A chuck is installed on the left side for securely holding workpieces during machining operations. Overall, the DMG NEF 400 is a versatile and powerful lathe suitable for various industrial metal turning applications. Technical specifications of the DMG MORI NEF 400 metal lathe
- Maximum turning diameter: 350 mm
- Bar diameter: 52 mm
- Swing over bed: 385 mm
- Swing over slide: 350 mm
- Maximum turning length: 650 mm
- Center-to-center distance: 805 mm
- Travel on X/Z axes: 255/700 mm
- Travel on Z axis (tailstock): 580 mm
- Rapid traverse on X/Z axes: 30 m/min
- Thrust force on X/Z axes (100% duty cycle): 4.5/6.2 kN
- Thrust force on X/Z axes (40% duty cycle): 5/8.5 kN
- Maximum spindle speed: 4000 rpm
- Spindle bore diameter: 65 mm
- Spindle diameter: 90 mm
- Spindle drive power (100% ED/40% ED): 11.5/15.3 kW
- Spindle torque (100% ED/40% ED): 293/390 Nm
- Spindle end: A6 DIN 55026
- Distance from spindle nose to floor: 1040 mm
- Faceplate diameter: 200 mm
- Maximum turret rotation speed: 4500 rpm
- Turret drive power (100% duty cycle / 40% duty cycle): 3.3/4.4 kW
- Turret torque (100% duty cycle / 40% duty cycle): 16/21 Nm
- Tool holder: VDI 30
- Number of driven tools: 6
- Tool shank cross-section: 20×20 mm
- Tailstock extension: 580 mm
- Spindle taper: Morse MK4
- Maximum spindle thrust force: 680 daN
- Power supply: 400 V; 50/60 Hz
- Dimensions (with chip conveyor L x W x H): 3800 x 2215 x 1990 mm
- Weight of the DMG GILDEMEISTER NEF 400 machine: 3265 kg
