DN SOLUTIONS PUMA 5100 MB CNC токар

DN SOLUTIONS PUMA 5100 MB CNC lathe
Top seller
Price on request
Make an offer
Manufacturer
DN SOLUTIONS
Model
PUMA 5100 MB
Year
2023
Location
Germany
Category
Lathes - CNC lathes
Product id
P260316126
Buy this machine
Language
Language
CNC струг DN SOLUTIONS PUMA 5100 MB
CNC soustruh DN SOLUTIONS PUMA 5100 MB
DN SOLUTIONS PUMA 5100 MB CNC-drejebænk
DN SOLUTIONS PUMA 5100 MB CNC-Drehmaschine
Τόρνος CNC DN SOLUTIONS PUMA 5100 MB
DN SOLUTIONS PUMA 5100 MB CNC lathe
Torno CNC DN SOLUTIONS PUMA 5100 MB
Tour CNC DN SOLUTIONS PUMA 5100 MB
CNC tokarski stroj DN SOLUTIONS PUMA 5100 MB
DN SOLUTIONS PUMA 5100 MB CNC esztergagép
Tornio CNC DN SOLUTIONS PUMA 5100 MB
DN SOLUTIONS PUMA 5100 MB CNC tekinimo staklės
DN SOLUTIONS PUMA 5100 MB CNC-draaibank
Tokarka CNC DN SOLUTIONS PUMA 5100 MB
Torno CNC DN SOLUTIONS PUMA 5100 MB
Strung CNC DN SOLUTIONS PUMA 5100 MB
DN SOLUTIONS PUMA 5100 MB Токарный станок с ЧПУ
CNC strug DN SOLUTIONS PUMA 5100 MB
DN SOLUTIONS PUMA 5100 MB CNC-svarv
CNC torna DN SOLUTIONS PUMA 5100 MB
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
952 mm
Turning Ø
650 mm
Ø above the bed
650 mm
Type of CNC
turn-mill centre
X-axis
362 mm
Z-axis
1105 mm
Spindle taper
Spindle bore
117166 mm
Number of tools on turret
12
Turning speed
1500 rpm
Spindle motor power
45 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
4759.0
× 2056.0
× 2194.0
Weight
10750 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
DN SOLUTIONS PUMA 5100 MB
Last availability date
25/04/2026
Show more
Automatic description (AI-Generated)
DN SOLUTIONS PUMA 5100 MB CNC Lathe
Manufacturer: DN SOLUTIONS
Model: PUMA 5100 MB
Year of Manufacture: 2023
This CNC lathe is a robust and precise machine designed for advanced machining tasks. It features a substantial build with dimensions of 4759 mm in length, 2056 mm in width, and 2194 mm in height, weighing approximately 10,750 kg. The machine is equipped with a powerful 45 kW spindle motor capable of reaching turning speeds up to 1500 RPM, ensuring efficient material removal and high productivity.
The lathe supports a maximum turning diameter of 650 mm and a turning length of 952 mm, with X-axis and Z-axis travels of 362 mm and 1105 mm respectively. It includes a spindle bore ranging from 117 to 166 mm depending on configuration, suitable for various bar capacities.
The tool turret accommodates 12 tool stations with a BMT75 interface, allowing versatile tooling options. The machine incorporates box guideways for stable and precise movements and is equipped with a high-pressure coolant system through the turret, enhancing machining performance and tool life.
Additional features include a programmable tailstock, automatic hydraulic tool measurement, cutting force monitoring, and fixed entry point thread cutting with variable speed. The lathe also has an automatic machine door and an additional handwheel for manual adjustments.
Electrical specifications include a 380 V, 3-phase power supply with a rated power of 61.56 kVA and full load current of 93.53 A.

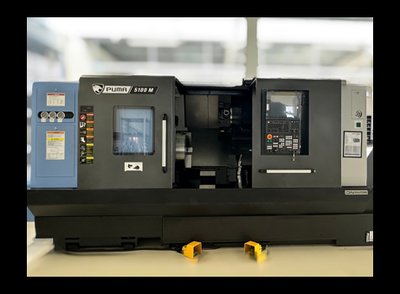

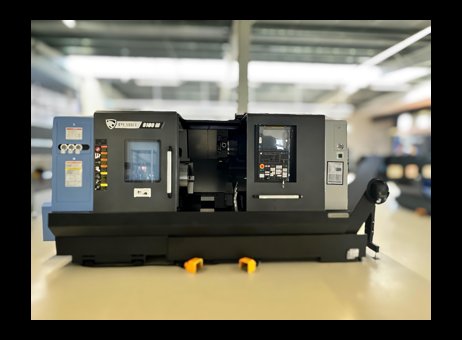

The machine includes a FANUC 0i-F Plus iHMI Touch control panel located on the right side, featuring a screen and multiple buttons for user-friendly operation. The lathe has a viewing window on the left door for monitoring the machining area safely. Yellow foot pedals are positioned in front of the machine for operational convenience.

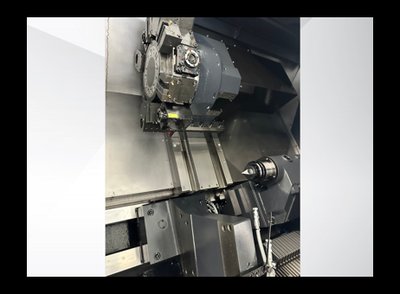

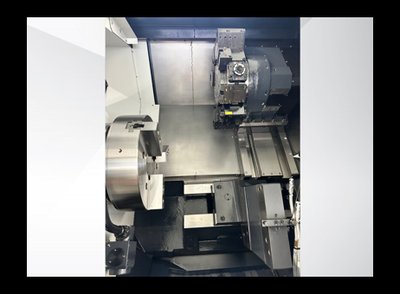

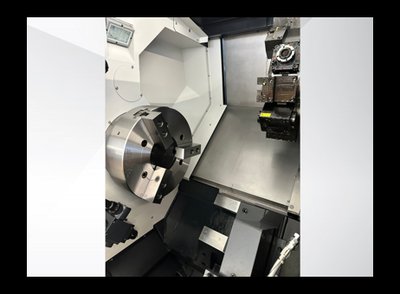

The interior machining area is clean and well-maintained, with visible linear guide rails and slideways, a large spindle chuck, and a tool turret. The machining area is well-lit, facilitating clear visibility during operation. A chip conveyor is included for efficient chip removal. The machine also features a counter spindle and driven tools, expanding its machining capabilities.
Overall, the DN SOLUTIONS PUMA 5100 MB CNC lathe is a high-quality, well-equipped machine suitable for precision turn-mill operations, combining advanced features and solid construction for demanding industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Offer Title: DN SOLUTIONS PUMA 5100 MB CNC Lathe
Manufacturer: DN SOLUTIONS
Model: PUMA 5100 MB
Year of Manufacture: 2023
Technical Condition: As-is, where-is
Dimensions:
Length: 4759 mm
Width: 2056 mm
Height: 2194 mm
Weight: 10750 kg
Turning Specifications:
Maximum Turning Diameter: 650 mm
Turning Length: 952 mm
Spindle Bore: 117 - 166 mm (depending on configuration)
Turning Speed: 1500 RPM
Axis Travel:
X-axis Travel: 362 mm
Z-axis Travel: 1105 mm
Performance:
Rapid Traverse Speed: Up to 20 m/min
Rapid Traverse X: 16 m/min
Rapid Traverse Z: 20 m/min
Maximum Rapid Traverse: 20 m/min
Main Spindle Torque: 2957 Nm
Spindle Power: 45 kW
Tooling:
Main Spindle Chuck Size: 21 inch (535 mm)
Bar Capacity: 166 mm
Driven Tools Speed: 4000 RPM
Number of Tool Stations: 12
Tool Interface: BMT75
Additional Features:
Guideway Type: Box guideways
Coolant System: High pressure coolant through turret
Tailstock: Programmable tailstock
Tool Measurement: Automatic hydraulic tool measurement
Cutting Force Monitoring: Yes
Thread Cutting: Fixed entry point with variable speed
Additional Handwheel: Yes
Automatic Machine Door: Yes
Electrical Specifications:
Electrical Connection: 380 V
Electrical Supply: 3 phase
Frequency: 50 / 60 Hz
Rated Power: 61.56 kVA
Full Load Current: 93.53 A
Short Circuit Capacity: 10 kA
Interrupting Capacity: 5 kA
Additional Equipment:
Chip Conveyor: Included
Control Brand: FANUC
Control Model: 0i-F Plus iHMI Touch
Counter Spindle: Yes
Driven Tools: Yes
This high-quality turn-mill centre is designed for precision and efficiency, making it an excellent choice for your machining needs.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
