DOOSAN Lynx 2100A CNC токар

DOOSAN Lynx 2100A CNC lathe
Top seller
Make an offer
DOOSAN
Lynx 2100A
2021
Hungary
Lathes - CNC lathes
P260319244
+34 679 …
Turning length
330 mm
Turning Ø
350 mm
Ø above the bed
600 mm
Type of CNC
X-axis
205 mm
Z-axis
340 mm
Max workpiece weight
300 kg
Spindle taper
Spindle bore
52 mm
Number of turrets
1
Number of tools on turret
12
Turning speed
6000 rpm
Spindle motor power
1.1 kW
Tailstock
no
Bar feeder
no
Weight
3100 kg
2898 hours
as-is, where-is
Datasheet
Doosan LYNX 2100 LYB
25/04/2026

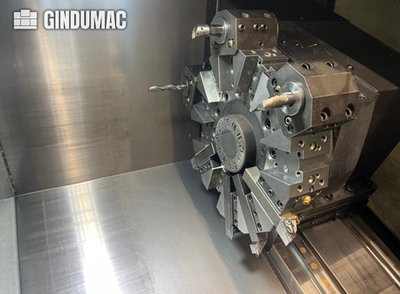

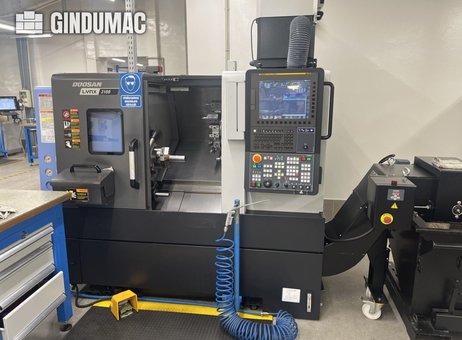

This listing features a DOOSAN Lynx 2100A CNC horizontal turning machine, manufactured in 2021. The machine is designed for precision turning with a maximum turning diameter of 350 mm and a turning length of 330 mm, accommodating a spindle bore of 52 mm. It is powered by a 1.1 kW spindle motor capable of reaching speeds up to 6,000 rpm, enabling efficient machining of small to medium-sized parts. The lathe includes a single turret equipped with 12 tool stations, allowing for versatile tooling options and quick tool changes. The machine travels 205 mm along the X-axis and 340 mm along the Z-axis, providing adequate movement for various turning operations. It weighs approximately 3,100 kg, reflecting its robust industrial construction. Additional features observed include a control panel with a screen and multiple buttons and knobs positioned on the right side of the machine, facilitating user operation. Safety and warning labels are present on the machine door, ensuring compliance with safety standards. A blue coiled air hose is attached to the front, which may assist in cleaning or other pneumatic functions. The machine's exterior appears clean and well-maintained, with no visible signs of damage or rust. Ventilation and electrical components are located on the rear and side, with warning and instruction labels visible on a blue panel. A tool storage rack with various tools is also present nearby, supporting efficient workflow. This DOOSAN Lynx 2100A is CE certified and includes features such as a programmable tailstock with a rotating tip, high-pressure coolant system, automatic tool setting, and Doosan's tool load monitoring system. Included accessories consist of a basic tool holder set, oil mist extractor, chip conveyor, and workpiece collecting box. Note that the machine does not have a counter spindle or driven tools. With 2,898 operating hours, it is suitable for buyers seeking a reliable and capable CNC turning solution. For further information or inquiries, please contact us. Horizontal turning machine manufactured in 2021. This DOOSAN Lynx 2100A features a maximum turning diameter of 350 mm and a turning length of 330 mm. It is equipped with a spindle speed of 6,000 rpm and a chuck size of 6” (160 mm). If you are looking to get high-quality turning capabilities, consider the DOOSAN Lynx 2100A machine we have for sale. Contact us for further details.Chuck size: 6" (160 mm)
Bar capacity through spindle: Ø52 mm
Max turning diameter: Ø350 mm
Max turning length: 330 mm
Rapid traverse (X/Z): 36 m/min
Tool size: 25 x 25 mm (OD), Ø32 mm (ID)
Turret: 12 stations, tool change time 0.15 s
Tailstock: Programmable with rotating tip
Options/features: Doosan tool load monitoring system; Automatic tool setting; High‑pressure coolant 7 bar (1.1 kW); Oil separator; Electrical noise suppression; Bar feeder preparation
Certification/Power: CE certification; Transformer
Operating hours: 2,898 h
Additional equipment
Basic tool holder set
Oil mist extractor
Chip conveyor
Workpiece collecting box (parts collection)
Counter Spindle: no
Driven Tools: no
Machine Weight: 3100 kg
Number of Axes: 2
Spindle Speed: 6000 RPM
X-axis Travel: 205 mm
Z-axis Travel: 340 mm
