DOOSAN PUMA 2500SY cnc lathe

DOOSAN PUMA 2500SY cnc lathe
Top seller
Price on request
Make an offer
Manufacturer
DOOSAN
Model
PUMA 2500SY
Year
2006
Location
South Korea
Category
Lathes - CNC lathes
Product id
P240123132
Buy this machine
Language
Language
cnc струг DOOSAN PUMA 2500SY
Soustruh cnc DOOSAN PUMA 2500SY
cnc drejebænk DOOSAN PUMA 2500SY
DOOSAN PUMA 2500SY Drehmaschine CNC
cnc τόρνος DOOSAN PUMA 2500SY
DOOSAN PUMA 2500SY cnc lathe
Torno cnc DOOSAN PUMA 2500SY
Tour cnc DOOSAN PUMA 2500SY
cnc tokarski stroj DOOSAN PUMA 2500SY
DOOSAN PUMA 2500SY cnc eszterga
Tornio cnc DOOSAN PUMA 2500SY
cnc tekinimo staklės DOOSAN PUMA 2500SY
DOOSAN PUMA 2500SY cnc-draaibank
Tokarka CNC DOOSAN PUMA 2500SY
Torno CNC DOOSAN PUMA 2500SY
strung cnc DOOSAN PUMA 2500SY
DOOSAN PUMA 2500SY Токарный станок с ЧПУ
цнц струг DOOSAN PUMA 2500SY
DOOSAN PUMA 2500SY cnc svarv
Cnc torna DOOSAN PUMA 2500SY
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
500 mm
Turning Ø
330 mm
Ø above the bed
600 mm
Ø above transversing slide
550 mm
Length between centers
650 mm
Type of CNC
Fanuc Series 18-i TB
X-axis
250 mm
Z-axis
580 mm
Max workpiece weight
kg
Spindle taper
A2#8
Spindle bore
86 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
Turning speed
3500 rpm
Spindle motor power
22.4 kW
Tailstock
no
Bar feeder
no
-------------------
worked hours
hours under power
state
good
At local norms
---------
status
Datasheet
Daewoo Puma 2500SY
Last availability date
24/04/2026
Show more
Automatic description (AI-Generated)
This DOOSAN PUMA 2500SY CNC lathe, manufactured in 2006, is designed for precision turning operations. It features a Fanuc Series 18i-TB control unit, providing reliable and versatile CNC control. The machine offers a maximum spindle speed of 3500 rpm and a spindle bore diameter of 86 mm, allowing for efficient bar work and machining of various workpiece sizes.
The lathe has a turning length capacity of 500 mm and a maximum turning diameter of 330 mm. The swing over the bed is 600 mm, while the swing over the saddle is 550 mm. The X-axis travel is 250 mm, and the Z-axis travel is 580 mm, enabling a wide range of machining movements. Additionally, the machine is equipped with a single turret holding 12 tools, facilitating multiple tool changes during machining processes.
The turret supports tools with sizes up to 25x25 mm and includes rotary tool capability with speeds up to 5000 rpm. The control allows for precise movements with a C-axis resolution of 0.001º. The lathe includes a chip conveyor located on the right side with a hinged type for efficient chip removal.

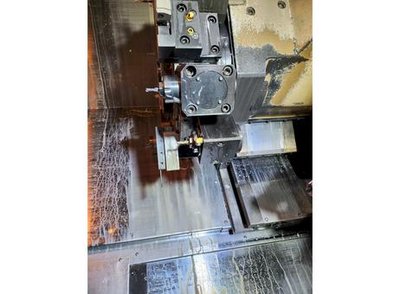

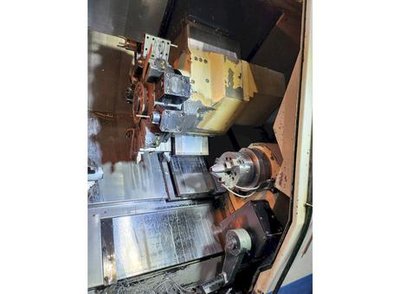

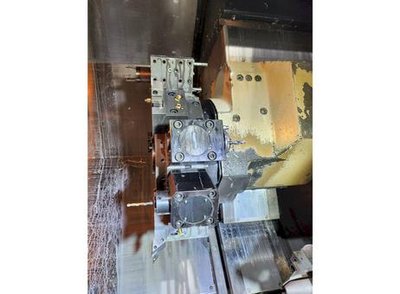

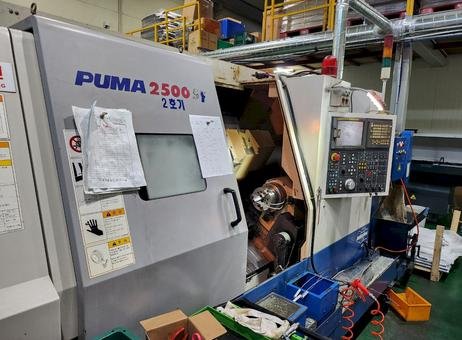

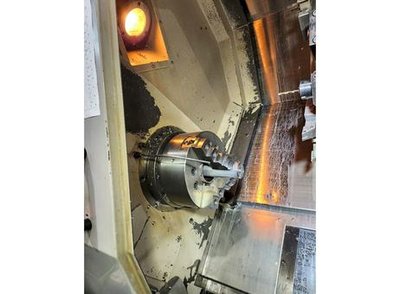

From the images, the machine shows signs of use with some wear and residue inside the working area, which is typical for used industrial equipment. The control panel is located on the right side and features various buttons, a display screen, and an emergency stop button for operational safety. A chuck is installed inside the machine for holding workpieces securely during machining.
Additional accessories visible include a bucket and a part catcher, which aid in managing machined parts and debris. The machine is CE marked and is prepared for shipment with appropriate packaging.
This DOOSAN PUMA 2500SY lathe is suitable for users seeking a robust CNC turning center with comprehensive capabilities for medium-sized workpieces.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This DOOSAN PUMA 2500SY Lathe was manufactured in the year 2006 in Korea. It is equipped with a Fanuc Series 18i-TB control unit. The machine has a spindle speed of 3500 rpm.
CNC: Fanuc Series 18-i TB
Spindle speed range: 3500 rpm
Tool taper: A2#8
X-Axis Movement: 250 mm
Y-Axis Movement: 100 mm (±50 mm)
Z-Axis Movement: 580mm
C-Axis Movement: 0.001º
Swing over bed : 600 mm
Swing over saddle : 550 mm
Max. Turning diameter : 330 mm
Max. Turning length : 500 mm
Bar working diameter : 76 mm
Spindle through hole diameter : 86 mm
Turret : 12 st
Od tool size : 25x25
Rotary tool speed : 5000
Chip conveyor (right side_hinged type)
Bucket
Part catcher
Ce
1x40hc
Wood pack+vacuum pack
Mpg handle transformer
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2019
Offers online
1984
Last activity
April 25, 2026
GINDUMAC GmbH
Top seller
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
Seller's description
This DOOSAN PUMA 2500SY Lathe was manufactured in the year 2006 in Korea. It is equipped with a Fanuc Series 18i-TB control unit. The machine has a spindle speed of 3500 rpm.
CNC: Fanuc Series 18-i TB
Spindle speed range: 3500 rpm
Tool taper: A2#8
X-Axis Movement: 250 mm
Y-Axis Movement: 100 mm (±50 mm)
Z-Axis Movement: 580mm
C-Axis Movement: 0.001º
Swing over bed : 600 mm
Swing over saddle : 550 mm
Max. Turning diameter : 330 mm
Max. Turning length : 500 mm
Bar working diameter : 76 mm
Spindle through hole diameter : 86 mm
Turret : 12 st
Od tool size : 25x25
Rotary tool speed : 5000
Chip conveyor (right side_hinged type)
Bucket
Part catcher
Ce
1x40hc
Wood pack+vacuum pack
Mpg handle transformer
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
