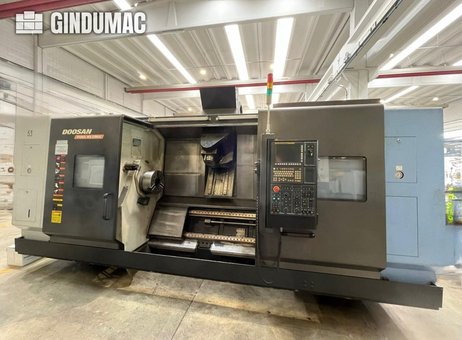

DOOSAN PUMA MX3100 CNC lathe
34.00 €
Договірна
| Стан | gebraucht |
|---|---|
| Виробник | Fanuc |
| Рік виробництва | 2012 |
| Manufacturer | DOOSAN |
| Model | PUMA MX3100 |
| Year | 2012 |
| Location | Italy |
| Category | Lathes - CNC lathes |
| Turning length | 1000 mm |
| Turning Ø | 210 mm |
| Ø above the bed | 550 mm |
| Ø above transversing slide | 290 mm |
| Length between centers | 300 mm |
| X-axis | 282 mm |
| Z-axis | 1030 mm |
| Max workpiece weight | 200 kg |
| Spindle bore | 76 mm |
| Turning speed | 5000 rpm |
| Spindle motor power | 15 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | - × - × - |
| Weight | 15200 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Doosan Puma MX3100 |
| Last availability date | 05/10/2026 |
| Product id | P260923222 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |
| Type of CNC | FANUC 31i |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle taper | ASA 8 |
| Number of tools on turret | 10 |
Опис
This 7-axis DOOSAN PUMA MX3100S was manufactured in 2012. It features an impressive maximum turning diameter of 760 mm and a turning length of 1,500 mm. The machine is equipped with a 40-tool Capto C6 automatic tool changer and offers high spindle speeds of up to 12,000 rpm. If you are looking to get high-quality turning capabilities, consider the DOOSAN PUMA MX3100S horizontal turning machine we have for sale. Contact us for further details.Bed: Cast iron with linear roller guides on all axes
Left spindle (main)
Spindle nose: ASA A2-11
Chuck: Hydraulic 3-jaw, Ø315 mm
Max available power from: 238 rpm
Max torque: 1,003 / 1,203 Nm
Built-in spindle motor; front bearing Ø160 mm
Spindle bore: 115 mm; draw tube ID: 103 mm
C1 positioning: continuous/interpolated, 0.001° resolution, hydraulic spindle locking
Right spindle (sub)
Spindle nose: ASA A2-8
Chuck: Hydraulic 3-jaw, Ø254 mm
Speed: 40–4,000 rpm
Motor power (low/high electronic range): 15/22 kW | 22/26 kW
Max available power from: 450 rpm
Max torque: 398 / 539 / 700 Nm
Built-in spindle motor; front bearing Ø130 mm
Spindle bore: 86 mm; draw tube ID: 77 mm
C2 positioning: continuous/interpolated, 0.001° resolution, hydraulic spindle locking
Axis travels
B (upper turret rotation): 240° (±120°)
A (right spindle translation): 1,550 mm
C1/C2 (spindle rotation): ±360°
Rapid traverse / feeds
X1 / Z1 / Y: 36 / 36 / 26 m/min
A axis: 30 m/min
B-axis rotation: 42 rpm
C1 / C2 axes: 400 rpm
X1/Z1 interpolation feed: up to 500 mm/rev
Orientable upper turret / milling spindle
B-axis driven orientable head with Roller Gear Cam (RGC)
Machining on either left or right spindle
B-axis resolution: 0.001°; up to 4-axis simultaneous with FANUC 31i-A
Hirth mechanical locking: head orientation 5°; spindle orientation for multi-edge tools 30°
Spindle interface: Capto C6 (double-contact)
Speed: 60–12,000 rpm
Motor power (low/high electronic range): 10/15/18.5 kW | 15/18.5/22 kW
Max available power from: 1,500 rpm; max torque: 64 / 96 / 118 Nm
Built-in motor; air sensor for tool clamping confirmation
Centralized cooling system; rigid tapping
Automatic tool changer
Type: Floor-mounted, double-arm; long-Z movable magazine
Drives: Servo-driven tool-change arm and tool-chain rotation
Taper: Capto C6
Tool change time: tool-to-tool 1.8 s; chip-to-chip 10 s
Max tool diameter: 130 mm (adjacent empty) / 90 mm (adjacent occupied)
Max tool length: 400 mm
Machining capacity
Max swing over bed: 1,000 mm
Max swing over carriage: 700 mm
Max turning diameter from chuck: 670 mm (upper head at 0°) / 760 mm (upper head inclined)
Max turning length between centres: 1,500 mm
Max distance between spindle noses: 1,540 mm
Y-axis through-hole capacity: Ø230 mm (±115 mm)
Max bar capacity: left Ø102 mm; right Ø76 mm
Max unsupported workpiece weight: left 400 kg; right 220 kg
Coolant and standard equipment
High-pressure coolant through upper spindle: 12 bar
External coolant to upper spindle: 8 bar
Coolant tank capacity: 580 litres
Automatic lubrication system
Centralized hydraulic system with high-efficiency cooler
Electrical cabinet with heat exchanger
Work area lighting; 3-colour alarm/status lamp
Installation equipment; CE conformity declaration
FANUC 31i-A CNC features
10.4" colour LCD; extended keyboard
Manual Guide-i conversational programming
Minimum programmable increment: linear 0.001 mm; rotary 0.001°
Electronic handwheel: fixed and portable
Tool compensation: 499 pairs
Constant surface speed; rigid tapping
Polar/cylindrical/helical interpolation; 3D coordinate conversion
FANUC Custom Macro B; 10 levels subprogram nesting
Program memory: 512 KB; up to 1,000 programs
Interfaces: RS-232C, Memory Card slot, Ethernet
Spindle synchronization between left and right spindles
Additional equipment
Chip conveyor: hinged type, right-hand discharge
Control Brand: FANUC
Counter Spindle: yes
Driven Tools: yes
Machine Weight: 15200 kg
Number of Axes: 7
Tool Stations: 40
Spindle Power: 30 kW
Spindle Speed: 3000 RPM
X-axis Travel: 630 mm
Y-axis Travel: 230 mm
Z-axis Travel: 1585 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
