GILDEMEISTER AS 48 CNC багатошпиндельний верстат

GILDEMEISTER AS 48 CNC multi-spindle lathe
Verified seller
78,000 €
Make an offer
Manufacturer
GILDEMEISTER
Model
AS 48
Year
2019
Location
Switzerland
Category
Lathes - CNC multi-spindle lathes
Product id
P260308574
Buy this machine
Language
Language
CNC многошпинделен струг GILDEMEISTER AS 48
CNC vícevřetenový soustruh GILDEMEISTER AS 48
GILDEMEISTER AS 48 CNC fler-spindel drejebænk
GILDEMEISTER AS 48 CNC-Mehrspindel-Drehmaschine
Πολυάξονος τόρνος CNC GILDEMEISTER AS 48
GILDEMEISTER AS 48 CNC multi-spindle lathe
Torno CNC multihusillo GILDEMEISTER AS 48
Tour CNC multibroche GILDEMEISTER AS 48
CNC viševreteni tokarski stroj GILDEMEISTER AS 48
GILDEMEISTER AS 48 CNC többorsós esztergagép
Tornio CNC plurimandrino GILDEMEISTER AS 48
GILDEMEISTER AS 48 CNC daugiaverpstės tekinimo staklės
GILDEMEISTER AS 48 CNC-meerspillige draaibank
Tokarka CNC wielowrzecionowa GILDEMEISTER AS 48
Torno CNC multifuso GILDEMEISTER AS 48
Strung CNC multiax GILDEMEISTER AS 48
GILDEMEISTER AS 48 Многошпиндельный токарный станок с ЧПУ
CNC viševreteni strug GILDEMEISTER AS 48
GILDEMEISTER AS 48 CNC flerspindlig svarv
CNC çok milli torna GILDEMEISTER AS 48
Get price & details
Details
About this seller
Specifications
Max. Ø
48 mm
Nbr of spindles
6
Max. length
125 mm
Type of CNC
SIEMENS
Number of tools
12
Spindle speed
2120 rpm
Spindle power
17.5 kW
-------------------
Weight
10200 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Gildemeister AS 48
Last availability date
28/04/2026
Show more
Automatic description (AI-Generated)
The GILDEMEISTER AS 48 is a CNC multi-spindle lathe designed for precision machining tasks. Manufactured in 2019, this model features six spindles allowing simultaneous machining operations, enhancing productivity for complex parts. It accommodates a maximum turning diameter and bar diameter of 48 mm and supports workpieces up to 125 mm in length. The machine is equipped with 12 tool stations, providing flexibility in tooling and operations.
The spindle operates at speeds ranging from 180 to 2120 rpm, powered by a spindle motor delivering 17.5 kW, suitable for a variety of machining applications. It includes 17 speed settings to optimize machining parameters. The lathe supports processing of bars with a maximum diameter of 48 mm, including hexagonal bars up to 42 mm and square bars up to 34 mm. It can handle bar advancements of up to 225 mm and trigger thread heads approximately up to M27.
This unit measures 6130 mm in length and 1400 mm in width, with an approximate weight of 10,200 kg, reflecting its robust construction. The electrical requirements are 400 V at 50 Hz.

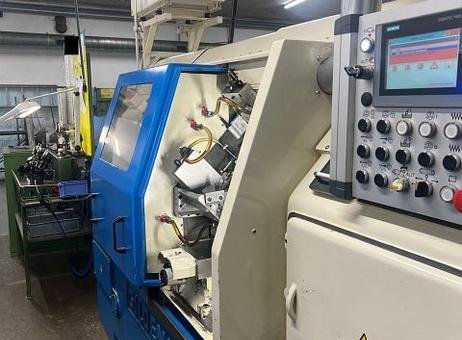

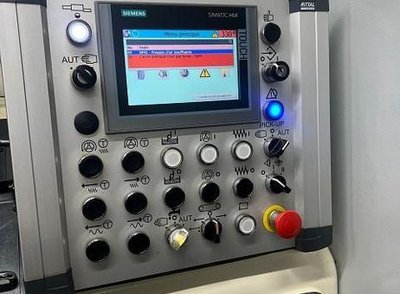

The machine features an enclosed work area with a transparent window on the door for safety and visibility. A Siemens SIMATIC HMI touch screen control panel is mounted on the right side, equipped with various buttons, knobs, and an emergency stop button for operational control and safety. The interior includes multiple tool holders, a central rotating shaft, and blue flexible coolant hoses directed at the tooling area to support cooling during machining. An exhaust or ventilation duct is attached on top of the machine to manage airflow and maintain working conditions.
Overall, the lathe appears clean and well-maintained with no visible damage, and the metal surfaces inside are polished and free from rust or wear. The interior shows some signs of use but remains in good condition with protective covers in place, indicating careful handling and maintenance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Offer Title: GILDEMEISTER AS 48 CNC Multi-Spindle Lathe
Manufacturer: GILDEMEISTER
Model: AS 48
Year of Manufacture: 2019
Technical Condition: As-is, where-is
Basic Functions:
Number of Spindles: 6
Working Range:
Turning Diameter (Max): 48 mm
Bar Diameter (Max): 48 mm
Workpiece Length Max: 125 mm
Main Spindle:
Spindle Revolutions (Min): 180 /min
Spindle Revolutions (Max): 2120 /min
Electrical Specifications:
Total Power Consumption: 17.5 kW
Mains Voltage: 400 V
Mains Frequency: 50 Hz
Dimensions / Weights:
Space Requirements - Left/Right: 6130 mm
Space Requirements - Front/Back: 1400 mm
Total Weight Approx.: 10200 kg
Attachments (Turning):
Bar Diameter (Max): 48 mm
Max Diameter Hexagonal Bars: 42 mm
Max Diameter Square Bars: 34 mm
Max Advancement Bars: 225 mm
Trigger Thread Head Up to Approx. M27
Number of Speeds: 17
Number of Tool Stations: 12
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
