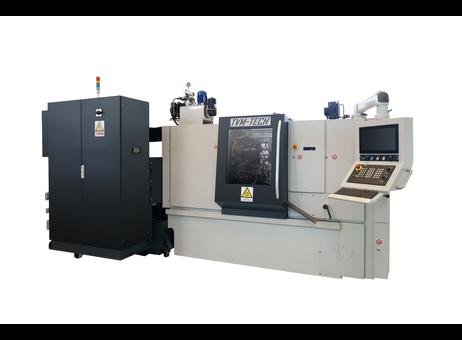

GILDEMEISTER GM20 Multispindle автоматичний токар

GILDEMEISTER GM20 Multispindle automatic lathe
Make an offer
GILDEMEISTER
GM20 CNC
2025
Italy
Lathes - CNC multi-spindle lathes
P250505240
+39 3 47…
Nbr of spindles
6
Type of CNC
new
visible
31/03/2026

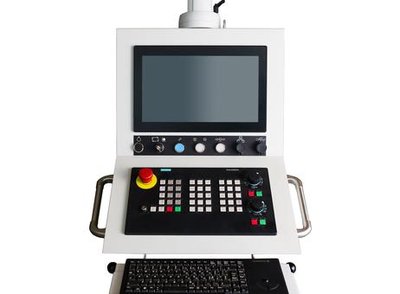

The GILDEMEISTER GM20 CNC is a multispindle automatic lathe designed for high-precision industrial applications. Manufactured in 2025, this CNC machine features six spindles, enabling efficient simultaneous machining operations. It is equipped with a Siemens operator panel that allows easy adjustment of spindle speeds, cycle times, and threading speeds, enhancing control and flexibility during production. This lathe is capable of handling workpieces up to 25 mm in diameter with high precision. It supports mounting of NC slides, with position 6 comprising a cutting slide and an NC pick-up slide. The NC pick-up spindle offers variable speed with synchronization and stop functions, and it can be programmed to function as a C-axis, providing additional machining versatility. Technical specifications include a maximum round bar diameter of 20 to 25 mm, a maximum square bar diameter of 17 mm, and a bar feeder length of 100 to 125 mm. The machine has various stroke lengths for different slides and spindles, such as an 86 mm front spindle stroke, 50 mm longitudinal guide block stroke, and CNC cutting stroke of 42 mm. Spindle speeds range continuously from 420 to 5,000 rpm, powered by a main drive of 11 kW or 15 kW for the CNC version. The installation footprint is approximately 4,000 x 1,900 mm, and the machine weighs around 5,500 kg. The lathe includes an enclosure and a control panel featuring a screen, buttons, and keyboard for operator interaction. The machine appears clean and well-maintained externally and includes visible safety warning labels on the enclosure doors, ensuring compliance with safety standards. Overall, the GILDEMEISTER GM20 CNC multispindle lathe is suited for specialized industrial sectors requiring precision and accuracy in machining small to medium-sized components. Gildemeister 20ACN allows, always via SIEMENS operator panel, to easily set and modify

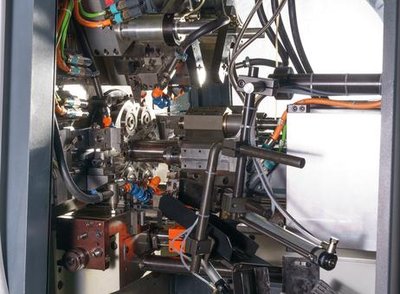

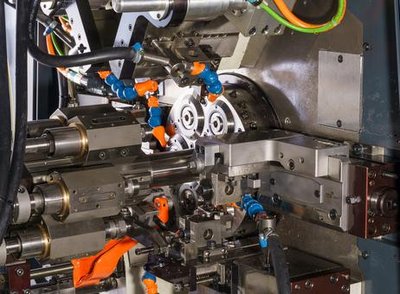

spindle revolutions, cycle time and threading speed. It is able to work pieces with dimensions up to 25 mm with the same ease and precision. It offers the possibility of mounting NC slides. Position 6 is composed of: cutting slide and NC pick-up slide, NC pick-up spindle with variable speed,
with synchronization and stop. The NC pick-up spindle, specifically programmed, has the possibility of becoming a C-axis. Technical data:
• Max. round bar diameter mm 20 / 25
• Max. bar diameter square mm 17
• Bar feeder mm 100 / 125
• Front spindle stroke mm 86
• Longitudinal guide block stroke mm 50
• Radial slide stroke mm 42 / CNC 50
• Axial slide stroke mm 50 / CNC 56
• CNC cutting stroke mm 42
• CNC recovery slide stroke mm 42
• CNC recovery spindle stroke mm 100
• Continuous spindle speed rpm 420 - 5,000
• Rapid traverse times s 0.5 - 0.7
• Main drive power 11 kW / CNC 15 kW
• Installation surface without bar guides mm 4,000 x 1,900
• Net weight kg 5,500
The Gildemeister 20AC, on the other hand, is a multi-spindle lathe that is aimed at highly specialized industrial sectors, where precision and accuracy are essential. Machinery manufacturer
