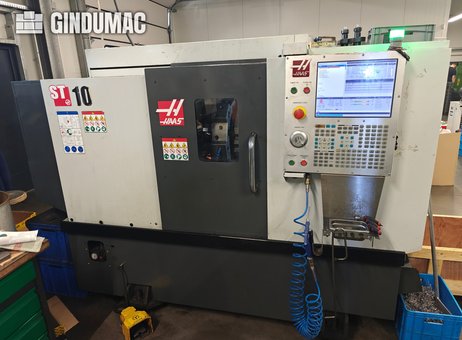

HAAS ST-10 CNC lathe
34.00 €
Договірна
| Стан | gebraucht |
|---|---|
| Виробник | Haas |
| Рік виробництва | 2019 |
| Manufacturer | HAAS |
| Model | ST-10 |
| Year | 2019 |
| Location | Poland |
| Category | Lathes - CNC lathes |
| Turning length | mm |
| Turning Ø | mm |
| Ø above the bed | mm |
| Ø above transversing slide | mm |
| Length between centers | mm |
| X-axis | mm |
| Z-axis | mm |
| Max workpiece weight | kg |
| Spindle bore | mm |
| Turning speed | 3400 rpm |
| Spindle motor power | kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 3200.0 × 1780.0 × 2060.0 |
| Weight | 3600 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Haas ST-10 |
| Last availability date | 06/10/2026 |
| Product id | P2610061175 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |
| Type of CNC | Lathe CNC |
| Number of turrets | 1 |
| Number of rotating tools | 10 |
| Spindle taper | A2-6 |
| Number of tools on turret | 10 |
Опис
Horizontal turning machine manufactured in 2019. This HAAS ST-10 features a maximum turning diameter of 229 mm and a maximum turning length of 355 mm. It includes a spindle power of 11.2 kW and a maximum spindle speed of 6,000 rpm. If you are looking to get high-quality turning capabilities, consider the HAAS ST-10 machine we have for sale. Contact us for further details.Main spindle
Spindle nose: A2-5
Max bar capacity: 44 mm
Max turning diameter: 229 mm
Max turning length: 355 mm
Max swing over bed: 413 mm
Turret and axis travels
Number of tool positions: 12
Tailstock
Type: Manual
Quill taper: MT3
Tailstock travel: 508 mm
Quill travel: 95 mm
Electrical supply
Voltage: 440 V (per machine nameplate)
Phases: 3

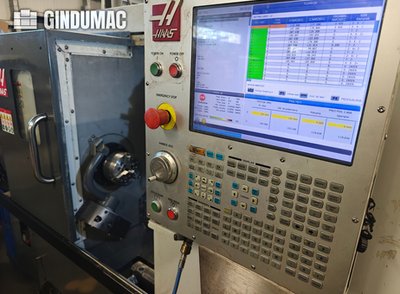

Control Brand: HAAS
Control Model: NGC
Counter Spindle: no
Driven Tools: no
Machine Height: 2060 mm
Machine Length: 3200 mm
Machine Weight: 3600 kg
Machine Width: 1780 mm
Number of Axes: 2
Tool Stations: 12
Spindle Power: 11.2 kW
Spindle Speed: 6000 RPM
Taper Size: VDI 40
X-axis Travel: 200 mm
Z-axis Travel: 406 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Spindle nose: A2-5
Max bar capacity: 44 mm
Max turning diameter: 229 mm
Max turning length: 355 mm
Max swing over bed: 413 mm
Turret and axis travels
Number of tool positions: 12
Tailstock
Type: Manual
Quill taper: MT3
Tailstock travel: 508 mm
Quill travel: 95 mm
Electrical supply
Voltage: 440 V (per machine nameplate)
Phases: 3
Control Brand: HAAS
Control Model: NGC
Counter Spindle: no
Driven Tools: no
Machine Height: 2060 mm
Machine Length: 3200 mm
Machine Weight: 3600 kg
Machine Width: 1780 mm
Number of Axes: 2
Tool Stations: 12
Spindle Power: 11.2 kW
Spindle Speed: 6000 RPM
Taper Size: VDI 40
X-axis Travel: 200 mm
Z-axis Travel: 406 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
