Hurco TMX8MYS CNC lathe
34.00 €
Договірна
| Стан | gebraucht |
|---|---|
| Виробник | Hurco |
| Рік виробництва | 2014 |
| Manufacturer | Hurco |
| Model | TMX8MYS |
| Year | 2014 |
| Location | Germany |
| Category | Lathes - CNC lathes |
| Turning length | 720 mm |
| Turning Ø | 450 mm |
| Ø above the bed | 405 mm |
| Ø above transversing slide | 230 mm |
| Length between centers | 403 mm |
| X-axis | 230 mm |
| Z-axis | 560 mm |
| Max workpiece weight | kg |
| Spindle bore | 254 mm |
| Turning speed | 3000 rpm |
| Spindle motor power | 22.37136 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | - × - × - |
| Weight | kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Hurco TMX8MYS |
| Last availability date | 05/10/2026 |
| Product id | P261001166 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |
| Type of CNC | HURCO MAX |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle taper | asa 8 |
| Number of tools on turret | 12 |
Опис

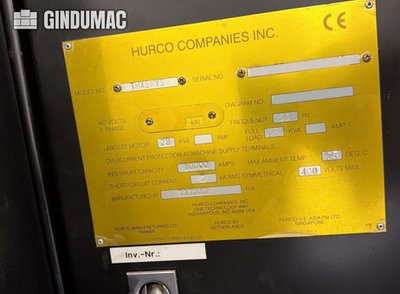

This 4-axis Hurco TMX8MYS was manufactured in 2014. It features a tool turret and includes a main spindle chuck, sub-spindle chuck, and parts catcher. With a robust design, this turn-mill centre is ideal for complex machining tasks. If you are looking to get high-quality turning and milling capabilities, consider the Hurco TMX8MYS turn-mill centre we have for sale. Contact us for further details.- AC Voltage: 400 V (3 Phase)
- Frequency: 50 Hz
- Full Load: 53 KVA
- Largest Motor: 28 KVA
- Interrupt Capacity: 10000 AMPS
- Short Circuit Current: 5 kA RMS Symmetrical
- Max Ambient Temp: 35 DEG. C
- Max Volts: 400 V
-

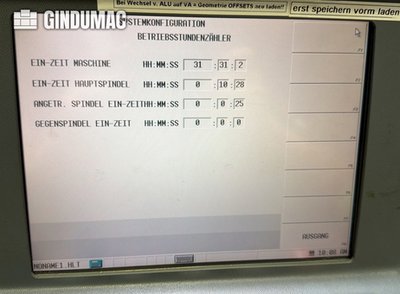

- Machine Power-On Time: 31h : 31m : 2s
- Main Spindle Operating Time: 0h : 10m : 28s
- Driven Spindle Operating Time: 0h : 0m : 25s
- Counter Spindle Operating Time: 0h : 0m : 0s

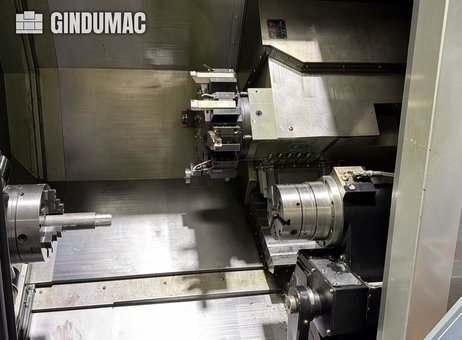

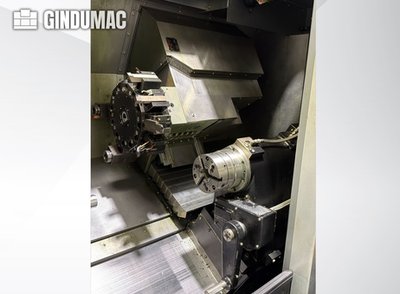

- Additional Equipment: Tool turret, main spindle chuck, sub-spindle chuck, parts catcher, driven tools
Counter Spindle: yes
Driven Tools: yes
Number of Axes: 4
X-axis Travel: 285 mm
Z-axis Travel: 560 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
- Frequency: 50 Hz
- Full Load: 53 KVA
- Largest Motor: 28 KVA
- Interrupt Capacity: 10000 AMPS
- Short Circuit Current: 5 kA RMS Symmetrical
- Max Ambient Temp: 35 DEG. C
- Max Volts: 400 V
-
- Machine Power-On Time: 31h : 31m : 2s
- Main Spindle Operating Time: 0h : 10m : 28s
- Driven Spindle Operating Time: 0h : 0m : 25s
- Counter Spindle Operating Time: 0h : 0m : 0s
- Additional Equipment: Tool turret, main spindle chuck, sub-spindle chuck, parts catcher, driven tools
Counter Spindle: yes
Driven Tools: yes
Number of Axes: 4
X-axis Travel: 285 mm
Z-axis Travel: 560 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
