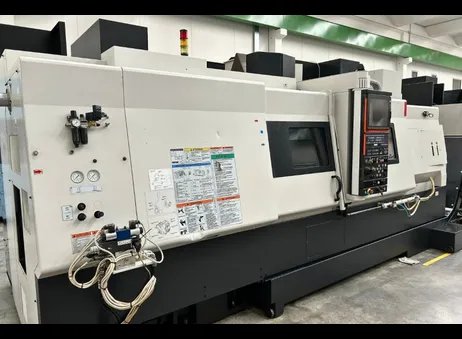

MAZAK INTEGREX 200 IV ST ЧПУ верстат

MAZAK INTEGREX 200 IV ST CNC lathe
Verified seller
Price on request
Make an offer
Manufacturer
MAZAK
Model
INTEGREX 200 IV ST
Year
2007
Location
Italy
Category
Lathes - CNC lathes
Product id
P260401076
Buy this machine
Language
Language
CNC струг MAZAK INTEGREX 200 IV ST
CNC soustruh MAZAK INTEGREX 200 IV ST
MAZAK INTEGREX 200 IV ST CNC-drejebænk
MAZAK INTEGREX 200 IV ST CNC-Drehmaschine
Τόρνος CNC MAZAK INTEGREX 200 IV ST
MAZAK INTEGREX 200 IV ST CNC lathe
Torno CNC MAZAK INTEGREX 200 IV ST
Tour CNC MAZAK INTEGREX 200 IV ST
CNC tokarski stroj MAZAK INTEGREX 200 IV ST
MAZAK INTEGREX 200 IV ST CNC esztergagép
Tornio CNC MAZAK INTEGREX 200 IV ST
MAZAK INTEGREX 200 IV ST CNC tekinimo staklės
MAZAK INTEGREX 200 IV ST CNC-draaibank
Tokarka CNC MAZAK INTEGREX 200 IV ST
Torno CNC MAZAK INTEGREX 200 IV ST
Strung CNC MAZAK INTEGREX 200 IV ST
MAZAK INTEGREX 200 IV ST Токарный станок с ЧПУ
CNC strug MAZAK INTEGREX 200 IV ST
MAZAK INTEGREX 200 IV ST CNC-svarv
CNC torna MAZAK INTEGREX 200 IV ST
Get price & details
+39 335 …
Show phone
Details
About this seller
Specifications
Turning length
1495 mm
Turning Ø
660 mm
Ø above the bed
760 mm
Length between centers
1000 mm
Type of CNC
X-axis
580 mm
Z-axis
1545 mm
Max workpiece weight
299.5 kg
Spindle taper
Spindle bore
254 mm
Number of turrets
1
Number of tools on turret
9
Turning speed
5000 rpm
Spindle motor power
22 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
5090.0
× 3270.0
× 2830.0
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Mazak INTEGREX 200 IV S
Last availability date
25/04/2026
Show more
Seller's description
YEAR 2007
CODE 25U9083
MAXIMUM ROTATING DIAMETER 660 mm
MAXIMUM TURNING LENGTH 1495 mm
MAXIMUM TURNING DIAMETER 660 mm
BAR THROAT 65 - 65 mm
SPINDLE 35-5000 rpm; 22 kW; 254 mm
COUNTERSPINDLE 35-5000 rpm; 18.5 kW; 254 mm

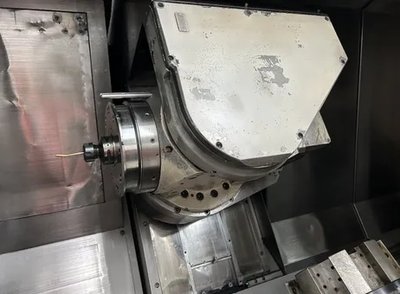

C6 TILTING HEAD ; -30°+195° ; 15-12000 rpm; 18.5 kW
X-AXIS TRAVEL 580 mm
X2-AXIS TRAVEL 150 mm
Y-AXIS TRAVEL 160 mm
Z-AXIS TRAVEL 1545 mm
Z2-AXIS TRAVEL 1490 mm
B-AXIS TRAVEL 1550 mm
RAPID FEEDS X-Y-Z 38 - 26 - 38 m/min
9-POSITION TOOL TURRET
CHAIN-TYPE TOOL MAGAZINE ; 80 POSITIONS
HIGH PRESSURE 18 Bar
MAZATROL MATRIX CONTROL
WEIGHT 11,800 kg
OVERALL DIMENSIONS 5,090 x 3,270 x 2,830 mm
ACCESSORIES CHIP CONVEYOR ;
PAPER FILTER ;
TOOL PRESETTING
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
