Мазак QUICK TURN 200MA L CNC токар

Mazak QUICK TURN 200MA L CNC lathe
Top seller
Make an offer
Mazak
QUICK TURN 200MA L
2018
Italy
Lathes - CNC lathes
P260316127
+34 679 …
Turning length
535 mm
Turning Ø
360 mm
Ø above the bed
360 mm
Ø above transversing slide
254 mm
Length between centers
1000 mm
Type of CNC
MAZATROL Smooth C
X-axis
225 mm
Z-axis
605 mm
Max workpiece weight
50 kg
Spindle taper
A26
Spindle bore
76 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
6
Turning speed
5000 rpm
Spindle motor power
14.9 kW
Tailstock
no
Bar feeder
no
Weight
4950 kg
as-is, where-is
Datasheet
Mazak Quick Turn 20
25/04/2026

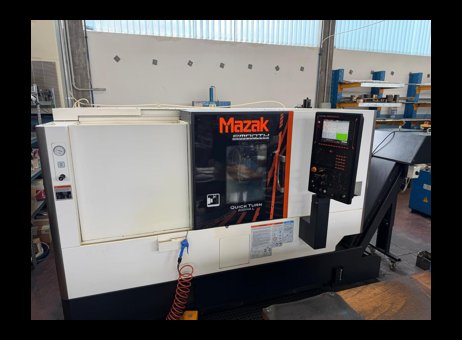

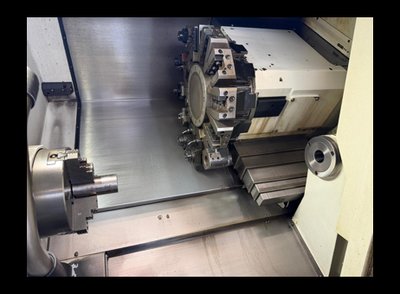

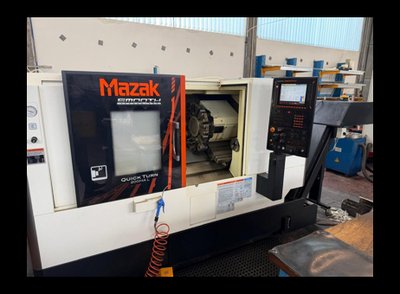

For sale is a Mazak QUICK TURN 200MA L CNC lathe, manufactured in 2018. This lathe is a robust machine, weighing approximately 4950 kg, designed for precision turning operations. It accommodates a maximum workpiece diameter of 360 mm and a turning length of up to 535 mm, making it suitable for medium-sized machining tasks. The spindle bore measures 76 mm, and the machine features a spindle speed capability of up to 5000 RPM, allowing for versatile machining speeds. The lathe is equipped with a 12-position turret compatible with VDI tooling, enabling efficient tool changes and complex machining processes. It includes a counter spindle and driven tools, enhancing its functionality for diverse turning applications. The X-axis travel is 225 mm, while the Z-axis travel extends to 605 mm, providing ample movement range for various workpieces. Control is managed via the MAZATROL Smooth C system, a user-friendly interface known for its reliability and precision. The machine's spindle nose is designated as A2-6, a common standard for lathe spindles. The machine features an enclosed work area with a door branded with the Mazak and Quick Turn model names. The control panel, located on the right side, includes a screen and multiple buttons for operation. Visual inspection shows the exterior and interior work areas to be clean and well-maintained, with no visible damage or heavy wear. The turret and chuck are visible inside the machine, confirming the presence of multiple tool holders and a chuck mounted on the spindle. Additional components include a coolant or lubrication system on the right side and a chip conveyor system for efficient chip removal. External panels and mechanical components appear intact and in good condition, indicating the machine has been cared for. This Mazak QUICK TURN 200MA L CNC lathe is a comprehensive solution for precision turning tasks in various industrial settings. For sale: Mazak QUICK TURN 200MA L CNC lathe
Manufacturer: Mazak
Model: QUICK TURN 200MA L
Year of Manufacture: 2018
Technical Condition: As-is, where-is
Machine Weight: 4950 kg
Max Workpiece Diameter: Ø 360 mm
Max Workpiece Length: 535 mm
Max Bar Capacity: Ø 65 mm
Spindle Nose: A2-6
Spindle Bore: Ø 76 mm
Turret Tool Station: 12 VDI positions
Counter Spindle: Yes
Driven Tools: Yes
Spindle Speed: 5000 RPM
X-axis Travel: 225 mm
Z-axis Travel: 605 mm
Control Brand: MAZATROL
Control Model: Smooth C
This machine offers high-quality turning capabilities, making it an excellent choice for your machining needs. 2019
